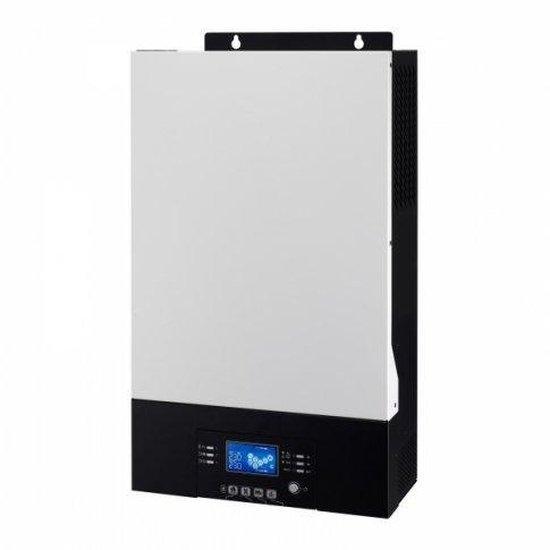

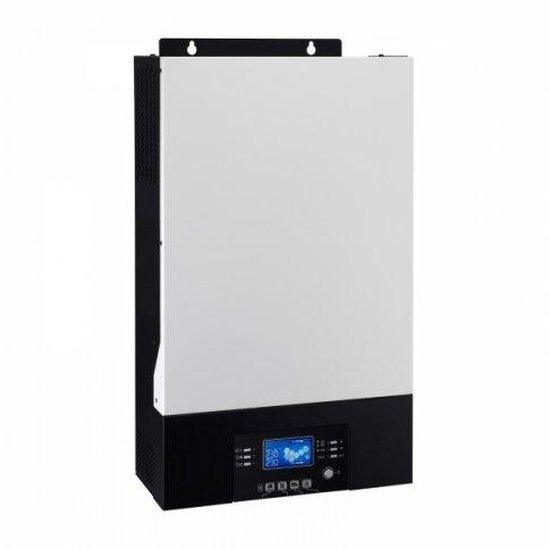

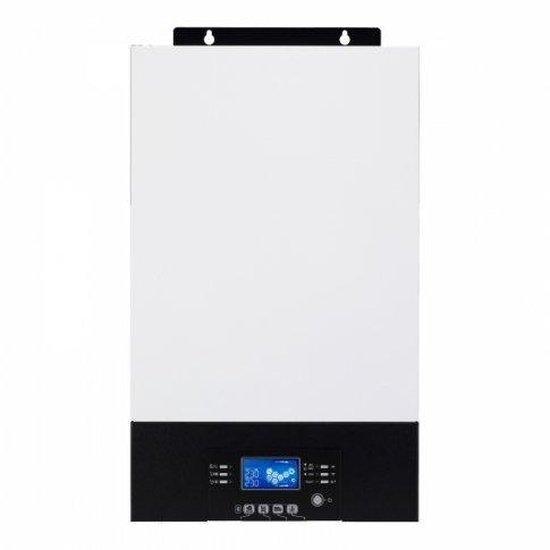

The Iconica 5000W 48 V hybrid inverter combines a 5.0 kW pure sine wave inverter, 80 A MPPT solar controller and 60 A smart battery charger with zero transfer time and the ability to power AC loads directly from solar without a battery.

• 5000W 48 V pure sine wave inverter: converts DC to 230 V AC (220–240 V); continuous 5000W (5.0 kW) / 5000 VA with 10000 VA peak for motor starts.
• Inbuilt 80 A MPPT Solar charge controller: the high-efficiency MPPT controller regulates the input from solar panels; supports up to 4000W solar input and direct AC load supply without a battery.
• Enhanced 60 A Smart battery charger: designed to enable safe, efficient and fast (up to 60 A) unattended charging of a battery bank with multiple battery charging priority options.
• Zero transfer UPS and generator auto-start: instant 0 ms transfer from mains to battery/solar when mains is interrupted; generator auto-start via dry contacts and auto-restart after overload/overheat.
• System expansion potential: the inverter has the ability to be connected in parallel with additional identical units for higher output and redundancy.

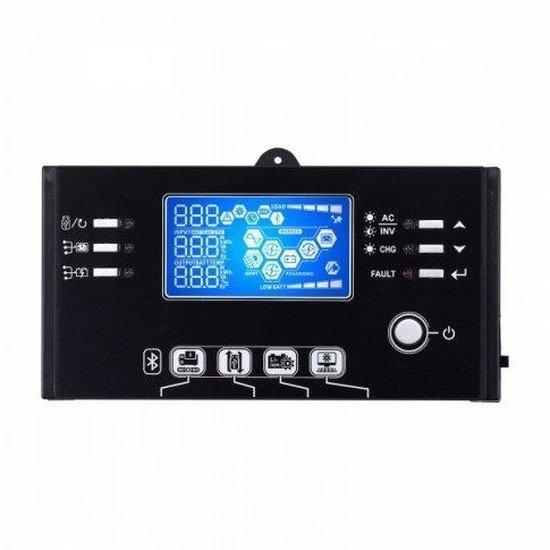

• Inbuilt Bluetooth connectivity and advanced communications: integrated Bluetooth for remote monitoring, illuminated removable LCD screen displays status, input/output voltage, frequency, battery voltage, load power etc.; supplied with USB drive for firmware updates (On‑the‑Go).
• Additional intelligent features: load power without a battery capability; output source priority and battery charging priority settings; comprehensive protections and a wide selection of highly customisable parameters.
• Compatibility & diagnostics: suitable for 48 V flooded and sealed GEL/AGM lead‑acid batteries; provides detailed telemetry (solar/battery/AC voltage, charging current, battery capacity) and includes a table of typical appliance consumption.

Please refer to the technical manual for full specifications, installation guidance and to confirm suitability for your application.
