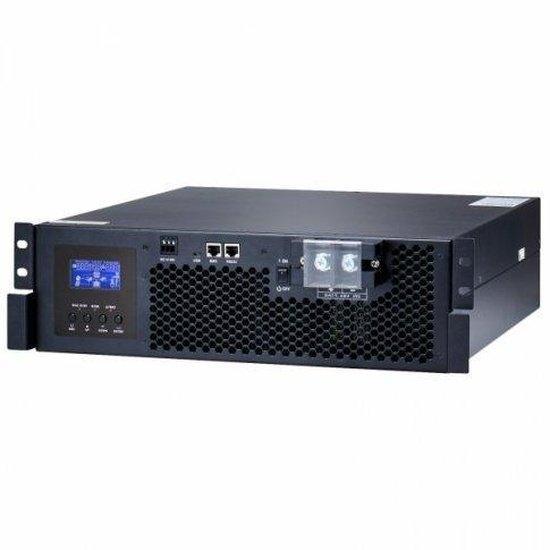

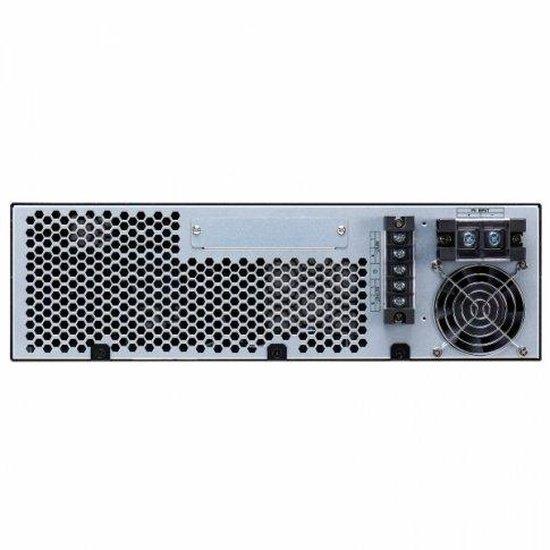

The Iconica IC-ZTR5000-48 is an all-in-one hybrid inverter that combines a 5000W pure sine wave inverter, an 80A MPPT solar charge controller, and a 60A smart mains charger in a compact, rack-compatible chassis. It delivers uninterrupted power thanks to 0 ms UPS transfer time, ideal for sensitive electronics in off-grid, backup, marine or RV systems.
Key Features
- 5000W / 5000VA Pure Sine Output with 10,000VA surge for starting motors and tools.
- 80A MPPT Solar Controller (up to 4000W PV, 60–115V MPPT range, 98% max efficiency).
- 60A Smart AC Charger with multi-stage charging and over-charge protection.
- UPS Zero Transfer (0 ms) — seamless switchover keeps IT loads online.
- Rack-compatible design for tidy installs with battery modules.
- Parallel & 3-Phase Ready — scale to 9 units (up to 45 kW) including 3-phase.
- Inbuilt Wi-Fi for Watchpower app monitoring (iOS/Android) and PC software via USB/RS.
- Customisable menus — charging priorities, voltage thresholds, power source priority, alarms, eco modes and more.
Battery Compatibility
Supports 48V lead-acid (GEL/AGM/flooded) and LiFePO4 lithium batteries. Direct BMS communication via RJ45 (RS485/CAN) for:
- Pylontech (PYL)
- WECO (WEC)
- Soltaro (SOL)
- BAK
Other lithium batteries can be used in USER mode with manual charge/discharge settings. For plug-and-play BMS comms, we recommend Pylontech or WECO.
Specifications
| Nominal Battery Voltage | 48 V |
|---|---|
| Continuous Power | 5000 W / 5000 VA (pure sine, 220–240 V AC) |
| Surge Power | 10,000 VA |
| Output Frequency | 50 / 60 Hz |
| PV Power (max) | 4000 W |
| PV Voltage | 60–145 V (MPPT 60–115 V) |
| Solar Charge Current | Up to 80 A |
| AC Charge Current | Up to 60 A |
| Combined Charge Current | Up to 140 A |
| Inverter Peak Efficiency | 93% |
| Charger Max Efficiency | 98% |
| UPS Transfer Time | 0 ms (zero transfer) |
| Dimensions (W × H × D) | 438 × 466.3 × 130.8 mm |
| Weight | 15 kg |
| Operating Temperature | 0°C to 55°C |
| Comms | Wi-Fi app, USB/PC software, RJ45 (RS232/RS485/CAN for BMS) |
Intelligent Functions
- Output source priority (solar / battery / mains / generator).
- Battery charging priority (solar only, solar+mains, mains only).
- User-definable voltages (bulk/absorb/float, cut-offs, equalisation), alarms and power-saving modes.
- Generator auto-start via dry contacts when battery low.
- Data logging and export via PC software; USB On-The-Go for data upload/download.
What’s in the Box
- Iconica IC-ZTR5000-48 Hybrid Inverter
- PC connection cable & Watchpower software
- User manual
- Inbuilt Wi-Fi module
Why Choose the IC-ZTR5000-48?
- Seamless backup with 0 ms transfer to protect critical loads.
- Scalable — parallel up to 9 units and support 3-phase systems.
- Lithium-ready with native BMS comms for leading brands.
- Remote monitoring via app and PC for full visibility.
- Proven platform built on a trusted Voltronic Power OEM design.
