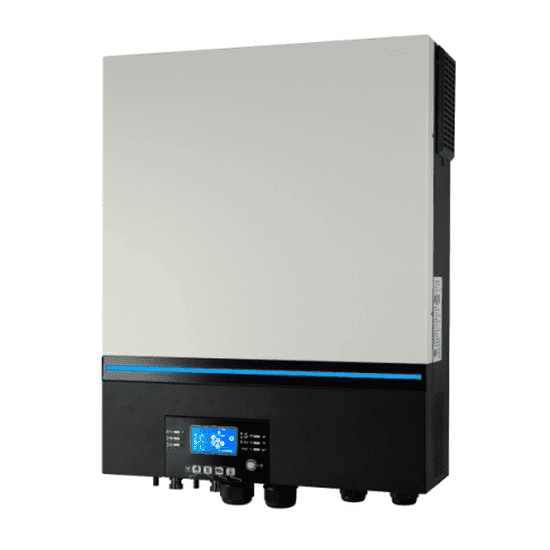

ICONICA 6000W 48V Hybrid Inverter 140A MPPT & Wi‑Fi | 4Boats

The ICONICA 6000W 48 V hybrid inverter combines a 48 V pure sine inverter, 140 A MPPT solar controller and 120 A smart charger with UPS‑grade 0 ms transfer and built‑in Wi‑Fi for remote monitoring.

• Designed to keep you running during frequent power cuts — ideal for remote properties, boats and off‑grid sites.
• Inverter: continuous 6,000W (6,000 VA) output for 220–240 V AC (50–60Hz), pure sine wave; 12,000 VA surge capacity; nominal battery voltage 48 V.
• Inbuilt 140 A MPPT solar charge controller: high‑efficiency MPPT regulation supporting up to 7,000W solar input to maximise harvest.
• Enhanced 120 A smart battery charger: multi‑stage charging up to 120 A for safe, efficient unattended battery replenishment.
• UPS zero transfer time: instant 0 ms transfer from mains to battery for uninterrupted operation during mains failures.
• System expansion: parallel capability for increased capacity by connecting additional units to scale larger installs.
• Communications and monitoring: integrated Wi‑Fi for remote access, illuminated removable LCD with up/down keys, and OTG USB drive for system data export. Monitor solar/battery/AC voltages, charging current, battery capacity and other system parameters.
• Intelligent functions: output source priority, multiple battery charging priority options, extensive configurable settings, generator auto‑start via dry contacts, and auto‑restart after overload/overheat events.
• Protections: built‑in safeguards against overload, short circuit, over‑temperature, reverse polarity and low battery (see datasheet for full protection list).
• Compatibility and care: suitable for 48 V flooded, sealed, GEL and AGM battery banks; consult the technical datasheet regarding lithium battery compatibility. Professional installation recommended to ensure correct earthing, cable sizing and parallel/generator auto‑start configuration.
