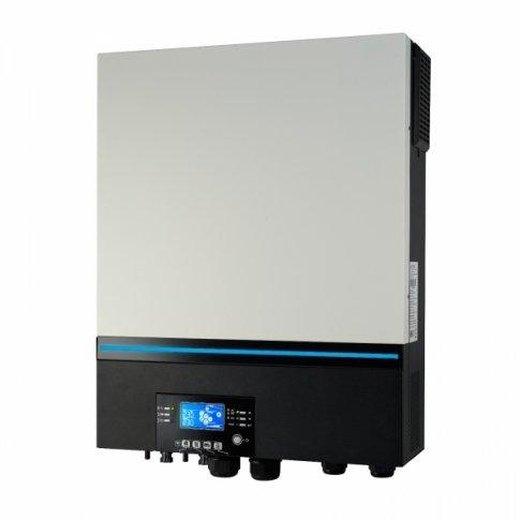

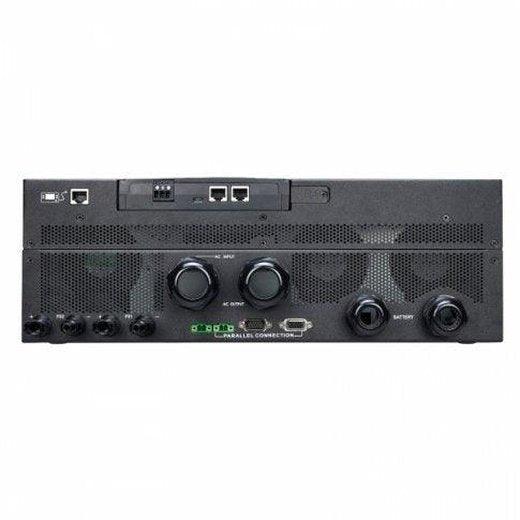

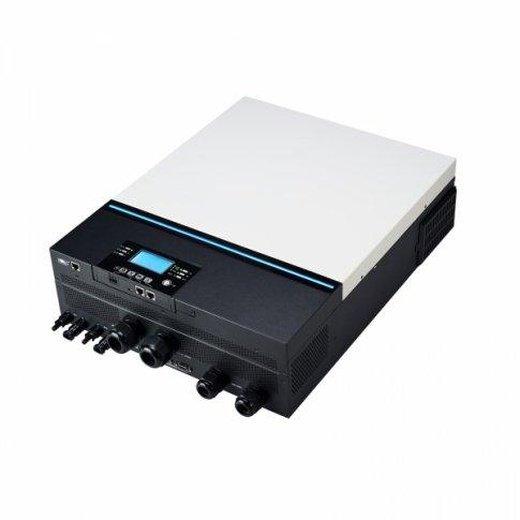

Iconica MAX 8000W 48V Hybrid Inverter Charger, 80A MPPT | 4Boats

The Iconica MAX 8000W 48 V hybrid inverter combines an 8 kW pure sine inverter, an 80 A MPPT solar controller with two inputs and a powerful 120 A smart battery charger in one portable UPS-capable unit that can run AC loads directly from solar.

• 8000W 48 V pure sine inverter: converts DC to 230 V AC (220–240 V AC) delivering 8,000W continuous with a 16,000 VA peak for motor-start loads.
• High solar input MPPT controller: two independent solar inputs, each accepting up to 4,000W (total up to 8,000W solar); MPPT charges batteries at up to 80 A.
• Enhanced 120 A smart battery charger: safe, efficient multi-stage charging up to 120 A for unattended rapid recharge.
• System expansion potential: parallelable with additional identical units to increase capacity and redundancy.
• Power without a battery: can supply AC loads directly from solar panels when conditions allow, reducing reliance on stored energy.
• Output and charging priorities: programmable output source priority and multiple battery charging priority options to suit diverse installations.
• Customisable controls and indicators: illuminated removable LCD screen (status, mode, voltages, frequency, battery level, load) plus programmable RGB light bar for at-a-glance status.
• Advanced communications & protection: supplied PC connection cable and software for data logging; auto-restart on fault, generator auto-start via dry contacts, intelligent predictive-fan cooling and comprehensive safety protections.
• Inverter specifications: Nominal battery voltage: 48 V. Continuous power output: 8000W/8000 VA (220–240 V AC).

Compatibility: suitable for 48 V flooded, sealed GEL/AGM lead‑acid battery banks; consult the datasheet for detailed appliance consumption tables and guidance on lithium battery compatibility and installation best practice.
