Lofrans Lion

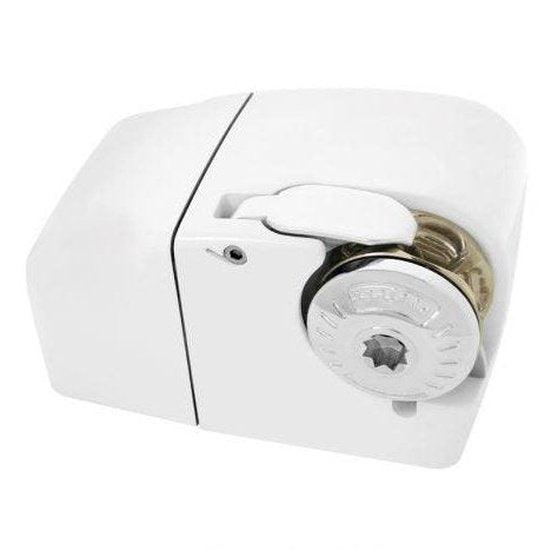

Lofrans Lion 1000 horizontal low-profile windlass for 8 mm chain & 10–12 mm rope. Spring-loaded arm, manual chain release; automatic free-fall available as an option.

• Motor: 700 W; max pull 575 kg.
• Supply: 12 V DC.
• Chain: 8 mm (ISO 4565 / DIN 766).
• Rope: 10–12 mm, 3-strand.
• Speed: 23 m/min at working load (26 m/min max).
• Protection: IP66 motor.

Lofrans Lion

• Control box included.
• Unit prepared for installation.
• Chain-counter magnet pre-set.
