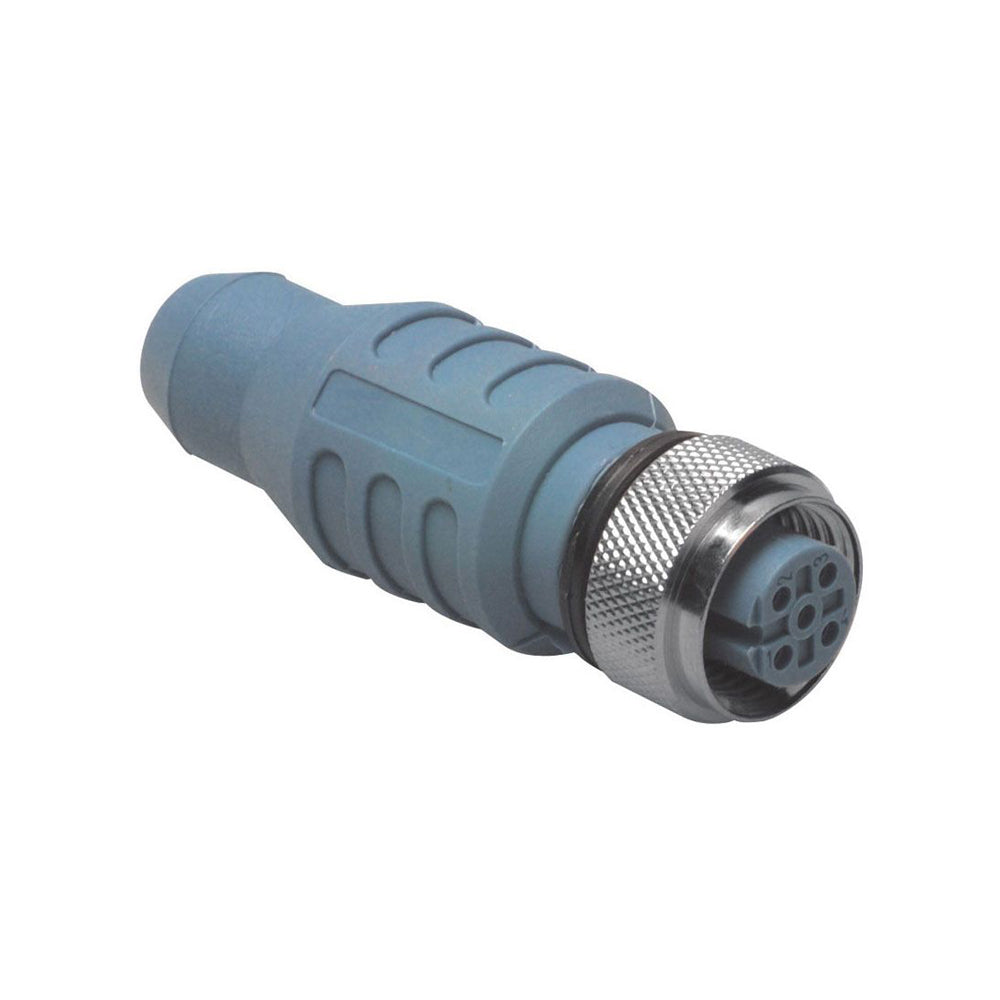

Maretron Micro Micro Micro Termination Resistor (Female) | 4Boats

The Maretron Micro termination resistor (female) provides a reliable 120 Ω inline termination for NMEA 2000 micro networks where connector gender is reversed.

• Resistance: 120 Ω CAN/NMEA 2000 termination
• Gender: Female – for reversed-pin or device-end connections
• Type: Inline micro terminator for micro cable
• Application: Terminate trunk at a product (e.g. mast-top GPS or weather station)
• Placement: Use one on each end of the trunk; two termination resistors required per network
• Compatibility: Designed for Maretron Micro connectors and NMEA 2000 micro cable
• Function: Ensures proper CAN bus impedance and network stability

Use this female terminator when the standard male pin orientation is unsuitable or when terminating the network at an inline device; install one at each trunk end to maintain correct bus termination.
