Off-Grid Lighting Photonic Universe Off-Grid 12V Lighting Kit | 4Boats

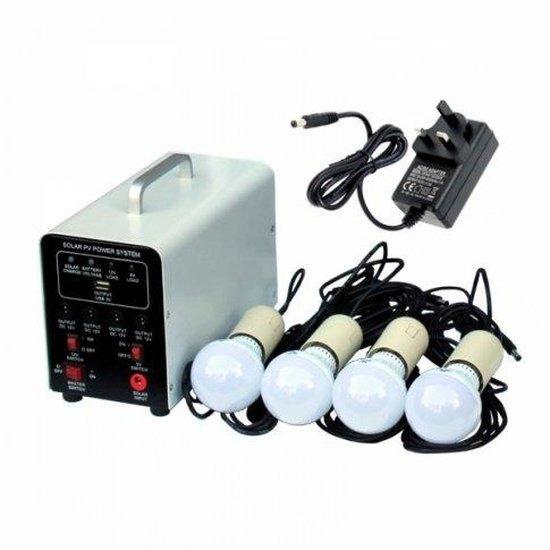

Photonic Universe Off-Grid Lighting 12 V kit: a compact, plug-and-play 12 V off-grid lighting system ideal for sheds, outhouses, stables, caravans, camping and yurts.

• System is very convenient to use and install: the mains adaptor cable plugs directly into the solar input of the lighting kit for simple charging and backup.
• System voltage: 12 V. Battery capacity: 18 Ah lithium with built-in automatic charge controller to prevent overcharging.
• Four 12 V LED lights, 5W each — continuous runtime approximately 9–10 hours with all four lights, or roughly twice as long with only two lights connected.
• Length of LED lights cables: 5 m (16.4 ft); each LED has an On/Off switch and quick-connect leads for fast installation.
• USB output current: 0.8 A (5 V USB port) for phone charging. Max DC output current: 3 A.
• Control unit case size: 220 x 130 x 150 mm; Control unit case weight: 6.86 kg (15.12 lb). Max solar input power: 100W. Solar input voltage: 18–25 V.
• Mains adaptor specifications: Input voltage 100–240 V AC, 50/60Hz. Output voltage 16.8 V DC, Output current 3 A. Cable length: 1.1 m (3.6 ft).
• Plug-and-play connections: mains adaptor plugs to the solar input; solar panel adapter cable has two standard MC4 connectors for secure panel connection.
• Following documents are available to download: User manual for Photonic Universe 18 Ah Lithium lighting kit (SL-L18 AH). 1 year manufacturer warranty included.

Installation is very easy: connect the solar panel or mains adaptor to the charging socket on the front of the control box via the supplied adaptor. Ideal for portable and marine use; avoid prolonged water immersion and follow the user manual for safe battery and panel handling.
