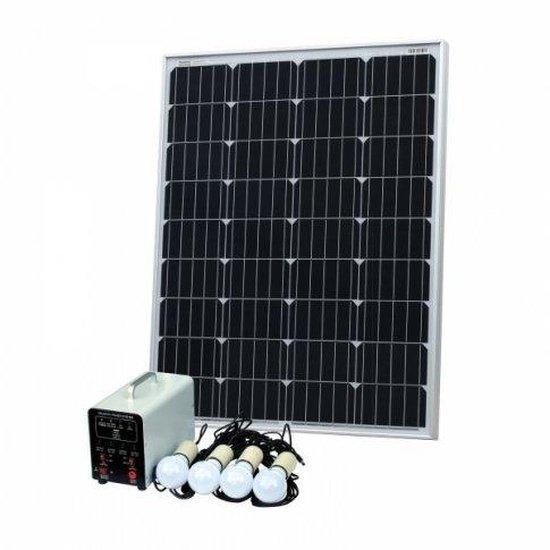

Off-Grid Solar Photonic Universe 100W Off-Grid Lighting Kit w | 4Boats

Compact off-grid solar lighting kit for locations without mains power — ideal for sheds, outhouses, caravans, farms and camping. User manual available for the Photonic Universe 18 Ah Lithium lighting kit (SL-L18 AH).

• The system is very convenient to use and install: the solar panel adapter cable has two standard MC4 connectors for secure connection.
• System specifications: System voltage: 12 V; Battery capacity: 18 Ah; LED lights power: 5W (each); Length of LED lights cables: 5 m; USB output current: 0.8 A; Max DC output current: 3 A.
• Control unit case size: 220 x 130 x 150 mm; Control unit case weight: 6.86 kg (15.1 lb); Max solar input power: 100W; Solar input voltage: 18–25 V.
• LED set: 4 x 5W 12 V LED lights with 5 m cables and individual On/Off switches — battery provides approx. 9–10 hours with all four lights, or roughly double when only two lights are used.
• Solar panel specifications: Peak power: 100W; Maximum power voltage (Vmp): 20.2 V; Maximum power current (Imp): 4.95 A; Open circuit voltage (Voc): 23.9 V; Short circuit current (Isc): 5.26 A; Power allowance: ±3%.
• Solar panel dimensions: 845 x 670 x 30 mm; Weight: 7 kg (15.4 lb); 4 mounting holes: 9 x 11 mm; includes 2 x 5 m high-quality single-core solar cable 4.0 mm².
• Built-in automatic solar charge controller manages charging and prevents overcharge; unit accepts 18–25 V DC from a suitable panel or can be charged from mains using the SL-CH-3 A mains adapter (sold separately).
• Plug-and-play installation with quick-connect cables; position the panel for maximum sun exposure and secure mounting; ensure cable routing avoids chafe.

Care & compatibility: consult the user manual for installation and fuse recommendations. Mains adapter sold separately.
