Parallel Adapter for 50–100A MPPT | 4Boats

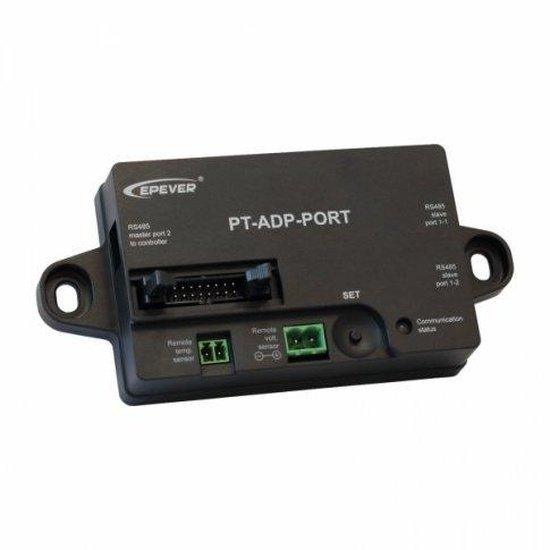

Photonic Universe Parallel Adapter allows up to six identical 50–100 A TR/PTR****AN MPPT solar charge controllers with independent solar arrays to be connected in parallel to the same battery bank for synchronised charging and balanced current sharing.

• Supports up to 6 TR/PTR****AN series MPPT controllers (50–100 A models) on a single battery bank; for use with independent solar arrays.
• Compatible with high-efficiency 50 A, 60 A, 80 A and 100 A MPPT charge controllers.
• Cable length: 1.9 m (6.23 ft).
• Connection: RJ45. Port baud rates: 9600 bps and 115200 bps (default 115200 bps).
• Self-consumption: 0.25 W.
• Enclosure rating: IP30.
• Dimensions: 151.5 x 69.9 x 38 mm (5.96 x 2.75 x 1.50 in). Weight: 39 g (1.38 oz).
• Mounting holes: 6.5 mm diameter (0.26 in); 133.4 mm (5.25 in) separation for easy installation.
• Includes a detailed user manual; additional documents and Solar Station Monitor PC software (Windows) are available to download. Requires optional RJ45-to-USB cable for direct PC monitoring and custom battery parameter setup.

For correct synchronisation ensure all controllers are identical models and firmware (see the user manual for minimum firmware version and update instructions). A limited warranty covers manufacturing defects; refer to the user manual or your supplier for warranty terms.
