Photonic Universe 100W 12V Dual-Battery Solar Kit for Camper & Boat

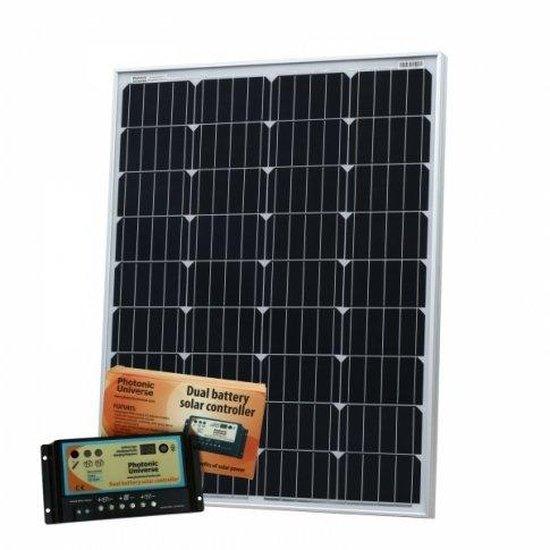

Complete essentials kit: a waterproof 100W 12 V monocrystalline panel with 10 A dual-battery charge controller and 2 x 5 m cables, ideal for campervans, motorhomes and boats.

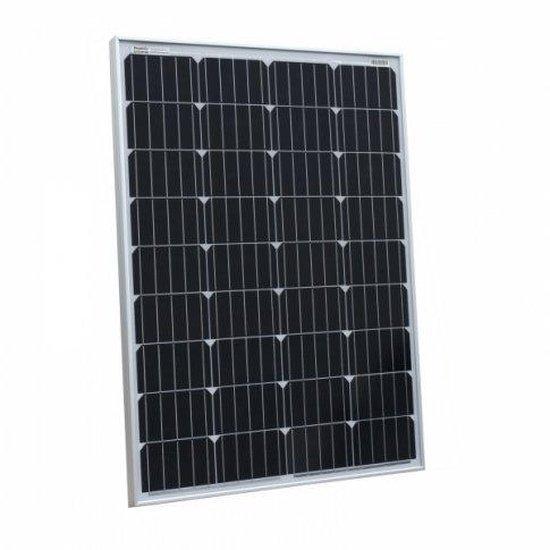

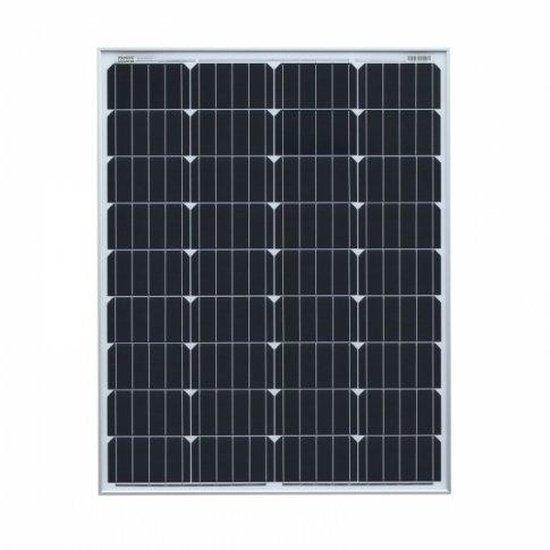

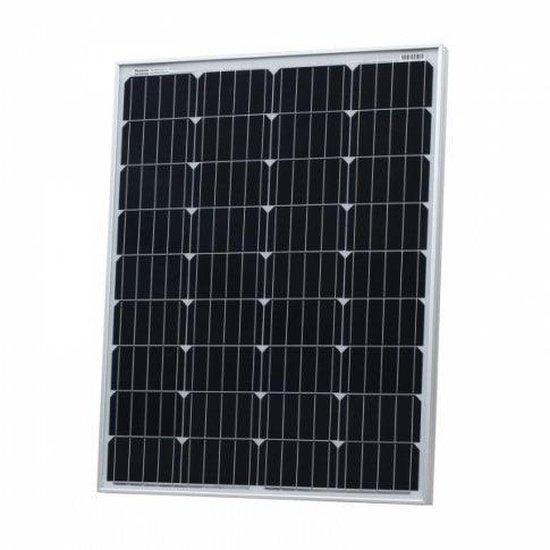

• High-efficiency waterproof 100W 12 V monocrystalline solar panel with 5-busbar cells — compact and suited to confined roof space.
• Solar panel specifications: Peak power 100W; maximum power voltage (Vmp) 20.2 V; maximum power current (Imp) 4.95 A; open-circuit voltage (Voc) 23.9 V; short-circuit current (Isc) 5.26 A; power tolerance ±3%.
• Physicals: Dimensions 845 x 670 x 30 mm (33.3 x 26.4 x 1.2 in); weight ≈ 7 kg (15.4 lb); 4 mounting holes 9 x 11 mm.

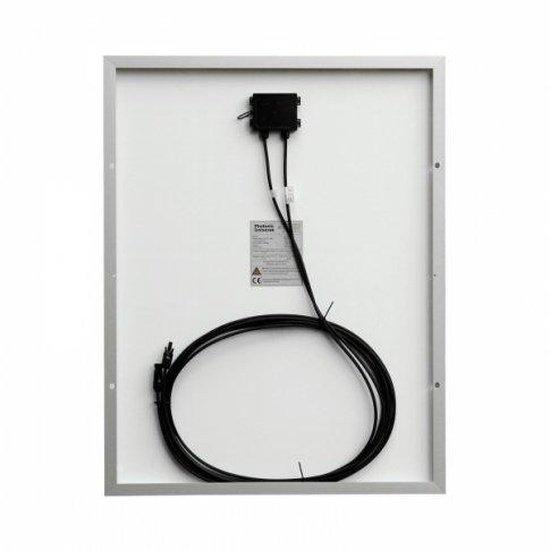

• Cables & connectors: Supplied with 2 x 5 m (16.4 ft) high-quality single-core solar cable rated for high roof temperatures, fitted with male/female MC4 connectors (connectors can be cut for screw-terminal wiring to a charge controller).

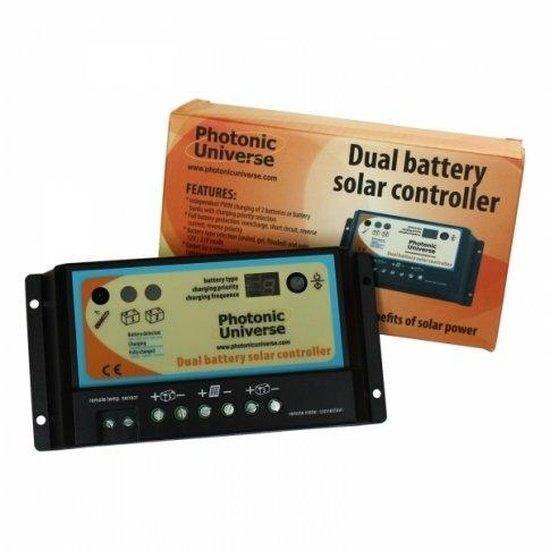

• 10 A solar charge controller: 10 A 12 V/24 V dual-battery PWM controller to charge and protect two batteries independently with automatic 12/24 V selection and configurable charging priority.
• Charge controller specifications: Fully automated operation; 3 pairs of terminals (PV, battery, load); self-consumption 4 mA at night, 10 mA when charging; working temperature -35°C to +55°C (-31°F to +131°F); terminals accept wire up to 4.0 mm² (12 AWG); size 15.5 x 7.6 x 4.0 cm (6.1 x 3.0 x 1.6 in); weight 185 g (0.41 lb); multiple mounting holes for easy installation.
• Built-in protections: overcharge and over-discharge protection, overload, short-circuit protection, and reverse polarity protection.
• Installation notes: Panel can be fitted to flat roofs using metal brackets, poles or adhesive pads; the MC4 cable allows easy connection to other panels or extension leads.
• Please note: this is an essentials kit and does not include mounting accessories or batteries; due to our warehouse arrangements the solar charge controller may be shipped separately.

Care & compatibility: Use appropriate cable sizes and in-line fusing. Check battery type and controller settings before first use; follow the Installation tab for wiring diagrams and safety guidance.
