Photonic Universe 120W 12V Mono Solar Panel, 2×5m MC4 | 4Boats

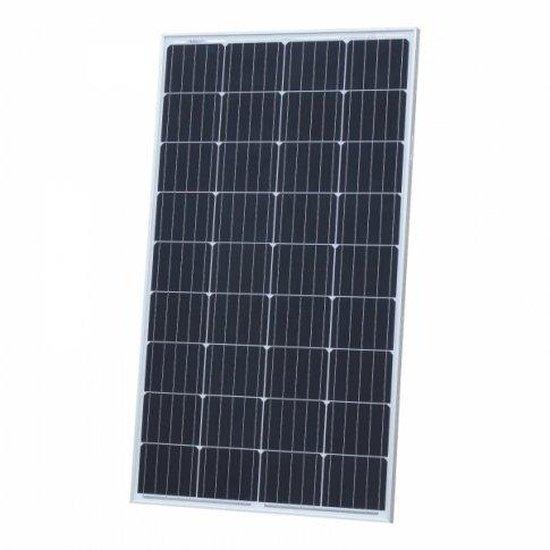

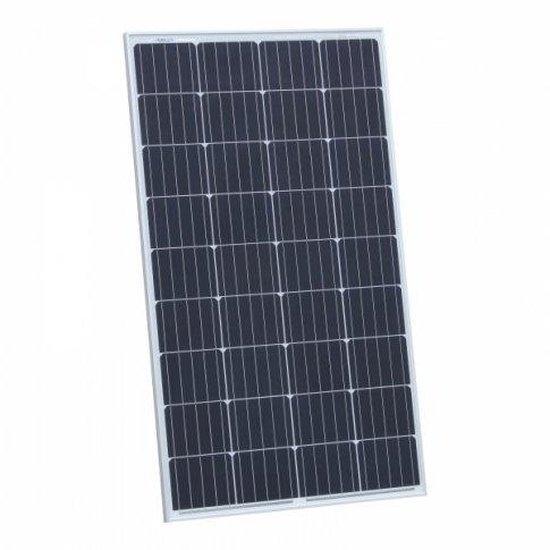

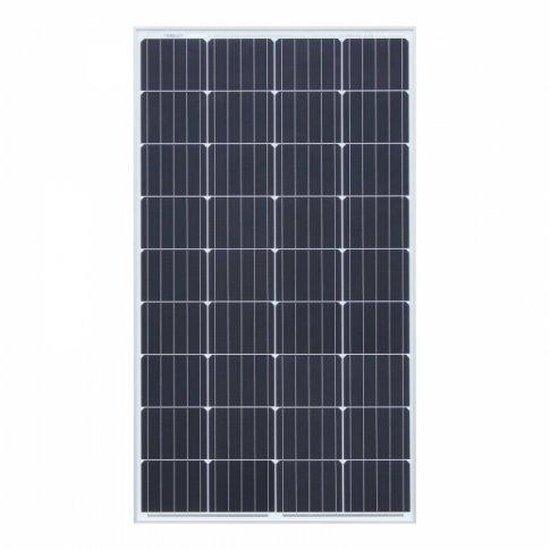

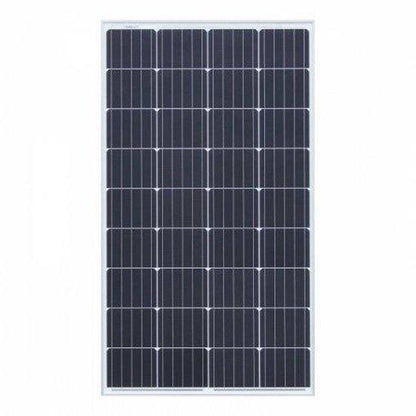

High-efficiency 120W monocrystalline solar panel with sealed aluminium frame and 2 x 5 m cables, designed for permanent outdoor use and 12 V charging systems.

• Peak power: 120 W; maximum power voltage (Vmp): 18 V; maximum power current (Imp): 6.67 A
• Open-circuit voltage (Voc): 22.5 V; short-circuit current (Isc): 7.02 A; power tolerance: 0~+3%
• Dimensions: 1180 x 670 x 30 mm (46.5 x 26.4 x 1.2 in); weight: 10 kg (22.0 lb)
• Cells: monocrystalline with advanced 5-busbar design for higher efficiency and smaller panel size
• Construction: tough sealed aluminium frame; waterproof for use in all weather conditions

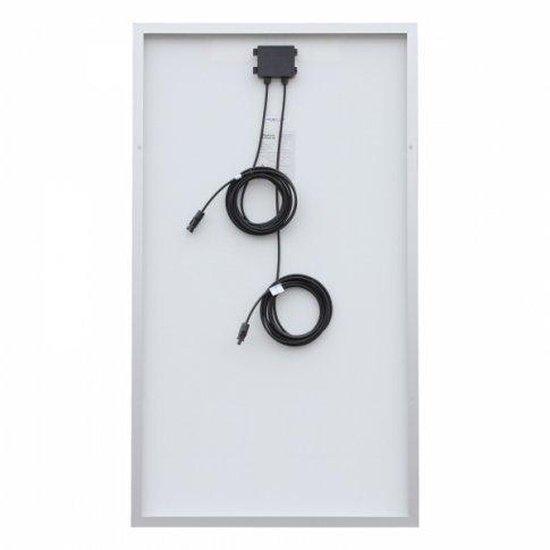

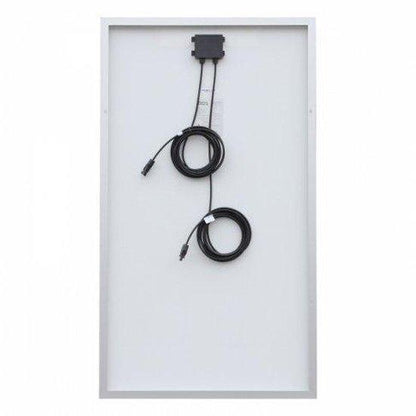

• Cables & connectors: 2 x 5 m high-temperature single-core solar cable (4.0 mm²) with MC4-compatible male/female connectors; connectors may be cut for direct controller terminal wiring
• Mounting & expansion: 4 mounting holes; multiple panels can be connected in series or parallel to increase output
• Quality: each panel is individually tested and labelled with a unique serial number for quality control and warranty protection
• Important: to charge a 12 V battery or battery bank this panel requires a solar charge controller / regulator

Use appropriate mounting, fusing and a compatible solar charge controller when integrating into a 12 V system; see technical specifications for full details.
