Photonic Universe 150W 12V Solar Charging Kit, 10A Controller | 4Boats

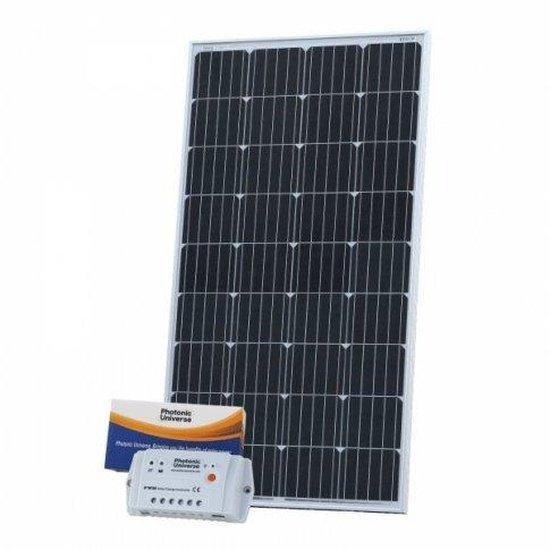

Complete essentials kit: 150W 12 V monocrystalline solar panel with a 10 A 12 V/24 V Photonic Universe PWM charge controller and 2 x 5 m MC4 cables for quick installation. Ideal for boats, camper vans, caravans, RVs and off‑grid battery charging.

• Solar panel performance: Peak power 150W; Vmp 20.2 V; Imp 7.43 A; Voc 23.9 V; Isc 7.89 A; power tolerance ±3%.

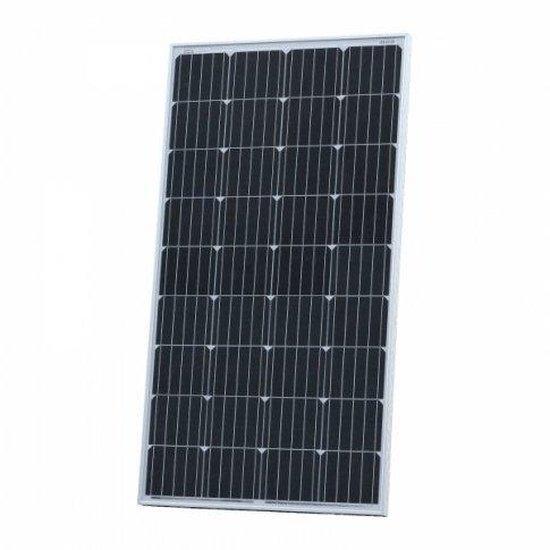

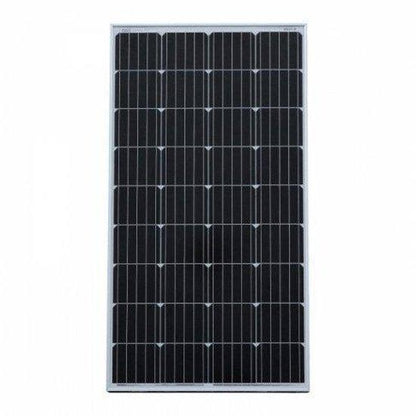

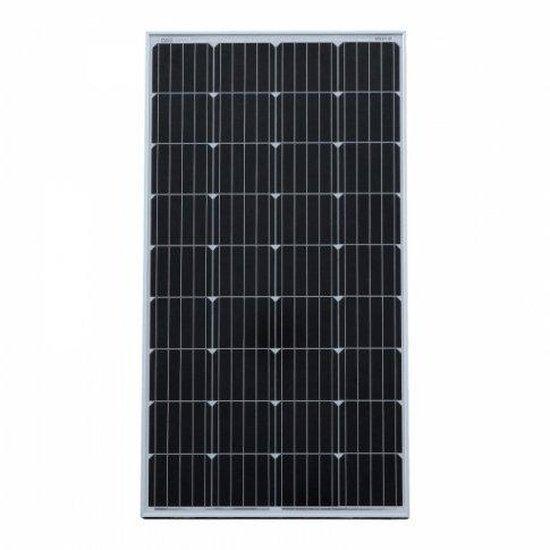

• Panel construction: high‑efficiency 5-busbar monocrystalline cells in a sealed aluminium frame; waterproof for permanent outdoor use on boats, camper vans, sheds and remote sites.

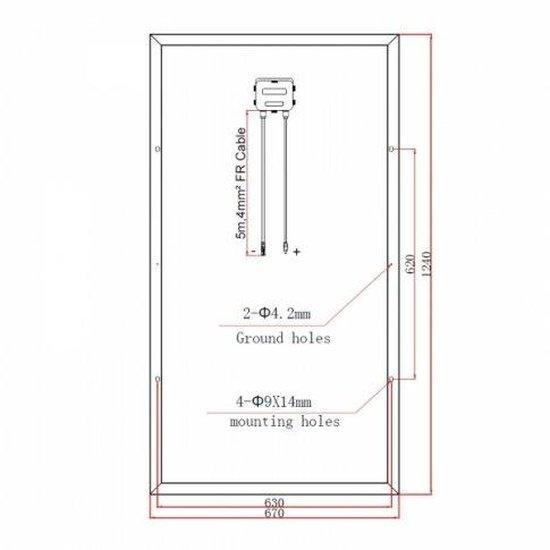

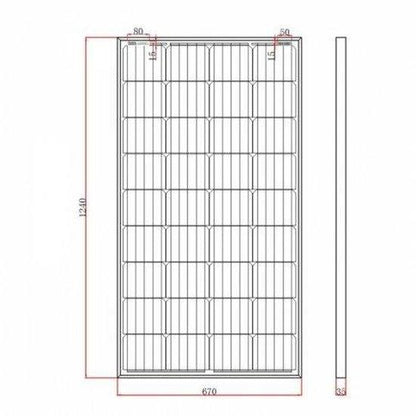

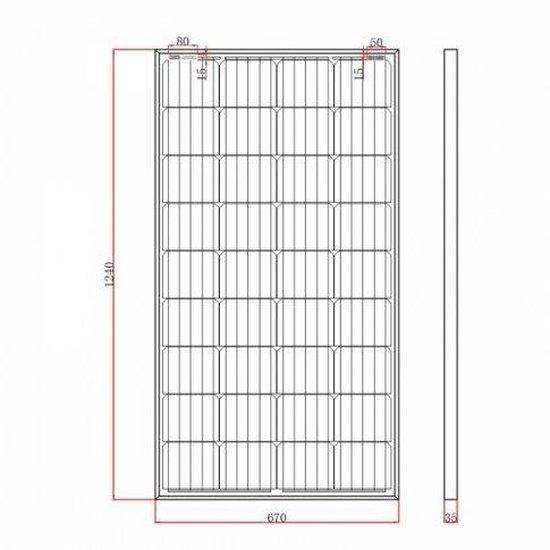

• Dimensions & weight: 124 x 54 x 3.5 cm (48.8 x 21.3 x 1.4 in); weight 9.9 kg (21.8 lb); 4 mounting holes 9 x 14 mm (0.35 x 0.55 in).

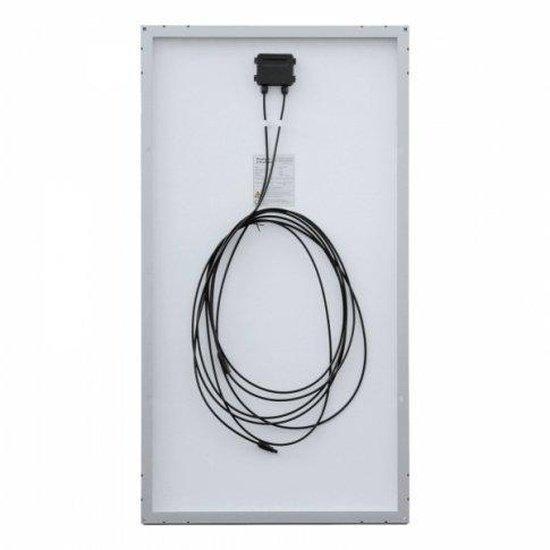

• Cables & connectors: 2 x 5 m (16.4 ft) high‑quality single‑core solar cables rated for high roof temperatures; fitted with male/female MC4 connectors (can be cut for direct controller terminals).

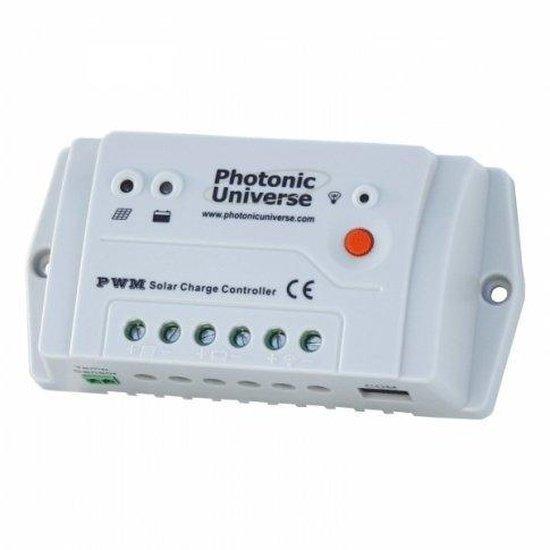

• 10 A solar charge controller: Photonic Universe 10 A, rated current 10 A with fully automated operation and auto 12/24 V selection; PWM charging to optimise battery acceptance and life; prevents reverse current at night.
• Controller protections & specs: overcharge/discharge, overload, short circuit and overheating protection; self‑consumption 8.4 mA (12 V) / 7.8 mA (24 V); working temperature -35°C to +50°C (-31°F to +122°F); terminals for wire up to 4 mm².
• Controller size & fittings: 13.8 x 6.9 x 3.7 cm (5.4 x 2.7 x 1.5 in); weight 130 g (4.6 oz); multiple mounting holes; can connect to an MT50 remote meter (LCD) to monitor and optimise charging.
• What’s included / notes: essentials kit only — does not include mounting brackets or battery; the charge controller may be shipped separately due to warehouse arrangements; detailed electrical connection and installation instructions supplied.

Care & compatibility: suitable for direct‑power applications tolerant of voltage variation and for charging 12 V battery systems. Compatible with common 12 V battery types (lead‑acid, AGM and gel); verify controller settings for lithium batteries. Fit panels to flat roofs with metal brackets and follow the supplied installation guidance for safe, long‑term use.
