Photonic Universe 160W 12V Solar Kit, 20A PWM Controller | 4Boats

Complete 160W 12 V solar charging kit for boats, campervans, RVs and off‑grid systems. Includes a high‑efficiency monocrystalline panel, 5 m MC4 cable and an advanced 20 A PWM charge controller.

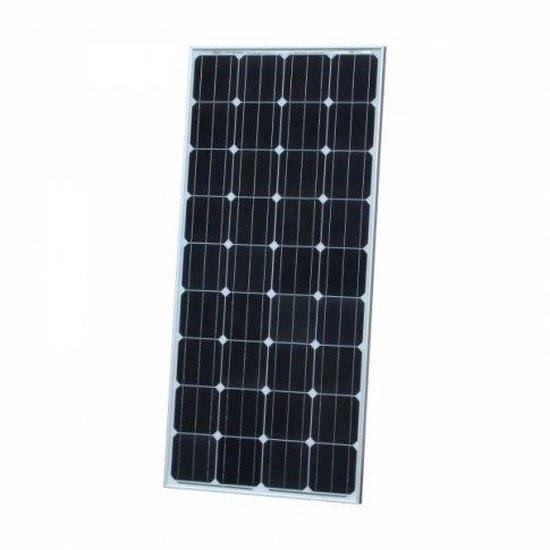

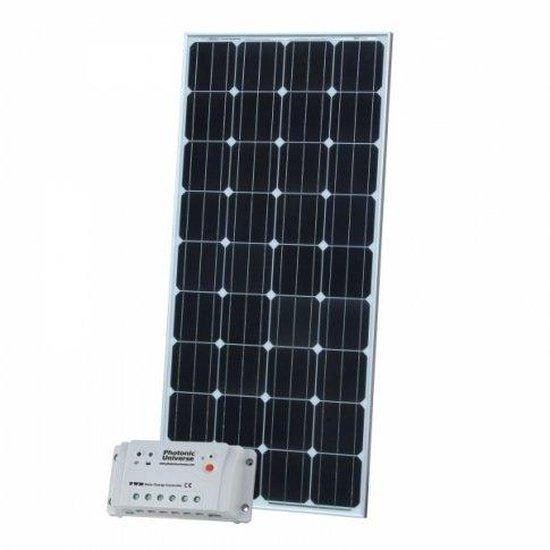

• Kit includes: 160W monocrystalline solar panel with 5 m of solar cable and MC4 connectors and an advanced 20 A solar charge controller.

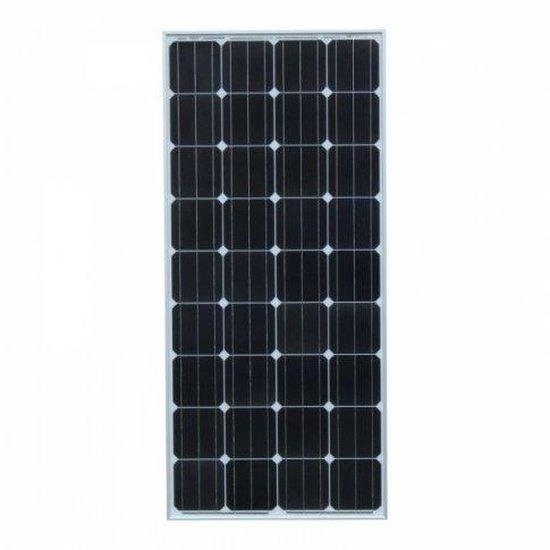

• 160W solar panel specifications: Peak power 160W; Vmp 18.8 V; Imp 8.48 A; Voc 22.9 V; Isc 9.02 A; power tolerance 0~+3%.

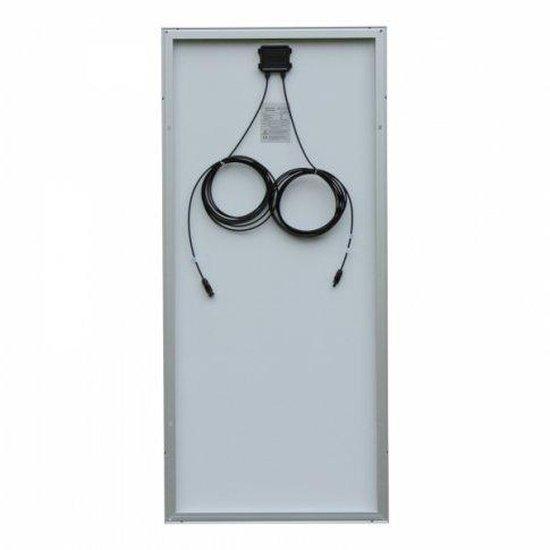

• Panel dimensions and weight: 1480 x 670 x 35 mm; weight 12 kg; 4 mounting holes; 5 m cable fitted with MC4 connectors (can be cut for screw‑terminal connections). The solar panel is waterproof for outdoor use.

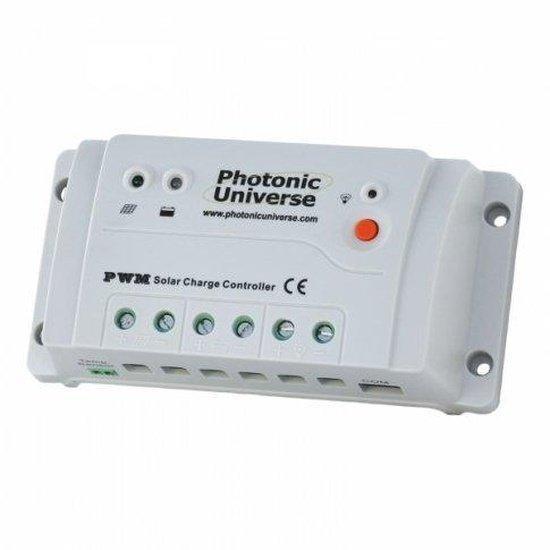

• 20 A solar charge controller specs: rated current 20 A; fully automated operation with auto 12/24 V selection; PWM charging to improve charge acceptance and battery life.
• Controller protections: overcharge/discharge, overload, short circuit, overheating and reverse current prevention (stops battery discharge to the panel at night).
• Controller details: compatible with sealed, gel and flooded batteries (default: sealed); can connect to a remote MT50 LCD meter; self‑consumption ~8.4 mA (12 V) / ~7.8 mA (24 V).
• Controller mechanics: working temperature -35°C to +50°C; terminals accept up to 10 mm² cable; size 15.9 x 8.1 x 4.8 cm; weight 300 g; multiple mounting holes for easy installation.
• Please note: this is an essentials kit — mounting accessories, racks and batteries are NOT included. The controller should be mounted/used indoors. Due to our warehouse arrangements, the solar charge controller may be shipped separately.
• Compatibility & safety: the controller auto‑detects 12/24 V systems, but the included single 160W panel (Vmp 18.8 V) is intended for 12 V battery systems; 24 V systems require a different panel configuration. Use the PWM controller settings appropriate to your battery type, consult battery manufacturer recommendations and fit isolators/fuses as required.

Care & compatibility: suitable for permanent outdoor panel installation; follow battery manufacturer guidance and fit appropriate isolation and overcurrent protection where required.
