Photonic Universe 160W (2×80W) Solar Panels with 2×5m Cable | 4Boats

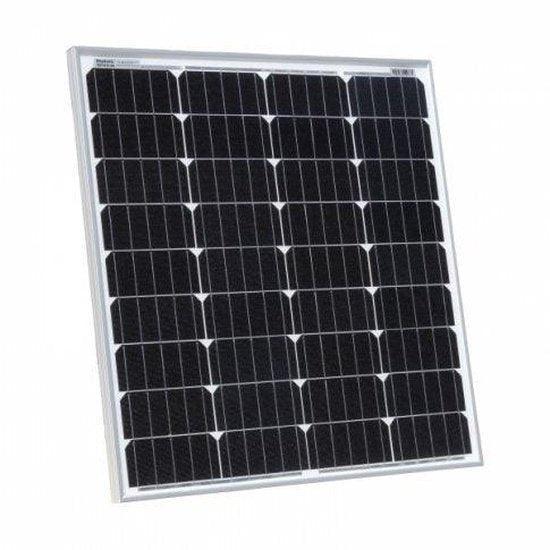

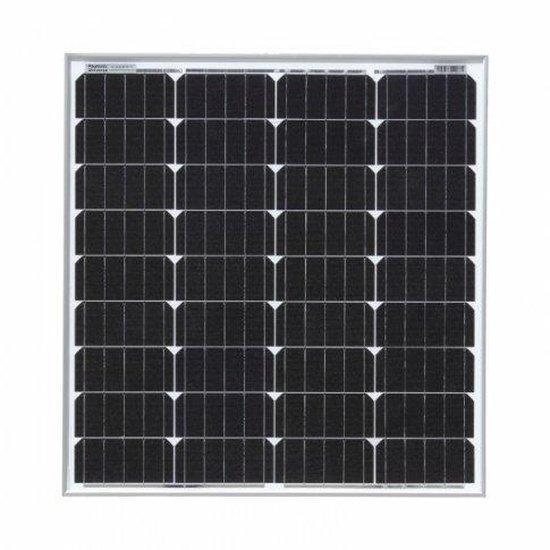

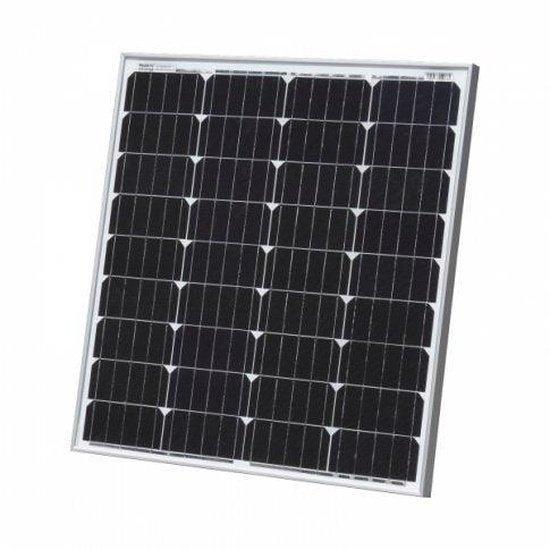

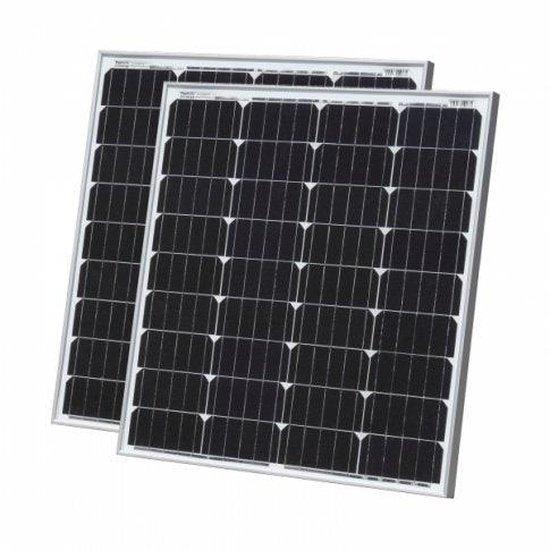

Photonic Universe pair of waterproof, high‑efficiency monocrystalline solar panels (80W each) supplied with 2 x 5 m cables and MC4 connectors — ideal for 12 V systems.

• For charging a 12 V battery or battery bank: please note these panels require a solar charge controller / regulator to charge.
• Per panel electrical specifications: Peak power 80W; maximum power voltage 20.2 V; maximum power current 3.96 A; open circuit voltage 23.9 V; short circuit current 4.21 A; power allowance range ±3%.

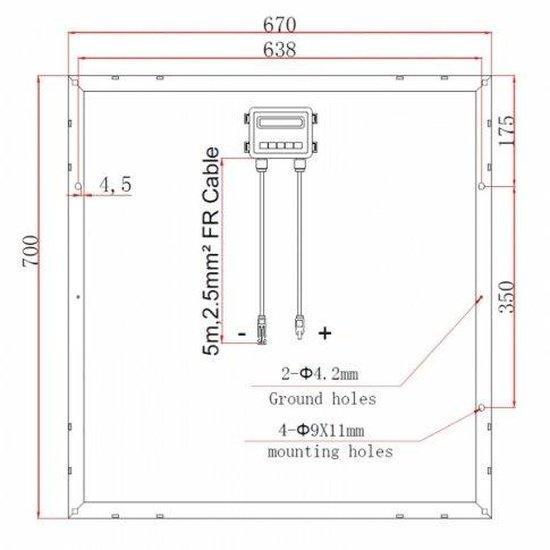

• Physical: Length 700 mm (27.6 in); thickness 30 mm (1.18 in); weight 6 kg (13.2 lb); 4 mounting holes 9 x 11 mm (0.35 x 0.43 in).
• Cabling and connectors: 2 x 5 m of high‑quality single‑core solar cable fitted with male/female MC4 connectors; cable rated for high roof temperatures to minimise power loss.
• Construction: waterproof sealed aluminium frame, long‑lasting monocrystalline cells with 5‑busbar design for higher efficiency in limited spaces and warm climates.
• Installation: These 2 x 80W solar panels can be wired in parallel ("+" to "+", "-" to "-") to increase current while keeping suitable voltage for 12 V charging; MC4 connectors can be cut off for screw‑terminal connection to a solar charge controller.
• Applications: ideal for camper vans, motorhomes, boats, sheds, farms, remote telecoms or monitoring equipment and direct supply for non‑sensitive loads such as pumps or motors.

See the Installation tab for mounting and wiring guidance; ensure you choose a compatible solar charge controller for safe battery charging and long system life.
