Photonic Universe 30W ETFE Reinforced Semi-Flexible Solar Pan | 4Boats

Photonic Universe reinforced 30W semi-flexible solar panel with an ETFE coating and anodised aluminium reinforcement. Built from high-efficiency monocrystalline cells, the lightweight semi-flexible design is ideal for slightly curved roofs on motorhomes, caravans, boats and other mobile or marine applications.

• Reinforced ETFE coating: unique 7-layer construction with an embedded sheet of anodised aluminium fully encapsulated for extra strength and durability.
• Benefits: semi-flexible design is ideal for slightly curved roofs and surfaces where bonding is preferable (can also be fixed with bolts or screws).
• Electrical specifications: Peak power 30W; Maximum power voltage (Vmp) 20.2 V; Maximum power current (Imp) 1.49 A; Open circuit voltage (Voc) 23.9 V; Short circuit current (Isc) 1.57 A; Power allowance range ±5%.
• Dimensions: Solar panel 505 x 400 x 4 mm; Junction box 90 x 16 x 16 mm.
• Weight: 1.35 kg — very light and well suited to vehicles such as motorhomes, caravans and boats.
• Durability: ETFE surface provides an anti-reflective textured finish, improved light absorption and longer service life; resistant to cracking, delamination and corrosion with high resistance to salt-water environments.

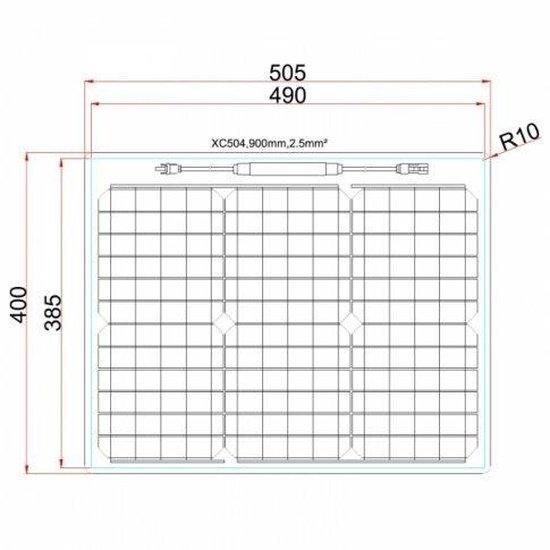

• Installation & charging: supplied with a manual; requires a solar charge controller/regulator to charge a 12 V battery (do not connect directly to a battery). Before installing, read the handling and fitting guide; Technical Drawing (ARFLX-30M) and handling documents are available to download.
• Use cases & safety note: suitable for 12 V battery charging, solar lighting, off-grid and backup systems; can supply direct power to applications not sensitive to input fluctuations (for example pumps or motors) but always check compatibility, confirm voltage/current match for the load and use the correct controller.
