Photonic Universe 320W 12V Solar Kit – 20A PWM + 2 × 5m Cable | 4Boats

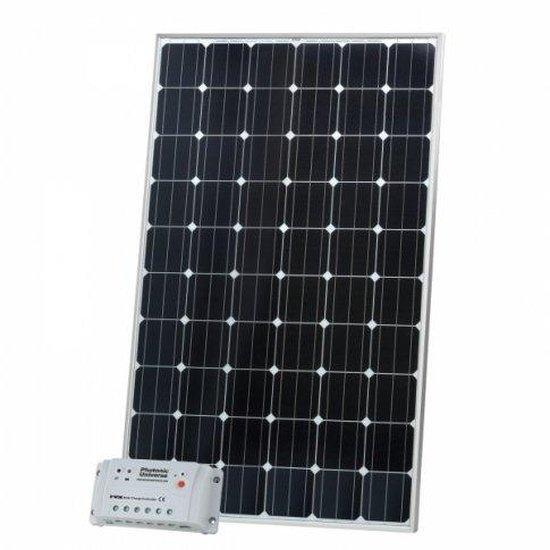

Photonic Universe high‑output 320W 12 V solar charging kit with a 20 A PWM controller and 2x5 m cable set — ideal for camper vans, motorhomes, boats and remote sites. Designed primarily for battery charging and for powering simple DC loads when used with the included PWM controller.

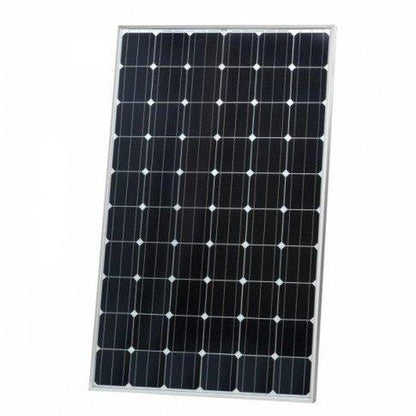

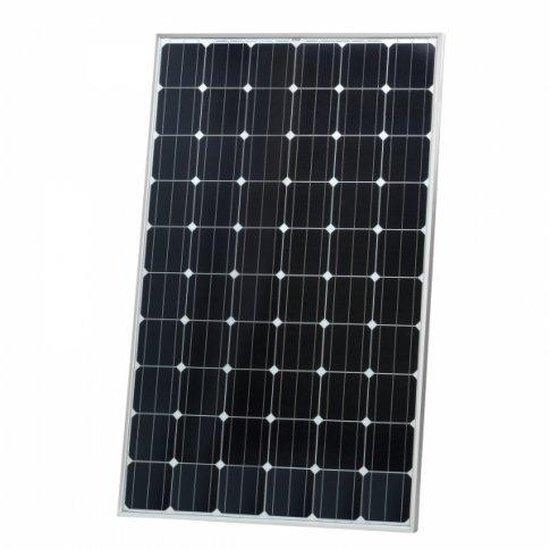

• High‑efficiency waterproof 320W 12 V monocrystalline solar panel for permanent outdoor use.

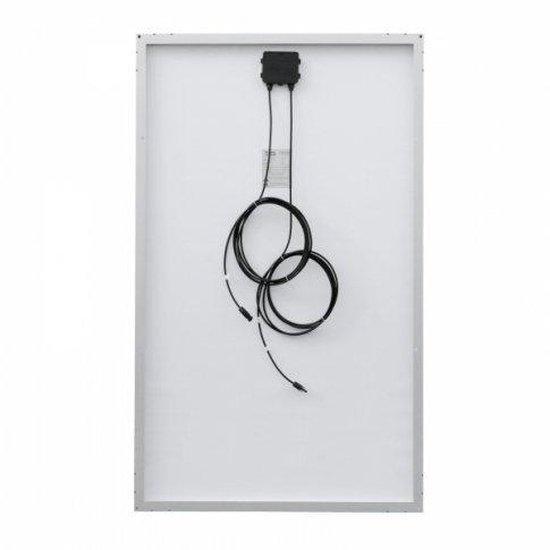

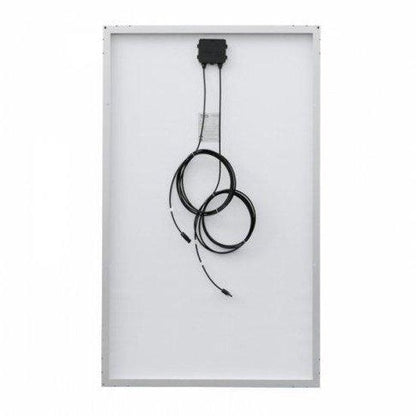

• Supplied with 2x5 m (2 x 16.4 ft) high‑temperature single‑core solar cables fitted with male/female MC4 connectors (connectors can be cut off for screw‑terminal wiring).
• Solar panel specifications: Peak power 320W; Maximum power voltage (Vmp) 18.35 V; Maximum power current (Imp) 17.88 A; Open circuit voltage (Voc) 21.85 V; Short circuit current (Isc) 19.04 A; Power allowance ±3%; Dimensions 1640 x 992 x 35 mm (64.6 x 39.1 x 1.4 in); Weight 19.5 kg (43.0 lb); 8 mounting holes 9 x 14 mm.

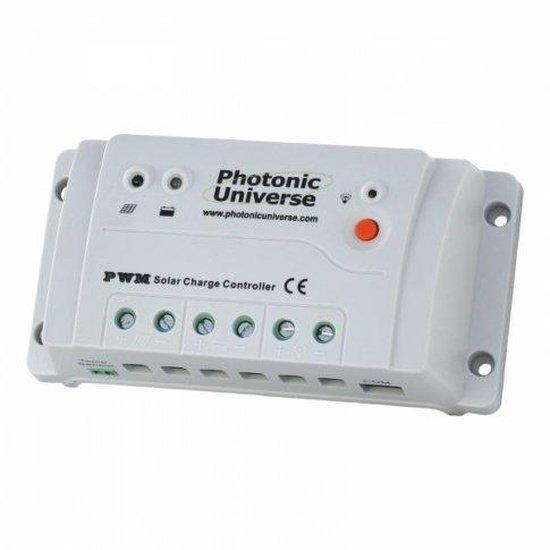

• 20 A solar charge controller included: powerful 20 A 12 V/24 V PWM controller to protect batteries with automatic cut‑off, reverse current protection and improved charge acceptance. The controller also incorporates additional protection features (overcharge, short‑circuit and reverse‑polarity protection) and accepts a wide solar input range suitable for 12 V/24 V arrays.
• Charge controller features: rated current 20 A; fully automated operation with auto 12/24 V selection; self‑consumption 8.4 mA (12 V) / 7.8 mA (24 V); working temperature −35°C to +50°C; terminals for up to 10 mm² cable; size 15.9 x 8.1 x 4.8 cm (6.3 x 3.2 x 1.9 in); weight 300 g (0.66 lb); multiple mounting holes.
• Remote monitoring: the controller can be connected to a remote meter (MT50) with LCD for status and configuration; user manual for PU2024B 20 A 12 V/24 V automatic solar charge controller available to download.
• Panel cell design and build: 5‑busbar monocrystalline cells and sealed aluminium frame for improved efficiency in warm climates and reliable all‑weather performance.
• Please note: this is an essentials kit and does not include mounting accessories or a battery. Due to warehouse arrangements the solar charge controller may be shipped separately; full electrical connection and installation instructions are supplied.

Care & compatibility: cables and MC4 connectors are suitable for high roof temperatures; the panel can be fitted to flat roofs using metal brackets, pole mounts or custom fixtures (mounting hardware not included).
