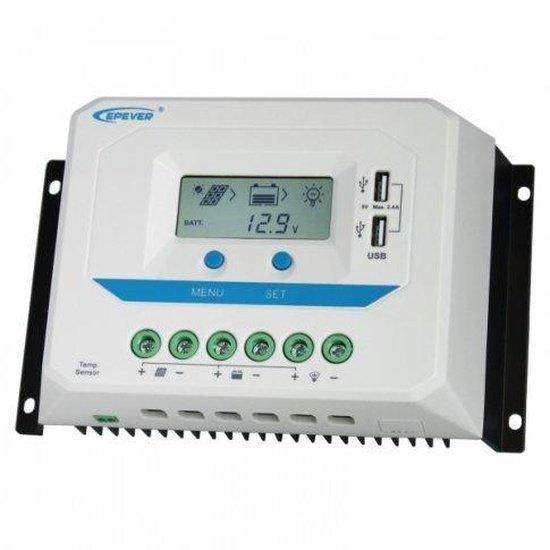

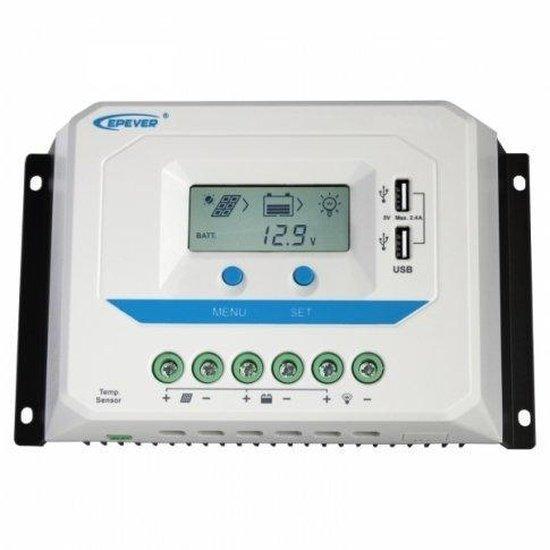

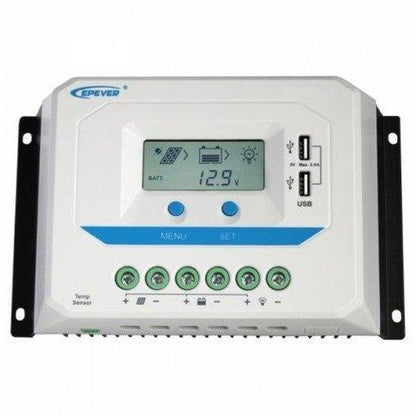

Photonic Universe 60A PWM Solar Controller 12–48V, LCD & USB | 4Boats

Photonic Universe 60 A PWM solar charge controller for 12/24/36/48 V systems with an LCD display and powerful dual 5 V USB outputs for on-board device charging.

• Supports a wide range of battery capacities. Full system protection includes reverse-current protection, automatic cut-off to prevent overcharge, deep-discharge protection, overheating, overload, short circuit and reverse polarity.
• Advanced programming and monitoring features: LCD display with multilevel menu operation and two multifunctional buttons; displays voltage, current, battery state of charge and battery temperature. An energy statistics counter shows accumulated daily and monthly charge values.
• Charging programs: selectable charging programs for different battery types; an optional 12 V load output (for lighting/fans) with night-time lighting settings.
• Rapid USB charging: dual 5 V USB outputs with a combined 2.4 A for fast charging of mobile phones, tablets, MP3 players and other USB devices.
• Controller specifications: fully automated operation with auto 12/24/36/48 V selection. Rated charge/discharge current: 60 A. Maximum solar panel input power: 960W (12 V) / 1920W (24 V) / 2880W (36 V) / 3840W (48 V). Maximum solar panel input voltage: 96 V.
• Temperature compensation and operating range: temperature sensor for automatic compensation: −3 mV/°C/2 V (25°C). Working temperature: −25°C to +55°C (−13°F to +131°F). Self-consumption: ≤ 9.2 mA (12 V).
• Additional features: inbuilt temperature sensor, pair of terminal blocks and mounting holes for ease of installation. Size: 21.4 x 12.9 x 7.2 cm (8.43 x 5.08 x 2.83 in). Weight: 1.04 kg (2.29 lb).
• Warranty: This product is covered by a 1-year manufacturer's warranty.

Compatibility and care: suitable for solar panels with combined power up to the stated maxima — follow wiring and earthing best practice and consult the manual for battery-specific programming and safety information.
