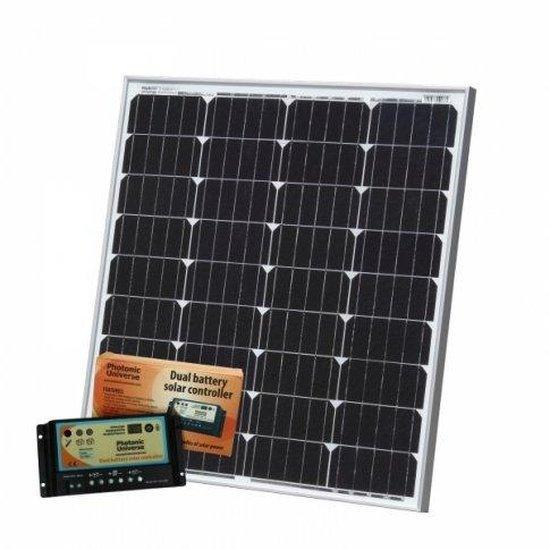

Photonic Universe 80W 12V Dual-Battery Solar Kit, 10A Controller

Compact 80W 12 V solar kit for campers, motorhomes and boats — includes panel, 10 A PWM dual-battery charge controller and cables.

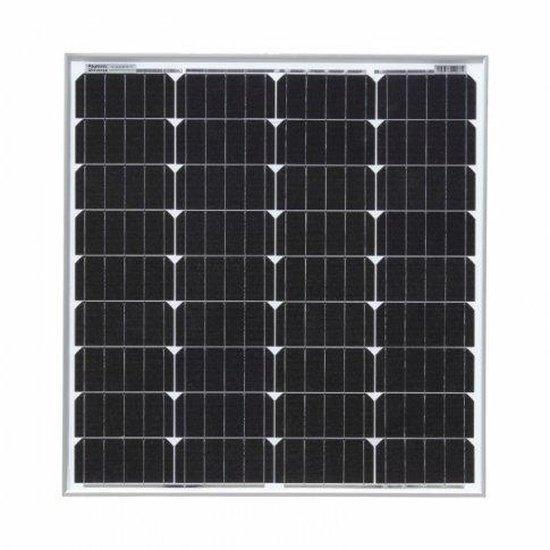

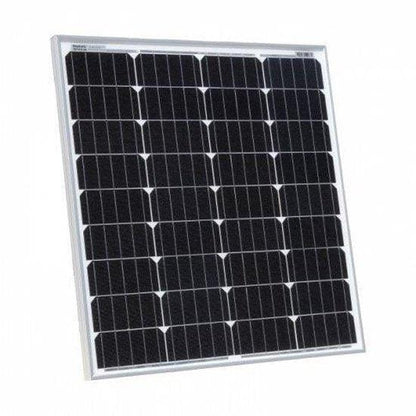

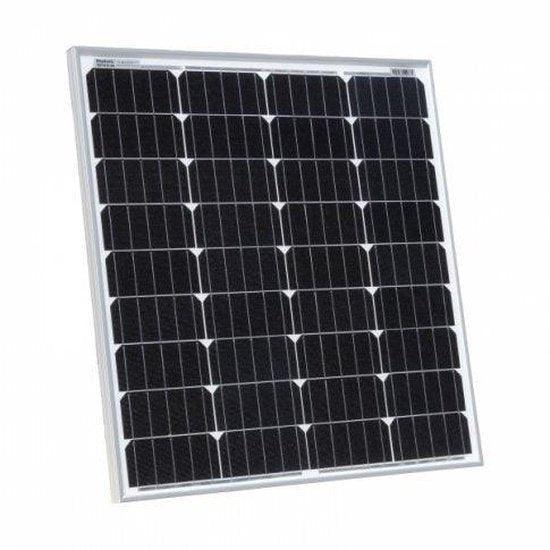

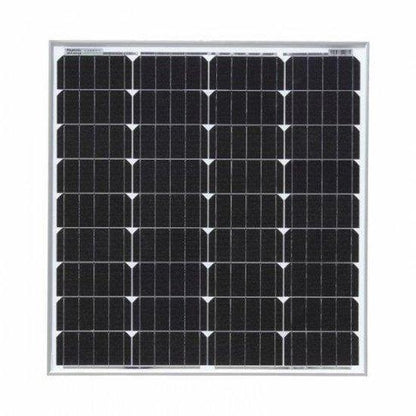

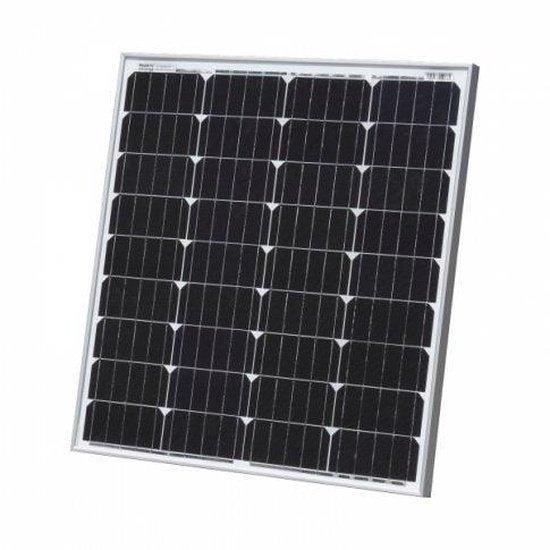

• 80W solar panel: high-efficiency, waterproof 80W 12 V monocrystalline panel with 5-busbar cells, ideal for permanent outdoor use and for charging 12 V batteries or directly powering non-sensitive DC loads.

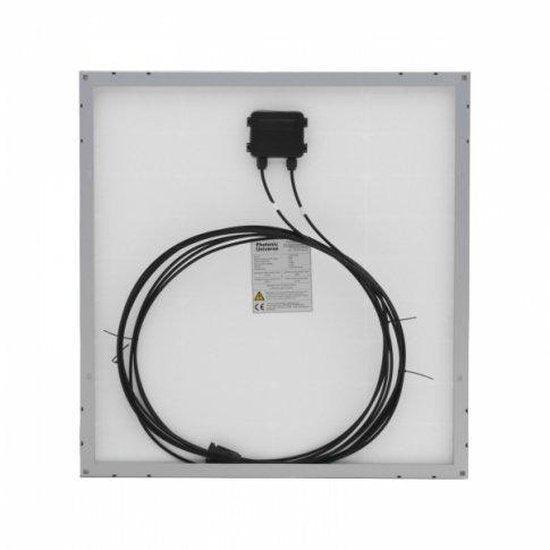

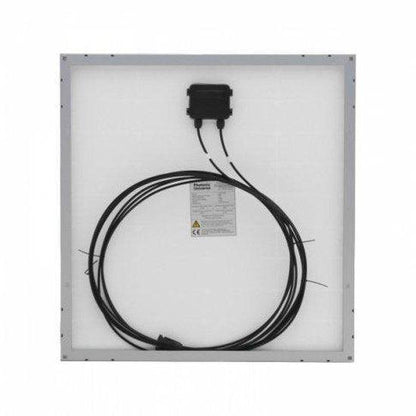

• Cable and connectors: supplied with 2 x 5 m of high quality single-core solar cable with MC4 male/female connectors (MC4s can be cut off for direct wiring to a charge controller).

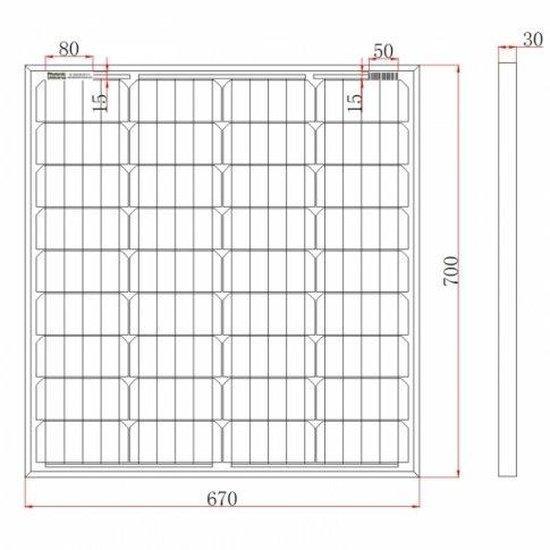

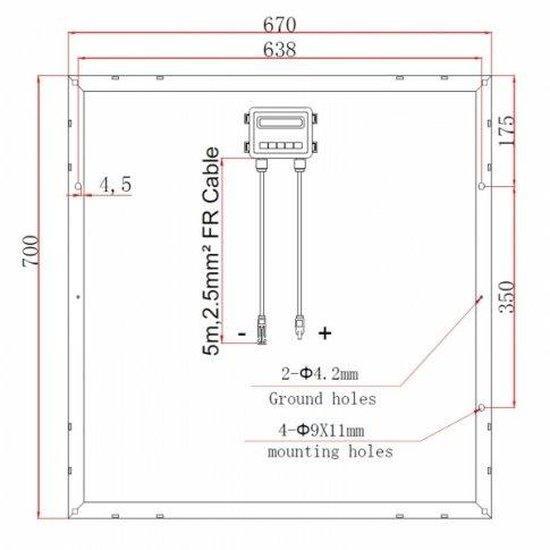

• Solar panel specifications: Peak power 80W; Maximum power voltage (Vmp) 20.2 V; Maximum power current (Imp) 3.96 A; Open circuit voltage (Voc) 23.9 V; Short circuit current (Isc) 4.21 A; Power allowance +/- 3%; Dimensions 700 x 540 x 30 mm (27.6 x 21.3 x 1.2 in); Weight approx 6 kg (approx 13.2 lb); 4 mounting holes 9 x 11 mm.

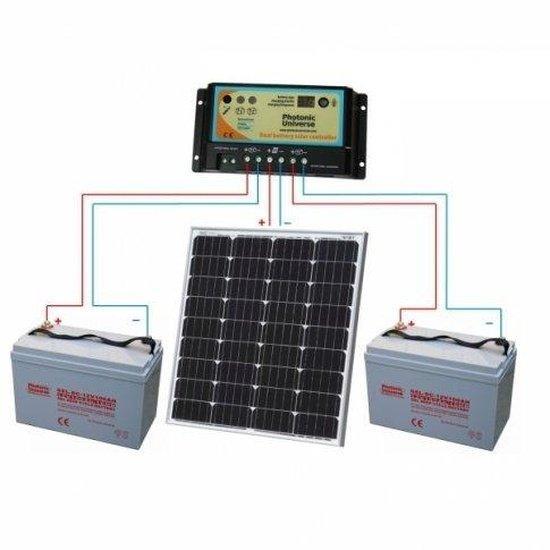

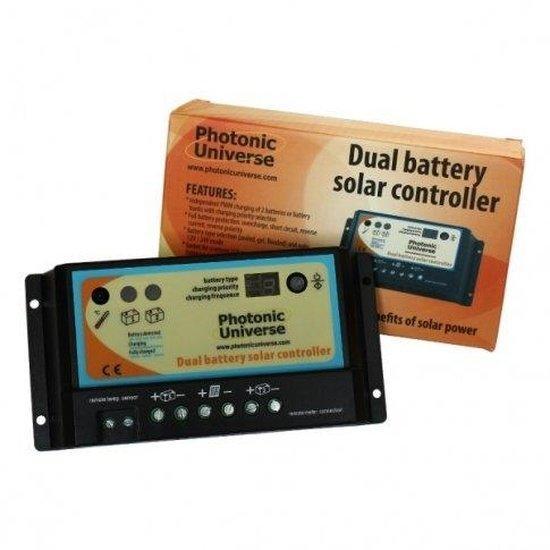

• 10 A solar charge controller: 10 A 12 V/24 V dual-battery PWM controller designed to charge and protect two batteries independently, with selectable charging priority and automatic cut-off to prevent overcharge.
• Charge controller specifications: fully automated operation with auto 12/24 V selection; 3 pairs of terminals (PV, battery, load) with protections including reverse polarity; self-consumption 4 mA at night, 10 mA when charging; working temperature -35°C to +55°C (-31°F to 131°F); terminals accept up to 4.0 mm²; size 15.5 x 7.6 x 4.0 cm (6.1 x 3.0 x 1.6 in); weight 185 g (0.41 lb).
• Fitting and installation: multiple mounting holes for ease of installation; the panel can be fitted to a flat roof using metal brackets, poles or adhesive; see the Installation tab for electrical connection guidance.
• What the kit includes: 80W panel, 10 A dual-battery charge controller and cables. Please note: this is an essentials kit and does not include mounting accessories or batteries; the solar charge controller may be shipped separately due to warehouse arrangements.

Caring and compatibility: suitable for marine and mobile use, but professional installation is recommended for battery wiring and permanent roof mounting. Ensure battery type and capacity are compatible with the controller settings before use.
