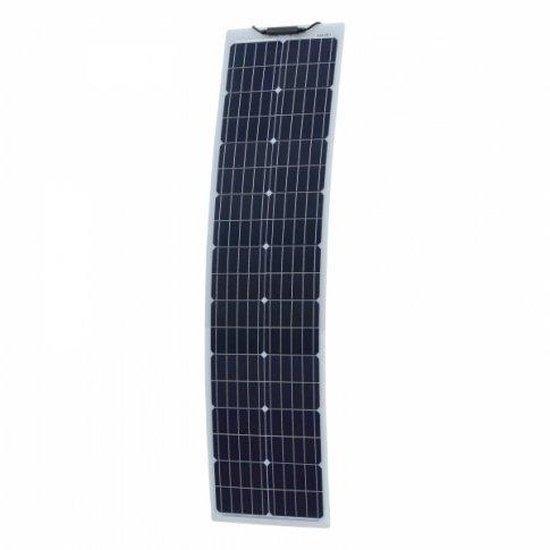

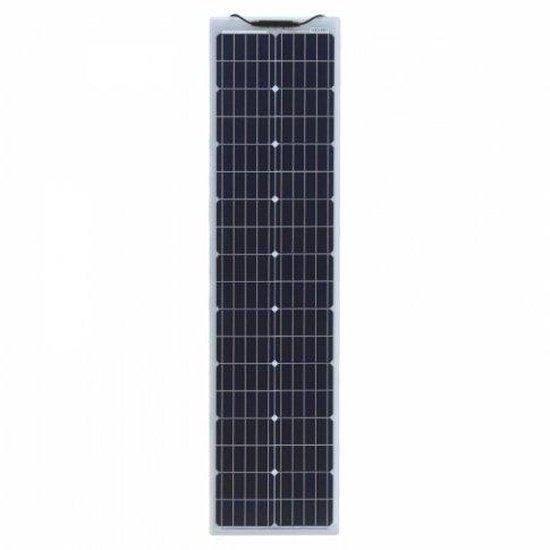

Photonic Universe 80W Reinforced Narrow Semi‑Flexible ETFE Solar Panel

Durable 80 W semi‑flexible solar panel with anodised aluminium reinforcement and a tough ETFE surface — ideal for motorhomes, caravans, campers and boats to charge 12 V batteries when used with a suitable solar charge controller.

• Reinforced 7‑layer ETFE construction with an embedded anodised aluminium sheet, fully encapsulated for strength and durability.
• High‑efficiency 5‑busbar monocrystalline cells for higher output from the same surface area.
• Semi‑flexible design ideal for slightly curved roofs and surfaces where rigid panels cannot be fitted.
• Electrical specifications: Peak power: 80 W; Maximum power voltage (Vmp): 20.2 V; Maximum power current (Imp): 3.96 A; Open‑circuit voltage (Voc): 23.9 V; Short‑circuit current (Isc): 4.20 A; Power tolerance: ±5%.
• Dimensions: 1365 x 350 x 4 mm. Junction box dimensions: 90 x 16 x 16 mm. Weight: 3.05 kg.
• Charging a 12 V battery: requires a suitable solar charge controller/regulator — do not connect directly to the battery.
• Fitting: supplied with a manual; read the handling and fitting guide before installation.

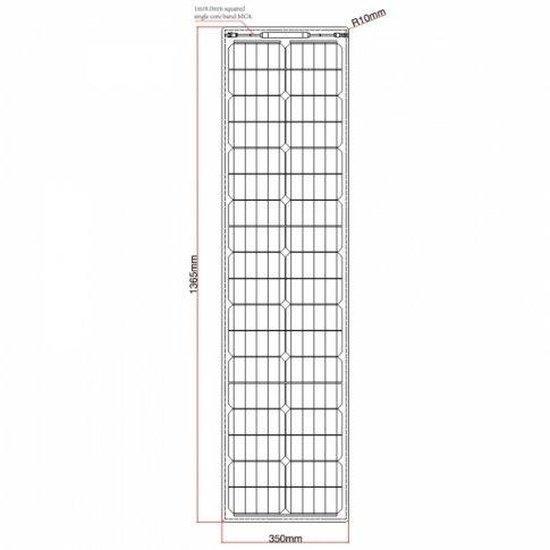

• Documentation: Technical Drawing of 80W Reinforced Narrow Semi‑Flexible Solar Panel ARFLXNR-80M is available to download.
• Care: clean the ETFE surface with fresh water and a soft cloth; suitable for permanent outdoor use. Use approved adhesives or fixings for semi‑flexible installations and always pair with a compatible solar charge controller for 12 V systems.
