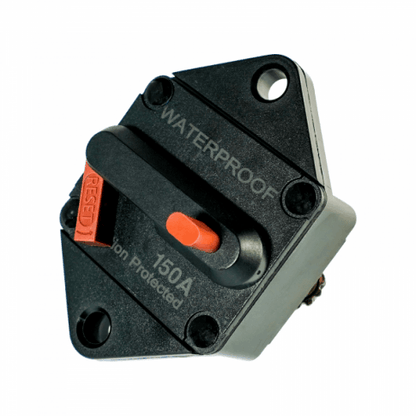

Photonic Universe CBR150 150A 12/24/48V DC Circuit Breaker | 4Boats

Photonic Universe CBR150 150A 12/24/48V DC Circuit Breaker | 4Boats

4Boats

£25.24
£25.24
Sale Sold out
Shipping calculated at checkout.

Description

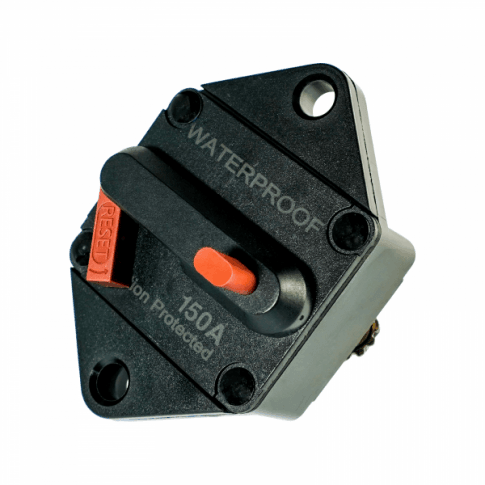

Resettable 150 A DC Circuit Breaker that also functions as a manual isolator, suitable for panel or recess mount in 12/24/48 V systems.

  • Function: Resettable 150 A thermal overcurrent protection device and manual on/off isolator for 12/24/48 V DC systems.
  • Rating: 150 A. Type: Thermal overcurrent protection device. Material: thermoplastic (UL 94 V-0).
  • Operating temperature: -32°C to 82°C (-26°F to 180°F). Storage temperature: -34°C to 149°C (-29°F to 300°F).
  • Terminals: M6. Enclosure: IP67 (protection to 1 m immersion).
  • Size: 74 x 48 x 37 mm (2.91 x 1.89 x 1.46 in). Weight: 110 g (3.9 oz).
  • Ignition-protected to SAE J1625, SAE J1171, UL 1500.
  • Use cases: Ideal between charge controllers and batteries, off-grid inverter DC inputs, DC power distribution, charging circuits, and other automotive and marine DC applications.
  • Mounting: Designed for panel or recess mount; includes manual-break option for simple isolation and reconnection.

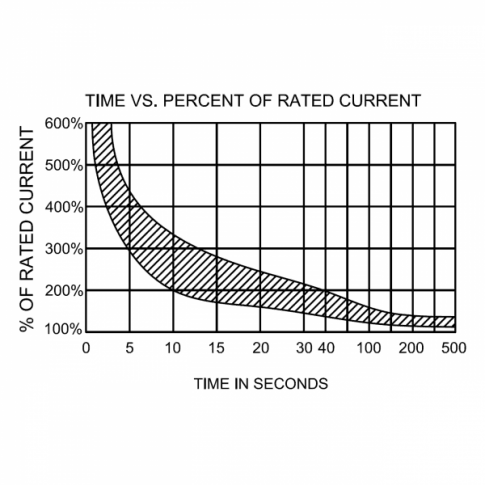

Downloads: Time vs Rated Current graph for Photonic Universe 150 A Circuit breaker (CBR150). Fitment and electrical work should be carried out by a qualified technician.

Resettable 150 A DC Circuit Breaker that also functions as a manual isolator, suitable for panel or recess mount in 12/24/48 V systems.

  • Function: Resettable 150 A thermal overcurrent protection device and manual on/off isolator for 12/24/48 V DC systems.
  • Rating: 150 A. Type: Thermal overcurrent protection device. Material: thermoplastic (UL 94 V-0).
  • Operating temperature: -32°C to 82°C (-26°F to 180°F). Storage temperature: -34°C to 149°C (-29°F to 300°F).
  • Terminals: M6. Enclosure: IP67 (protection to 1 m immersion).
  • Size: 74 x 48 x 37 mm (2.91 x 1.89 x 1.46 in). Weight: 110 g (3.9 oz).
  • Ignition-protected to SAE J1625, SAE J1171, UL 1500.
  • Use cases: Ideal between charge controllers and batteries, off-grid inverter DC inputs, DC power distribution, charging circuits, and other automotive and marine DC applications.
  • Mounting: Designed for panel or recess mount; includes manual-break option for simple isolation and reconnection.

Downloads: Time vs Rated Current graph for Photonic Universe 150 A Circuit breaker (CBR150). Fitment and electrical work should be carried out by a qualified technician.
