Photonic Universe SWD-200M 200W 12V Solar Panel, 2 × 5 m MC4 | 4Boats

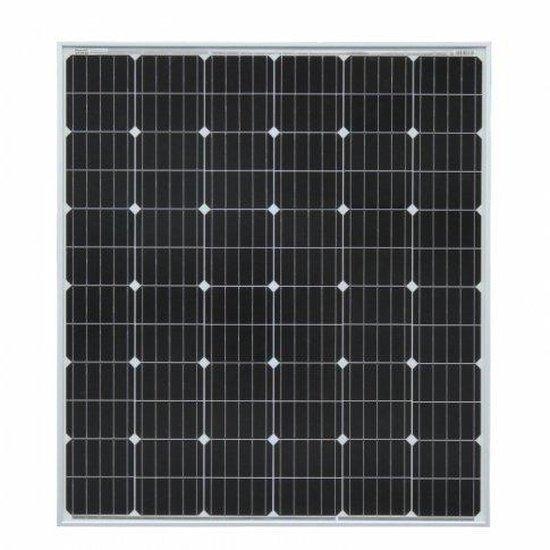

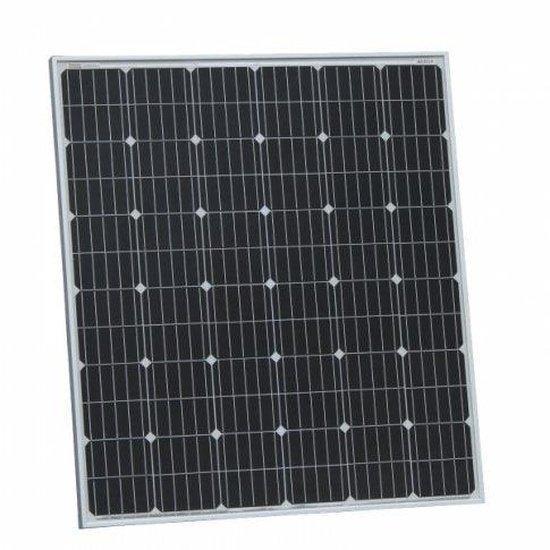

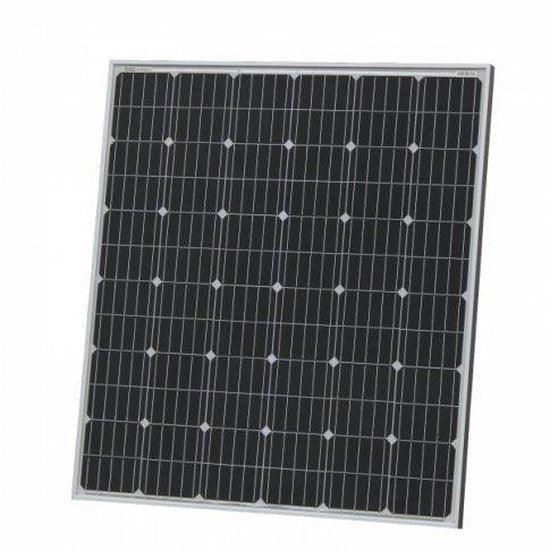

Photonic Universe 200W 12 V monocrystalline solar panel (model SWD-200M) supplied with 2 x 5 m high-temperature cables and MC4 connectors — ideal for vans, boats, sheds and remote installations.

• Peak power: 200 W; Maximum power voltage (Vmp): 20.2 V; Maximum power current (Imp): 9.9 A; Open-circuit voltage (Voc): 23.9 V; Short-circuit current (Isc): 10.52 A; Power allowance range: +/- 3%.
• To charge a 12 V battery or battery bank, a solar charge controller/regulator is required.

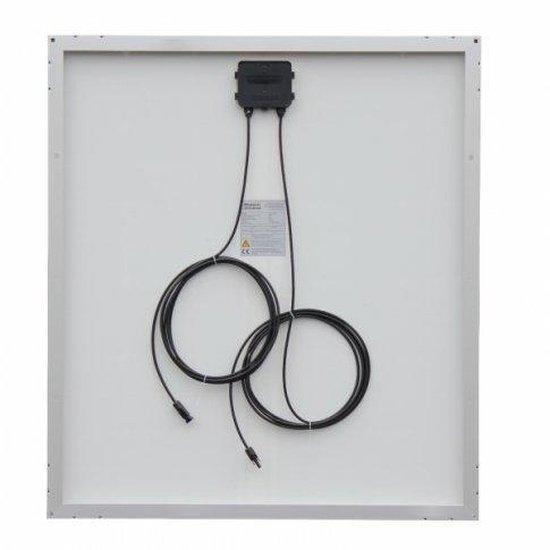

• Fitted with 2 x 5 m high-temperature single-core solar cables with male and female MC4 connectors; connectors can be cut for direct wiring to a solar charge controller.
• 5-busbar monocrystalline cells for improved efficiency and better performance in higher ambient temperatures; sealed aluminium frame and waterproof design for permanent outdoor use.
• Dimensions: 1462 x 668 x 35 mm (57.6 x 26.3 x 1.4 in); Weight: 13.3 kg (29.3 lb); 8 mounting holes, 9 x 11 mm (0.35 x 0.43 in).
• Suitable for charging 12 V batteries, powering motors/pumps and providing direct supply to non-sensitive equipment; ideal for camper vans, motorhomes, boats, sheds, farms and remote monitoring or telecoms.
• Designed to minimise power loss at high roof temperatures and provide long-lasting, consistent free power.

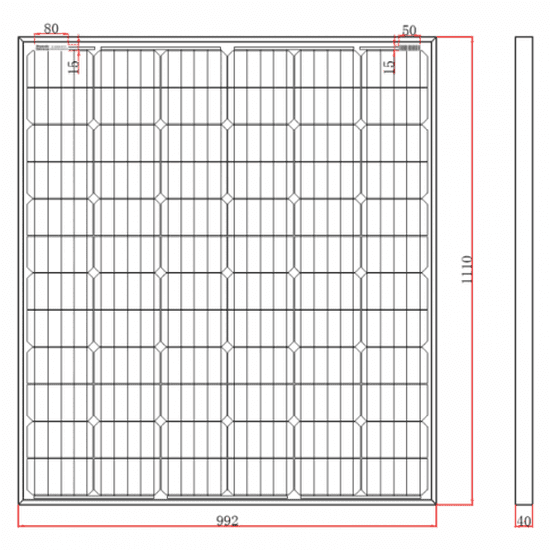

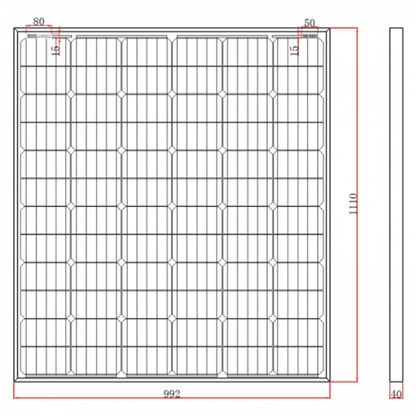

• Technical drawing of Photonic Universe 200W 12 V solar panel SWD-200M (Front) available to download.

Care & compatibility: clean periodically with fresh water and a soft cloth, avoid shading and ensure your chosen solar charge controller and cabling are rated for the panel's voltage and current.
