Remote MT11 display for 10A-30A DM dual battery MPPT | 4Boats

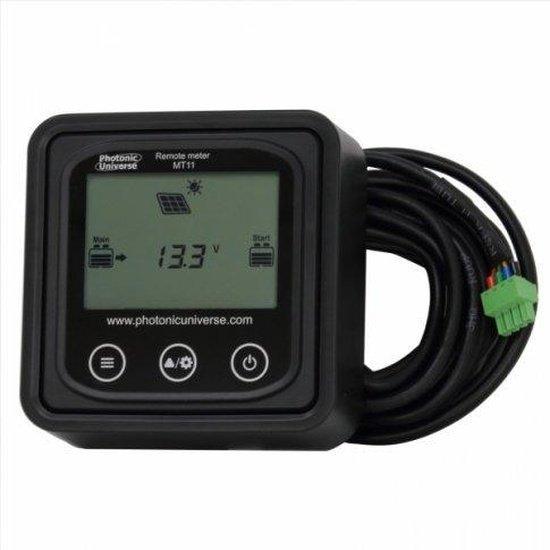

Remote MT11 panel display for DM series dual-battery MPPT solar charge controllers — provides real-time charging data and controls.

• Displays important charging parameters: battery and solar panel voltages, battery and solar panel current, battery state of charge, accumulated charge/discharge energy, minimum/maximum recorded voltage and temperature (controller or optional external sensor).
• Suitable for 10 A–30 A dual battery MPPT solar charge controllers (DM Series), including 10 A, 20 A and 30 A models.
• Specifications: suitable for 10 A–30 A DM Series; self-consumption 4–13 mA (depending on backlight); operating temperature -20°C to +70°C (-4°F to +158°F).
• Cable: RS485 connection, 5 m cable included for communication and operations.
• Size (without frame): 98.4 x 98.4 mm (with frame): 114 x 114 mm; weight: 110 g.
• Adjustable settings: change battery type and capacity, choose temperature unit, and track or reset the accumulated energy counter.
• Installation: designed for panel mounting — if flush mounted a recess is required in the mounting wall/surface; follow cut-out instructions in the manual.
• Contents: unit, 5 m RS485 cable and user manual; low power draw and simple retrofit installation for existing DM systems.

If you already have a DM series dual-battery MPPT controller this remote can be added at any time — simply connect the supplied 5 m RS485 cable to the controller's RS485 socket and follow the manual for wiring and settings.
