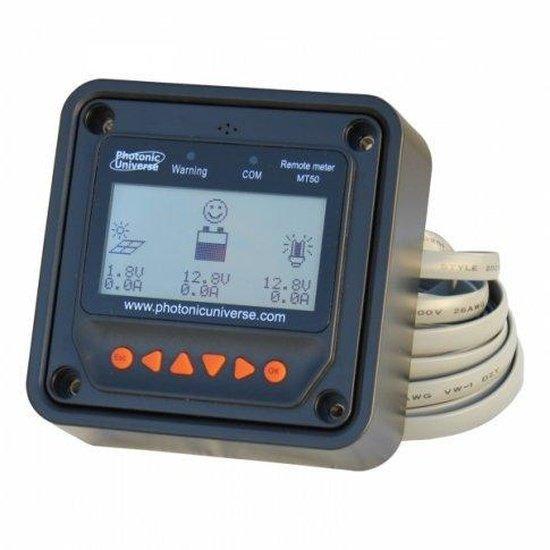

Remote MT50 Meter for MPPT & PWM Solar Controllers | 4Boats

Compact Remote MT50 display for remote monitoring and advanced configuration of compatible MPPT and PWM solar charge controllers.

• Adjustable parameters: amend the battery type and capacity.
• Select charging voltages for different charging stages.
• Specify the duration of each charging stage.
• Create a user-defined battery profile.
• Personalise load settings. Timers for lighting, fans and pumps can be configured.
• The display shows PV and battery voltage, charge current, state of charge (SOC) and error codes.
• Self-diagnostic capability. The unit highlights system errors using advanced fault-targeting technology.
• Removable external frame for flush or surface mounting. Wall mounting frame with mounting holes included.
• Compatibility: Suitable for our high-efficiency MPPT and PWM solar charge controllers, including TR and PTR series (models TRxxxxBN, TRxxxxAN and PTRxxxxAN), VS series (models VSxxxxBN), PU series (models PUxxxxB) and PU waterproof (models PUxxxxBW). A compatibility cable is required.
• Connection: RJ45 (8-pin) communication cable — 5 metres included. Controllers with an RS485 port require an RS485→RJ45 adapter for connection.
• Please note: This remote meter is not suitable for dual battery solar charge controllers.
• Specifications: Suitable for MPPT and PWM solar charge controllers TR/PTR/VS/PU/LS Series. Self-consumption 15–65 mA (depending on backlight settings).
• Environmental & dimensions: Operating temperature -20°C to +70°C (-4°F to 158°F). Size without frame 10 x 10 x 3 cm (3.9 x 3.9 x 1.2 in). Size with frame 12 x 12 x 5 cm (4.7 x 4.7 x 2.0 in). Weight 230 g (0.51 lb).
• Installation: The unit comes with a detailed user manual which explains connection and operation.

For best results plug the supplied RJ45 cable into a controller RJ45 socket. Use an RS485→RJ45 adapter where required. See the manual for full compatibility and installation information.
