Scanstrut ScanPod ScanPod ScanPod SPH | SYSTEM | W Helm Pod | 4Boats

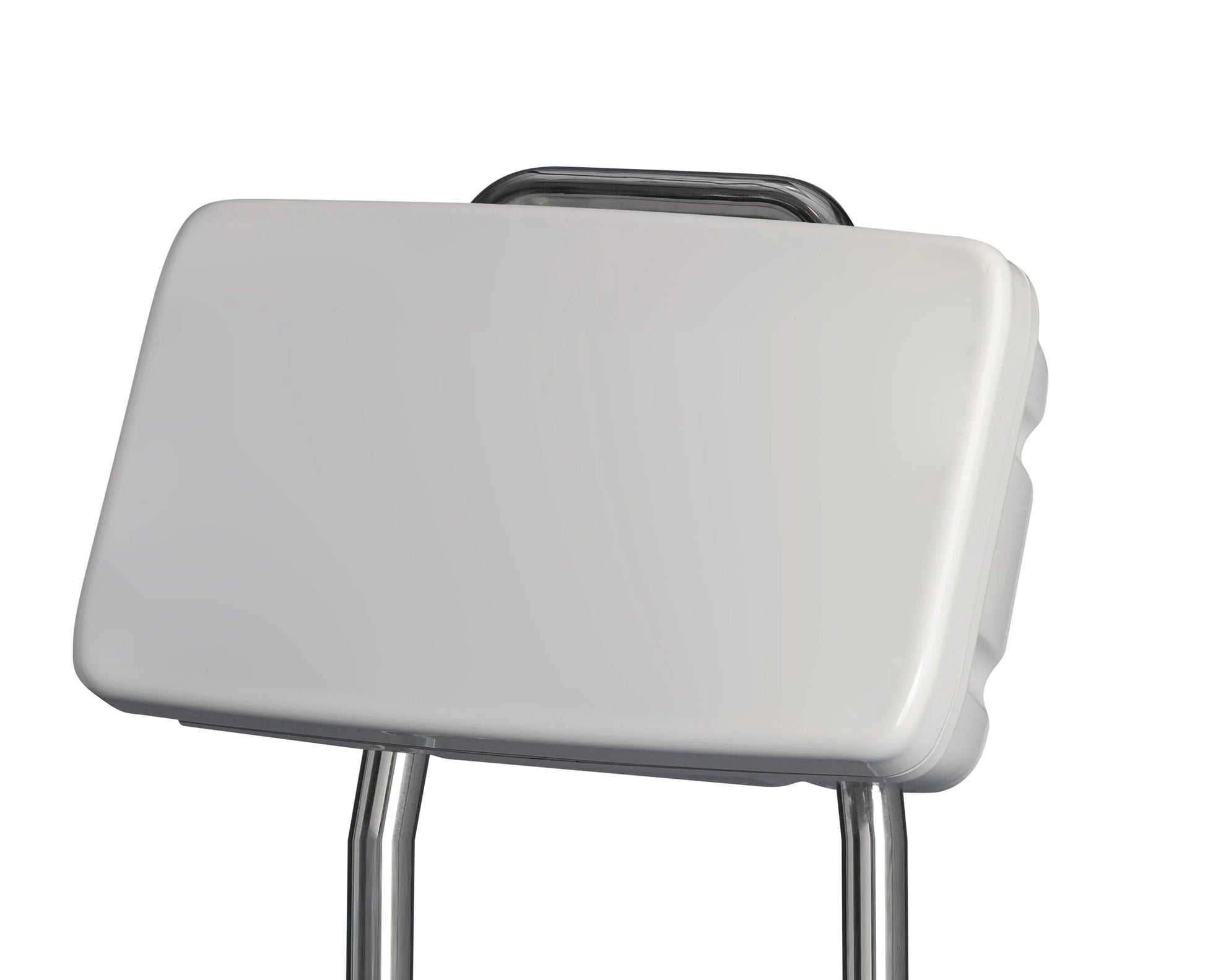

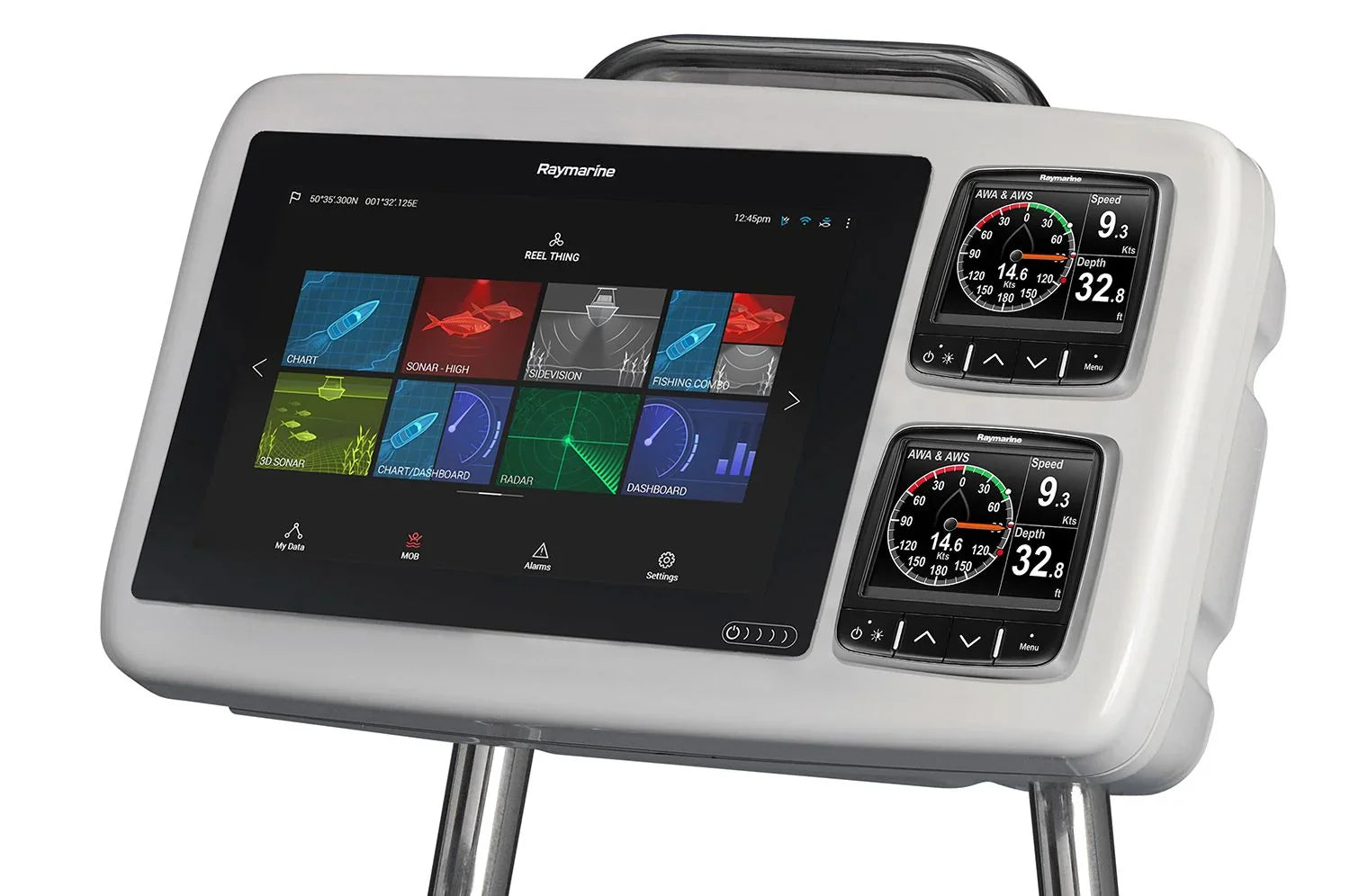

Scanstrut ScanPod SPH-SYSTEM-W helm pod mounts a display and two standard instruments on pedestal rails, delivering a secure, watertight and service‑friendly installation.

• Fits up to 305 mm (12") displays and two standard instruments
• Mounts to pedestal rails 25 mm to 33.7 mm (0.98" - 1.33") diameter
• Saddle system supports stainless tubing for a secure, rigid fit and watertight cable entry
• No-drill fixing kit with customised u-bolts that clamp around the rail into the saddles
• Back-to-front fixings cut threads into moulded ABS inserts for quick install and repeat servicing
• Pod seal made from high tear-strength silicone; heat and UV resistant
• Supplied uncut; factory cutting service available for a small charge
• Technical drawing (PDF)
