Scanstrut TILE TILE TILE USB | C + USB | A Interior Socket 12 | 4Boats

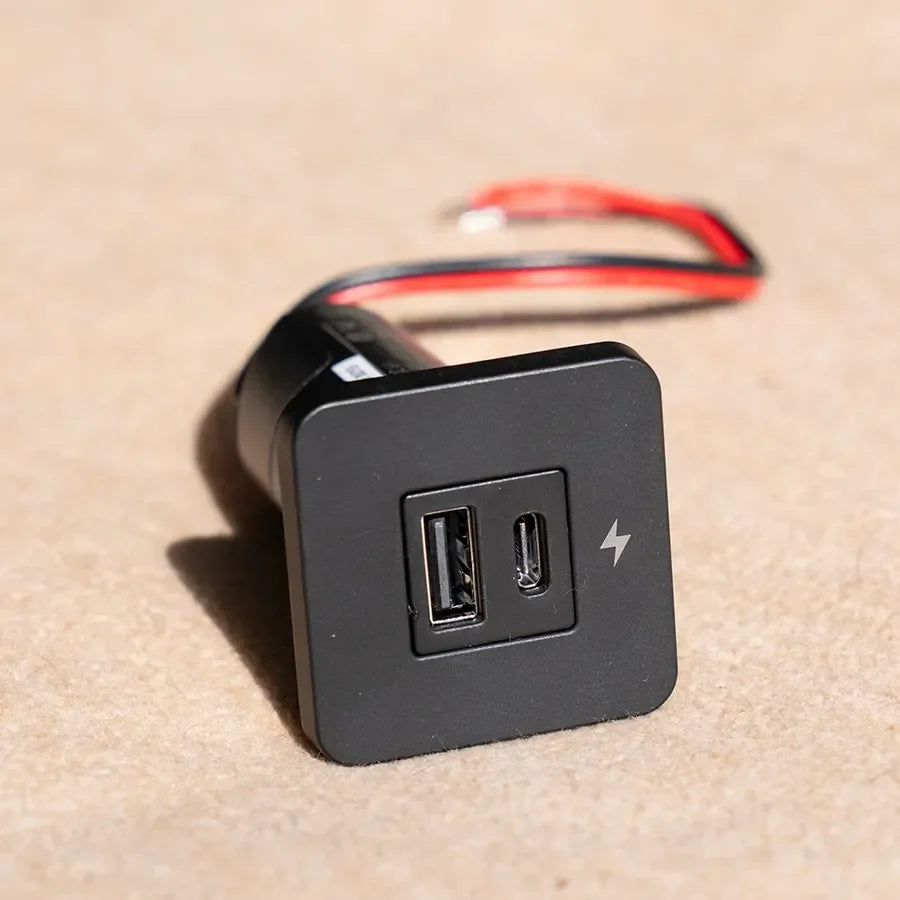

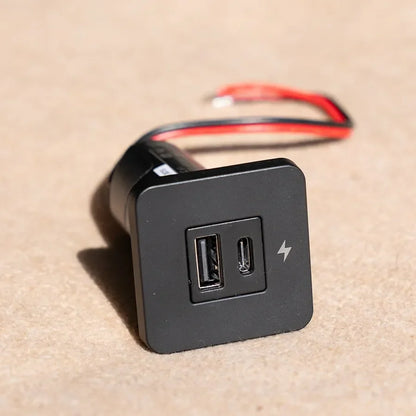

The Scanstrut TILE Series delivers a compact, high-performance interior charging socket designed to blend into luxury marine cabins while providing fast, reliable power to modern devices.

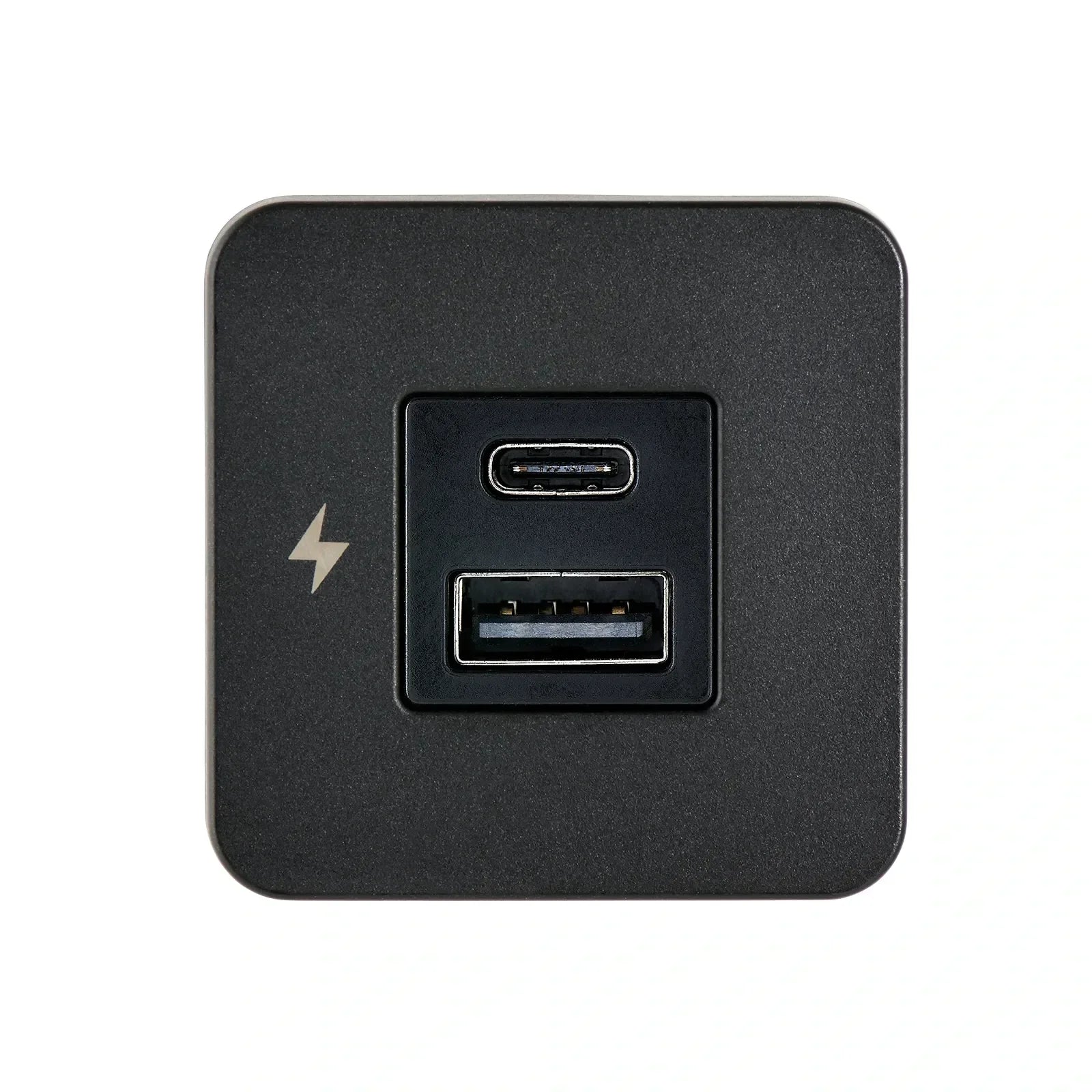

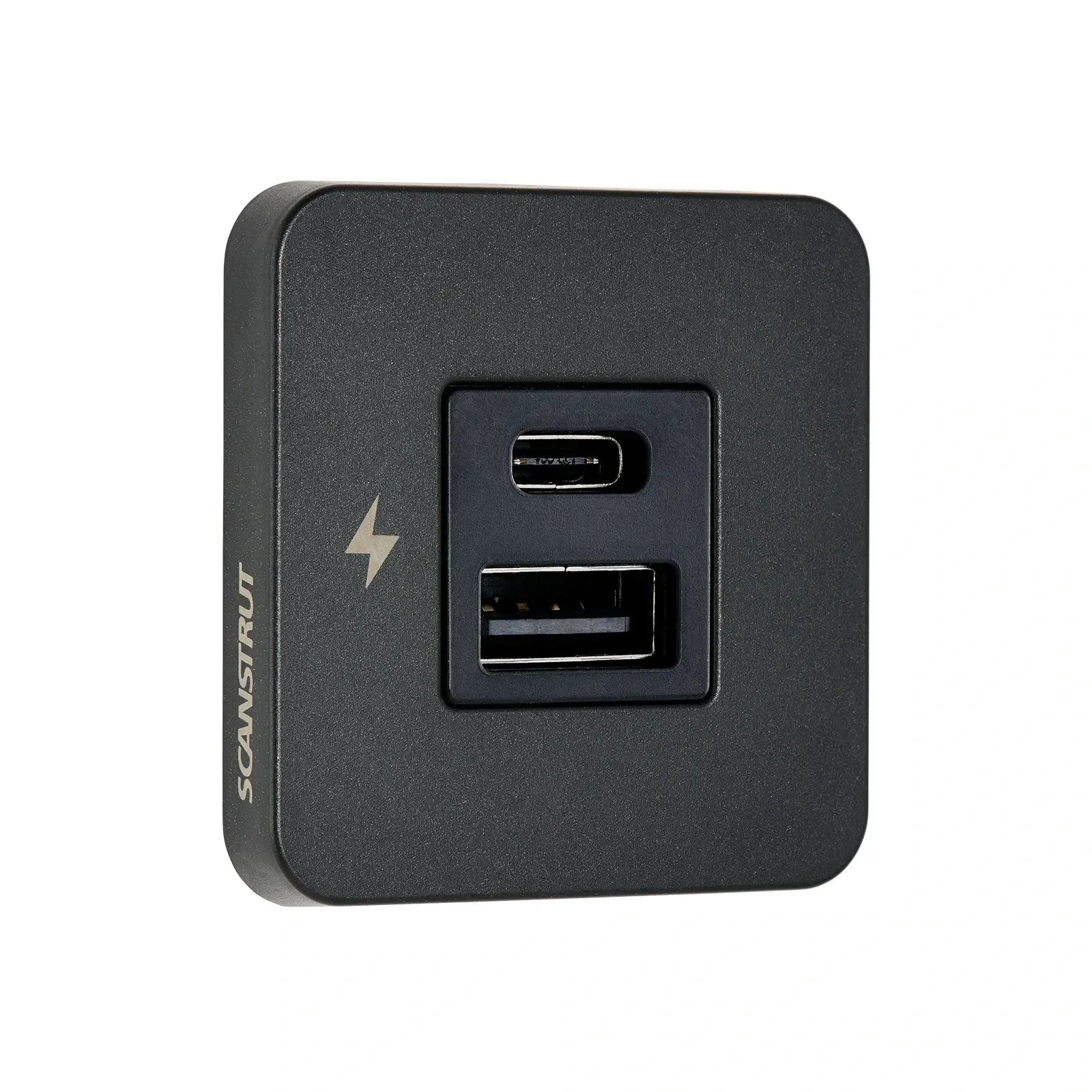

• Ports: 1× USB‑C (Power Delivery) + 1× USB‑A - charges up to two devices simultaneously.
• Footprint: 40 mm (1.57")
• Cut‑out: requires 29 mm (1.14") hole saw
• Power: USB‑C (PD) up to 60W max on 24V systems / up to 36W max on 12V systems; USB‑A 5V / 2.4A (12W). Combined (shared) maximum: 60W on 24V, 36W on 12V - USB‑A draw reduces available USB‑C power.
• Charging protocols: USB Power Delivery on USB‑C; USB‑C port supports USB‑C to USB‑C and USB‑C to Lightning cables; USB‑A supports standard USB‑A charging (BC 1.2 / QC-compatible).
• Compatibility: Designed for 12-24V onboard electrical systems. Note: many laptops require >36W - on 12V systems laptop charging may be limited.
• Installation notes: Black low‑profile bezel. Recommended fused connection: 5A inline fuse; recommended cable: 18-20 AWG stranded marine cable. Ensure safe mounting behind panels and avoid exposure to moisture.
• Certifications & warranty: CE / UKCA / RoHS (where applicable). 2-year limited warranty.
• Warning: interior use only - do not install where water exposure is possible.

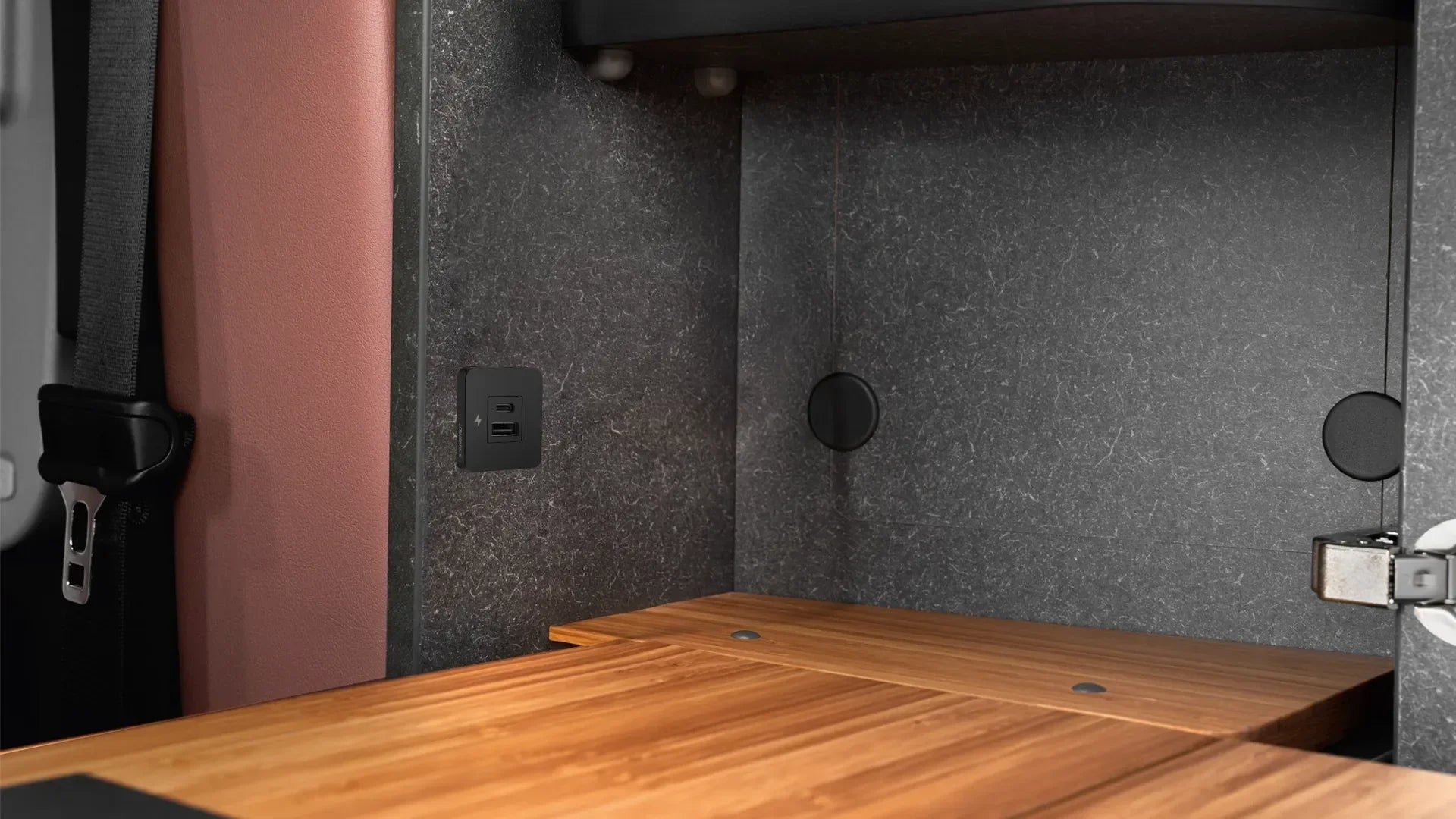

Easy to install and ideal for modernising yacht and boat interiors with a discreet, powerful charging solution.
