SEAFLO Bilge Alarm Control System 12V 20A | 4Boats

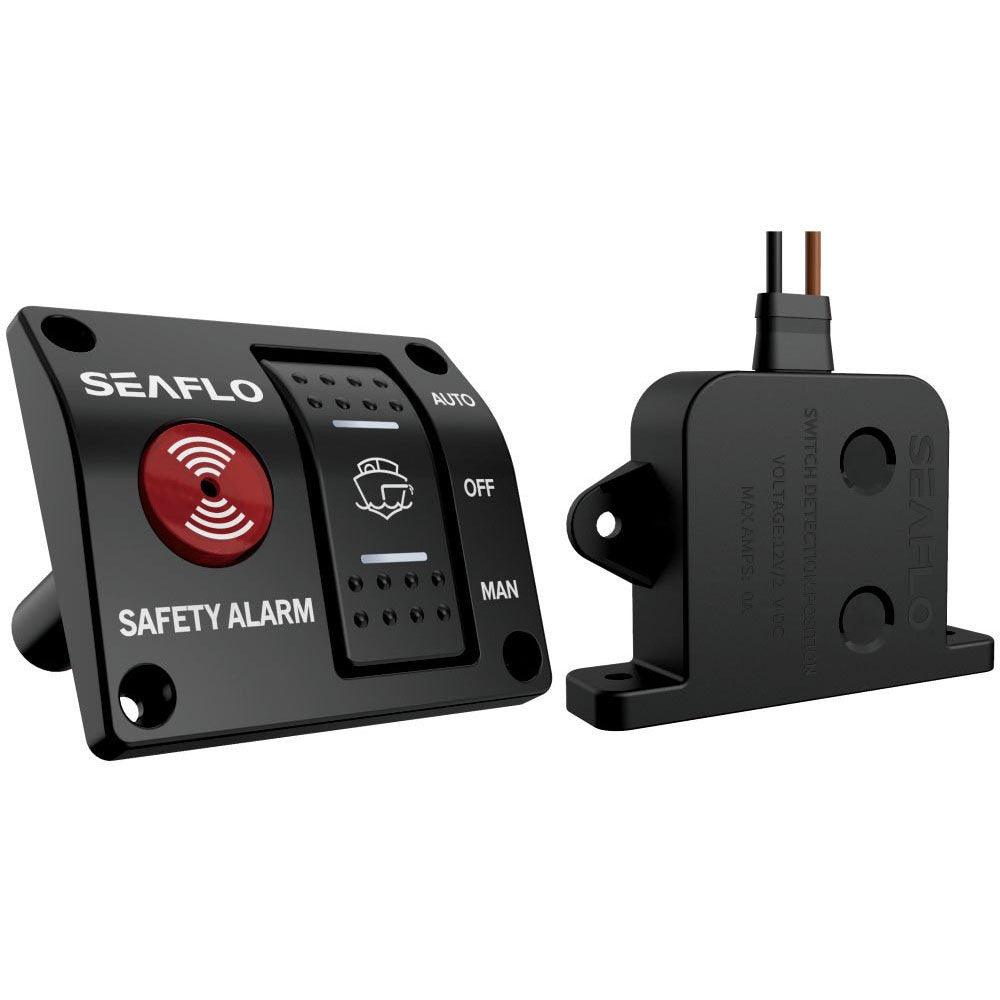

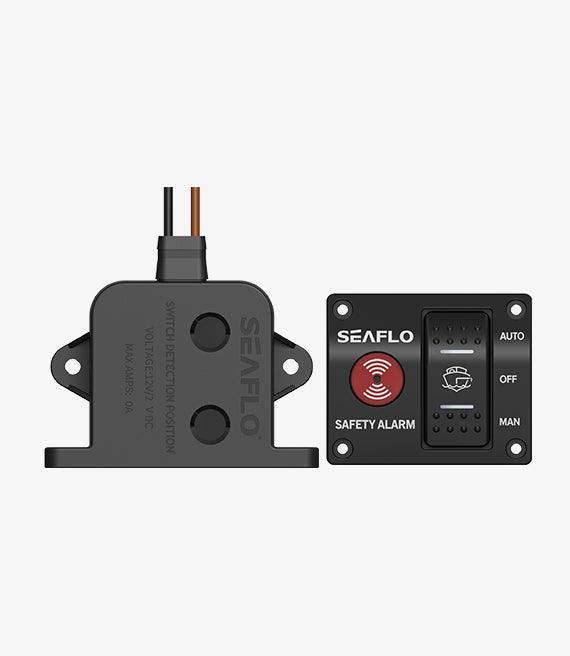

SEAFLO Bilge electronic water-level alarm control system for reliable bilge monitoring and pump switching.

• Voltage: 12 V / 24 V; Amps: 20 A (12 V) / 10 A (24 V).
• Wire gauge: 16 AWG (switch) / 16 AWG (alarm); wire leads: 1000 mm (39.4") switch / 100 mm (3.9") alarm.

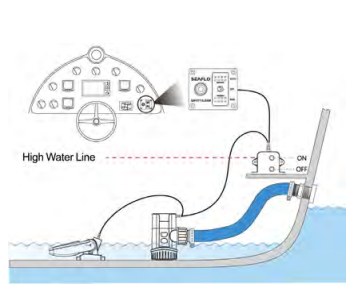

• Switch activation at 41.0 mm (1.6") and deactivation at 9.5 mm (0.37").
• Electric-field bilge switch rated for SEAFLO bilge pumps up to 20 A (12 V) and 10 A (24 V).
• 3-second delay to prevent false starts; audible alarm 85 dB.
• Totally sealed detector — no contact with water; unaffected by oil or debris.
• Environmentally sensitive: no mercury and no moving parts.
• Unique 3-way panel switch with piezo disable and visual/audible indicators.

Click to download the manual: Manual Download.
