SEAFLO Bilge High Water Alarm 12/24V 95 dB 20A/10 | 4Boats

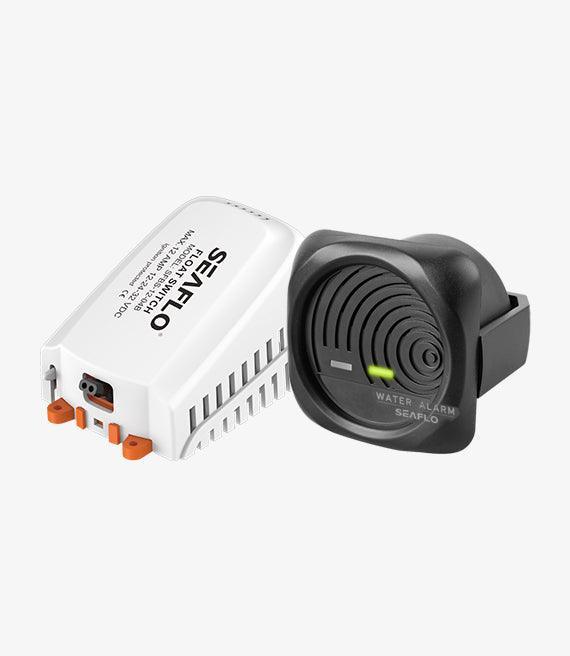

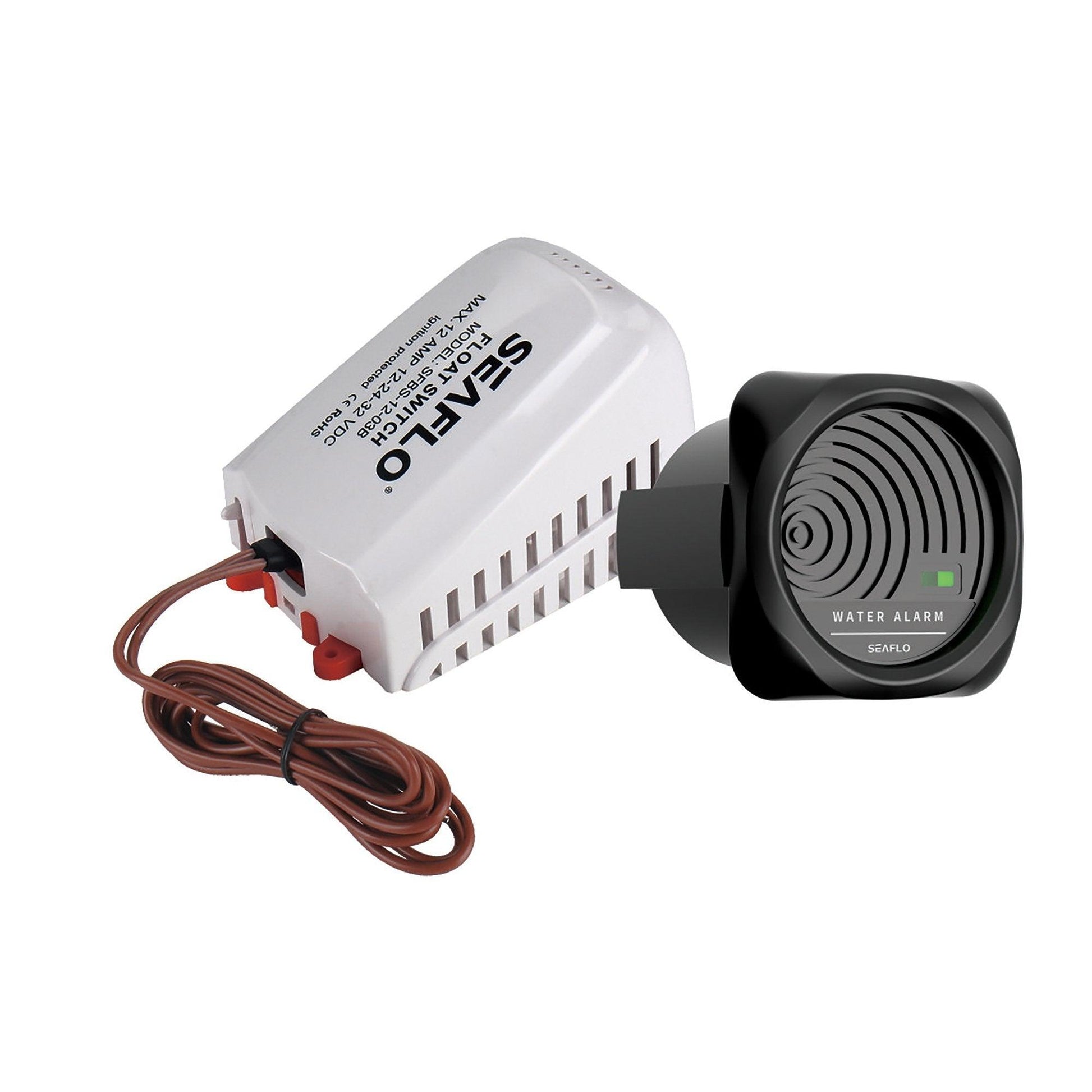

SEAFLO high water bilge alarm with float switch and in-dash visual and audible alert, designed for continuous monitoring of unmanned compartments.

• High water level alarm / bilge pump alarm / float switch alarm system.
• Voltage: 12V/24V — Pump rating: 20A (12V) / 10A (24V); rated to handle pumps up to these limits.
• Wire gauge: 16 AWG (switch) / 28 AWG (alarm). Wire leads: 1000 mm (39.4 in) (switch) / 150 mm (5.9 in) (alarm).
• Activation: turns on at 45–55 mm (1.77–1.97 in); turns off at 20–25 mm (0.79–0.98 in).
• 95 dB in-dash visual and audible alarm; non-mercury float switch with filter housing to keep debris out.
• Allows additional SEAFLO float switches to be added for monitoring extra compartments.
• 2-year global warranty.

Click below to download the manual: Manual Download
