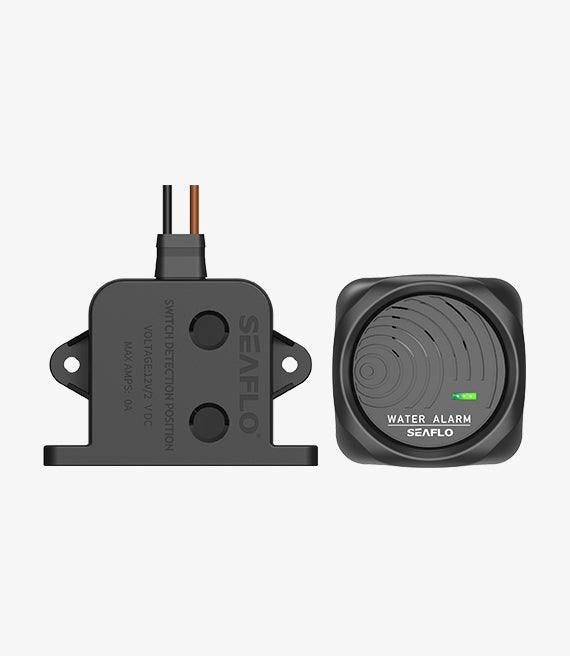

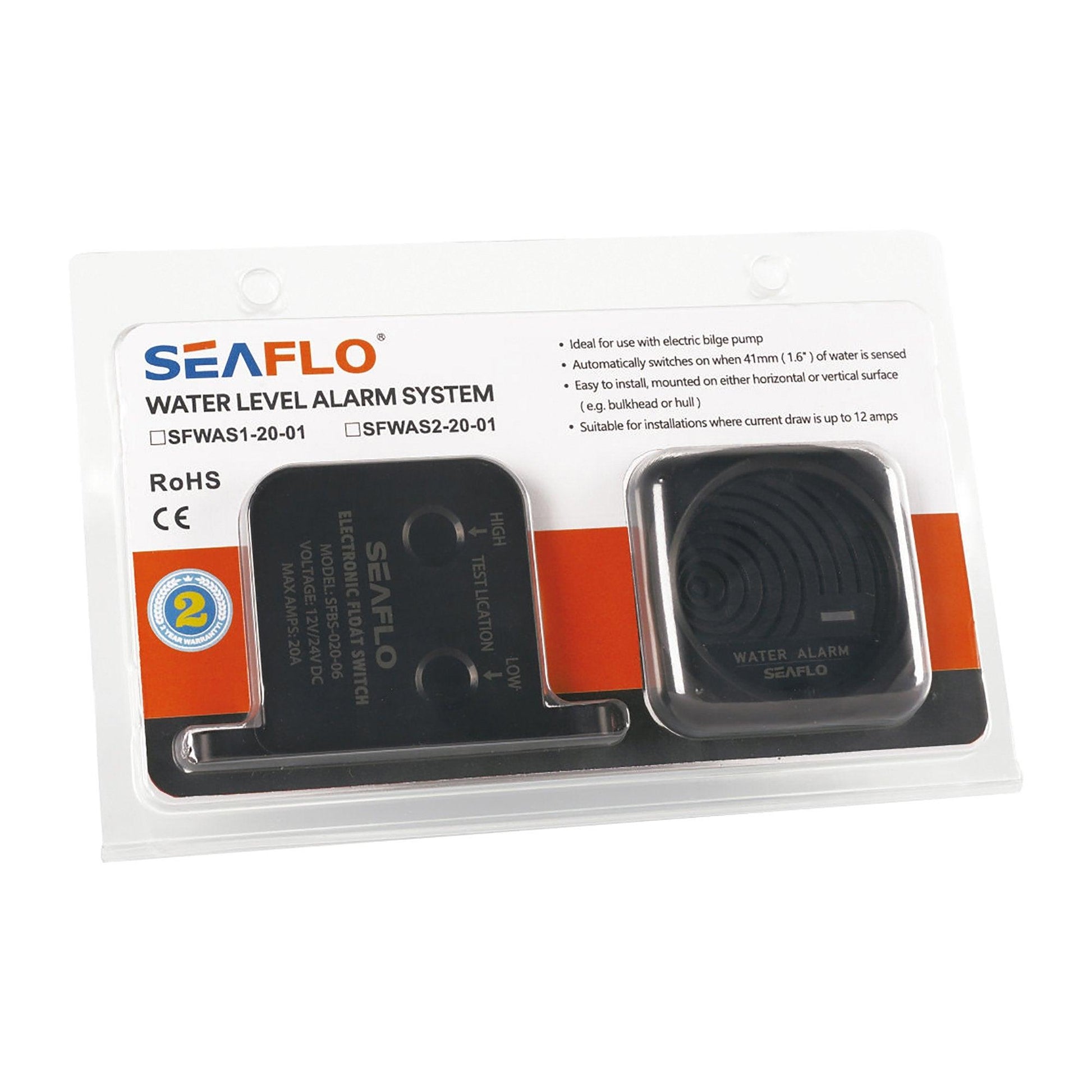

SEAFLO Bilge Water Level Alarm 12/24V 20A/10A | 4Boats

SEAFLO bilge water level alarm system for boats — visual and audible alert to warn of rising bilge water.

• Marine liquid level alarm with visual and audible alert for bilge pump activation
• Voltage: 12 V / 24 V; Current rating: 20 A / 10 A
• Wire gauge: 18 AWG (switch) / 28 AWG (alarm); Wire lead: 1000 mm (switch) / 150 mm (alarm)
• 95 dB alarm with red signal light and 3 second delay to prevent false starts
• No moving parts — sealed solid-state electronics with an electric field detector
• Switch activates pump at 41 mm (1.6") and deactivates at 9.5 mm (0.37")
• Includes electric field bilge switch and 95 dB alarm as a safety reminder device

Click below: Manual Download
