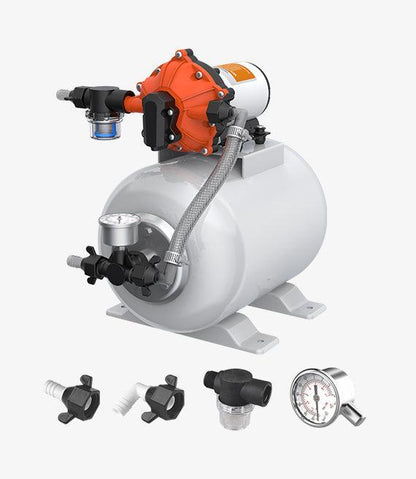

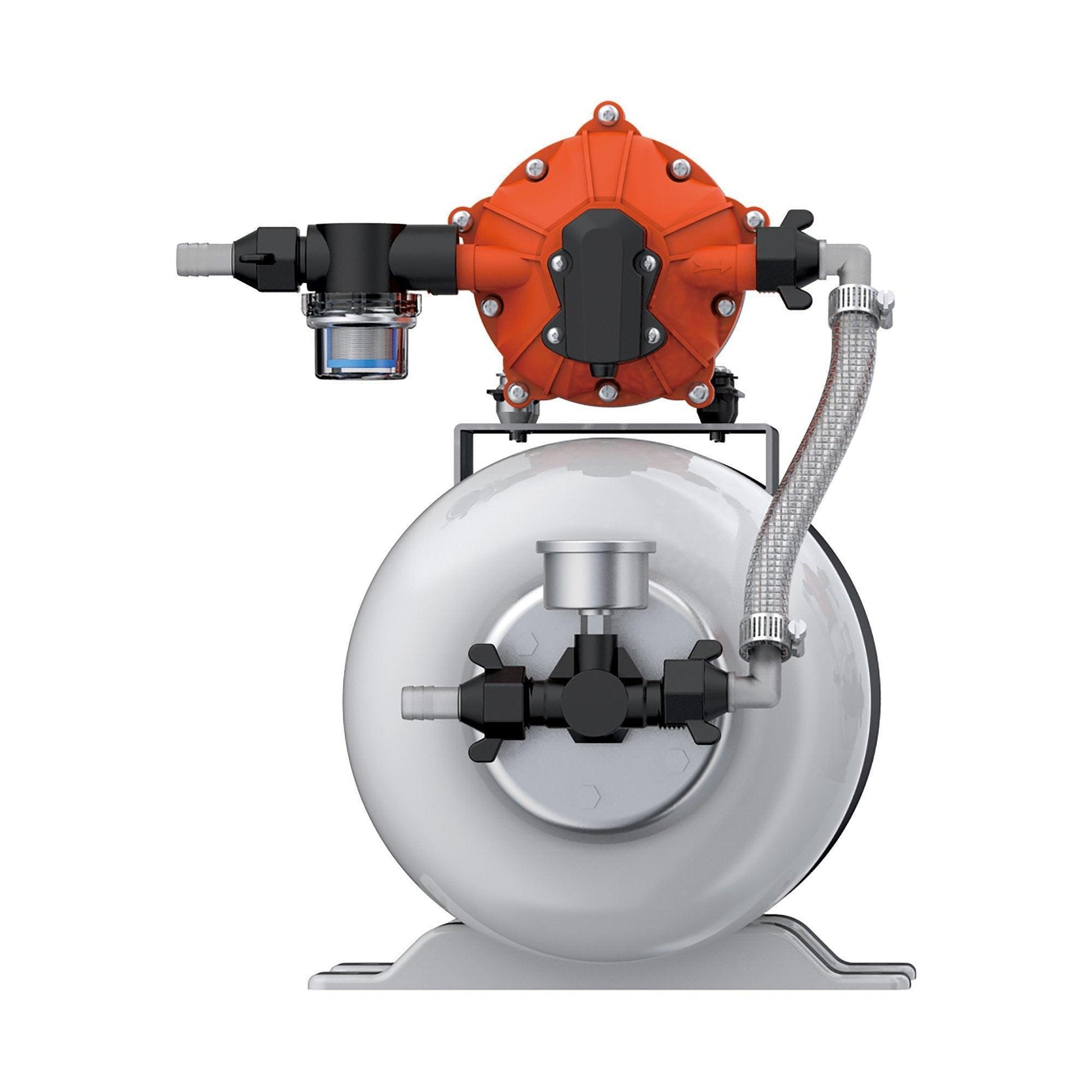

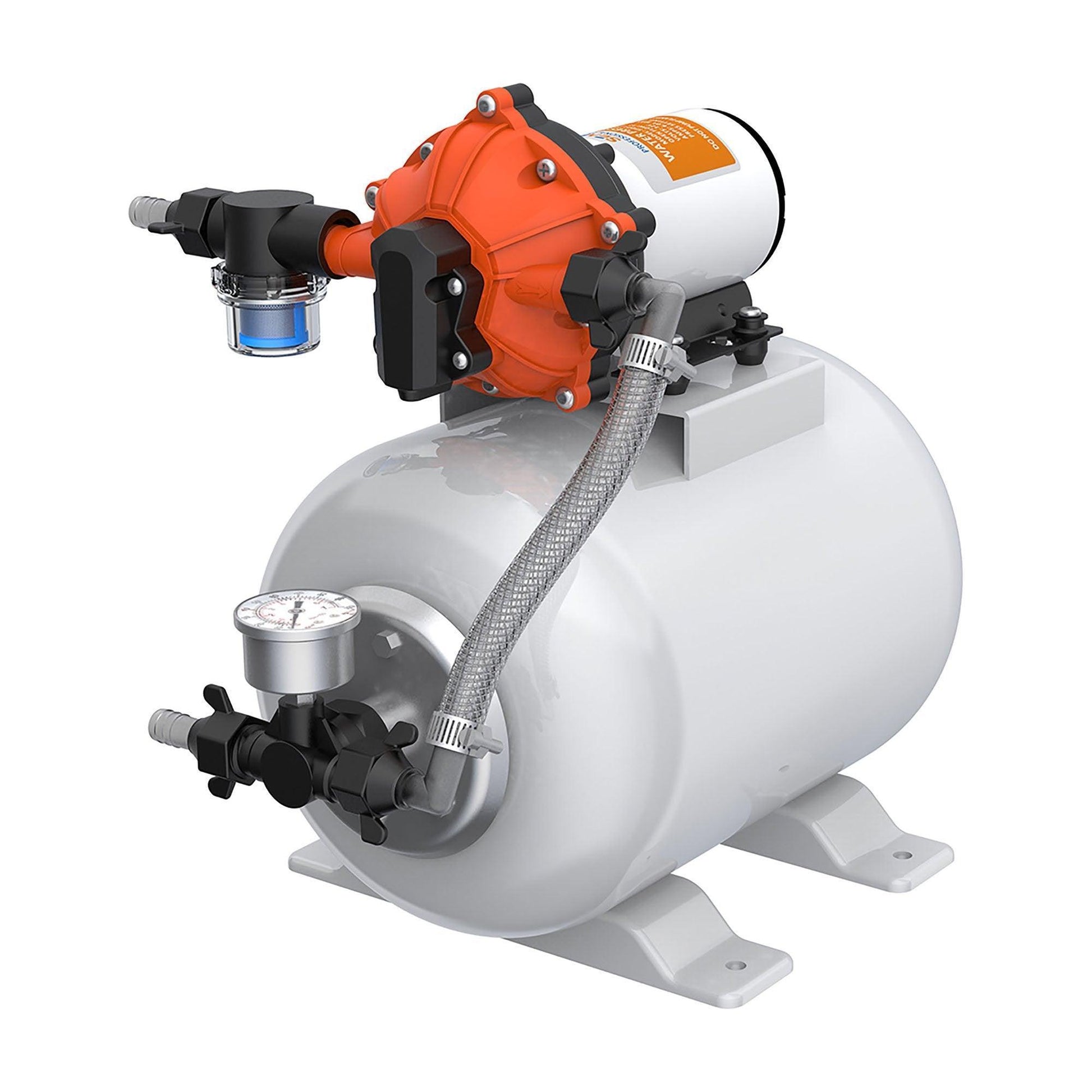

SEAFLO Booster Pump & 8L Accumulator 12/24V | 4Boats

Compact pre-assembled pressure boost system with an 8L accumulator and a five-chamber diaphragm pump for quieter, longer-lasting marine water supply.

• Voltage: 12V / 24V

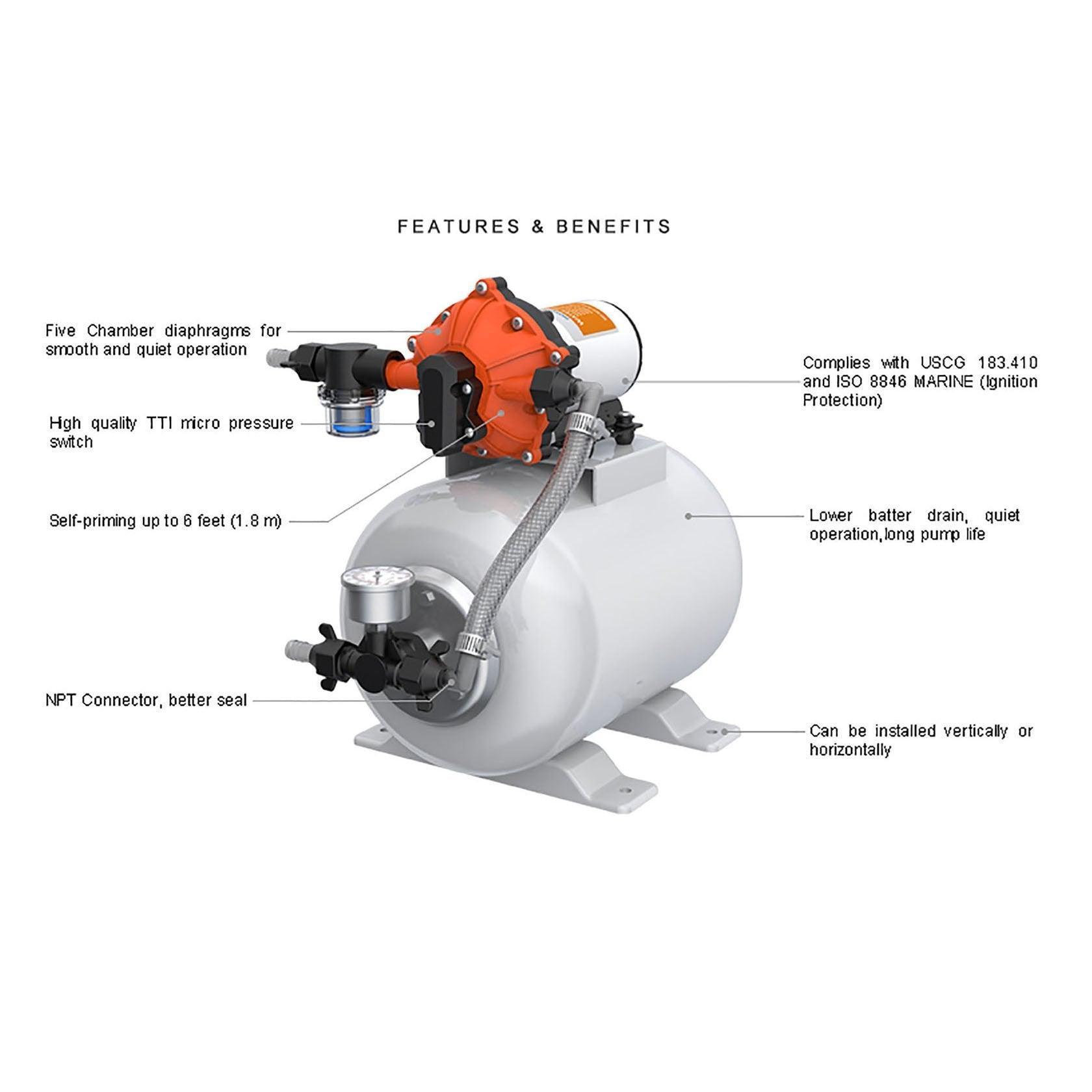

• Open flow: 11.3-18.9 L/min (3.0-5.0 GPM); self-priming to 1.8 m (6 ft); five-chamber diaphragm for smooth, quiet flow
• Tank volume: 8L (≈2.1 US gal)
• Pressure off (cut-out): 4.2 bar (60 PSI); pressure on (cut-in): 2.8 bar (40 PSI)
• Inlet/outlet size: 1/2" barb (13 mm)
• Materials: EPDM valves; Santoprene diaphragm
• Quick-connect wiring on rubber-mounted board; ignition protected to USCG 183.410 & ISO 8846

Fully assembled kit serves 3+ outlets; Manual Download.
