SEAFLO Pressure 23A 24V Diaphragm Pump — 2. | 4Boats

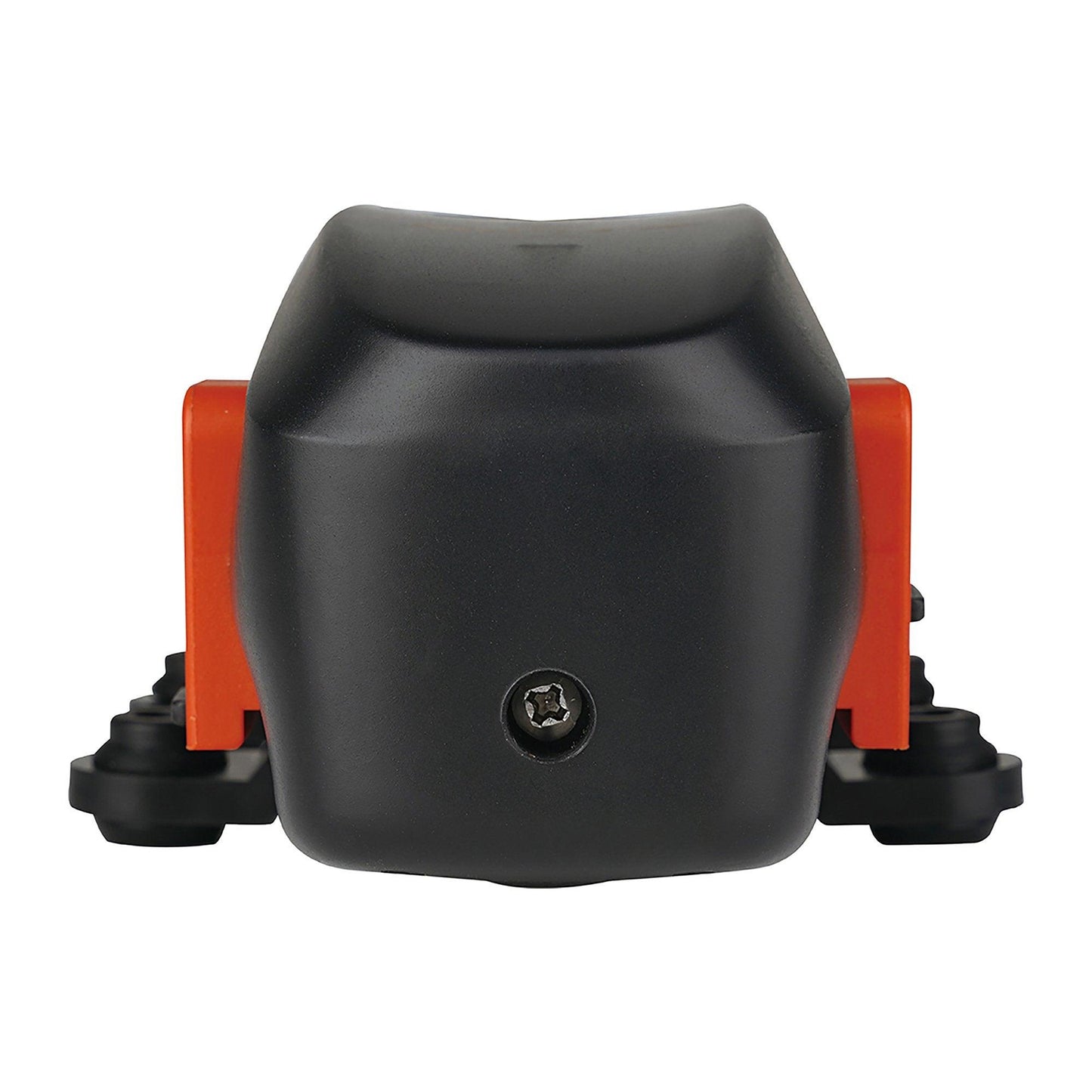

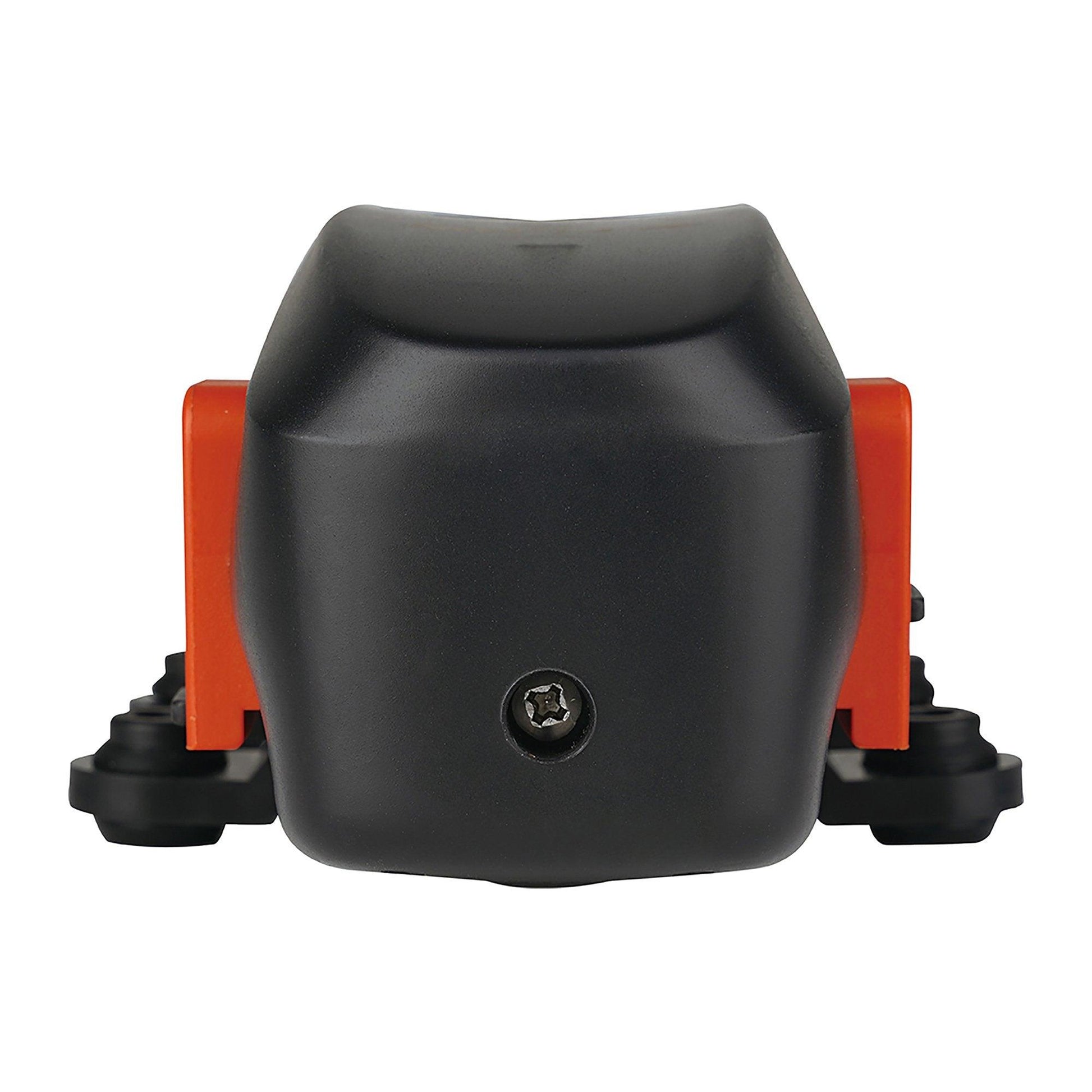

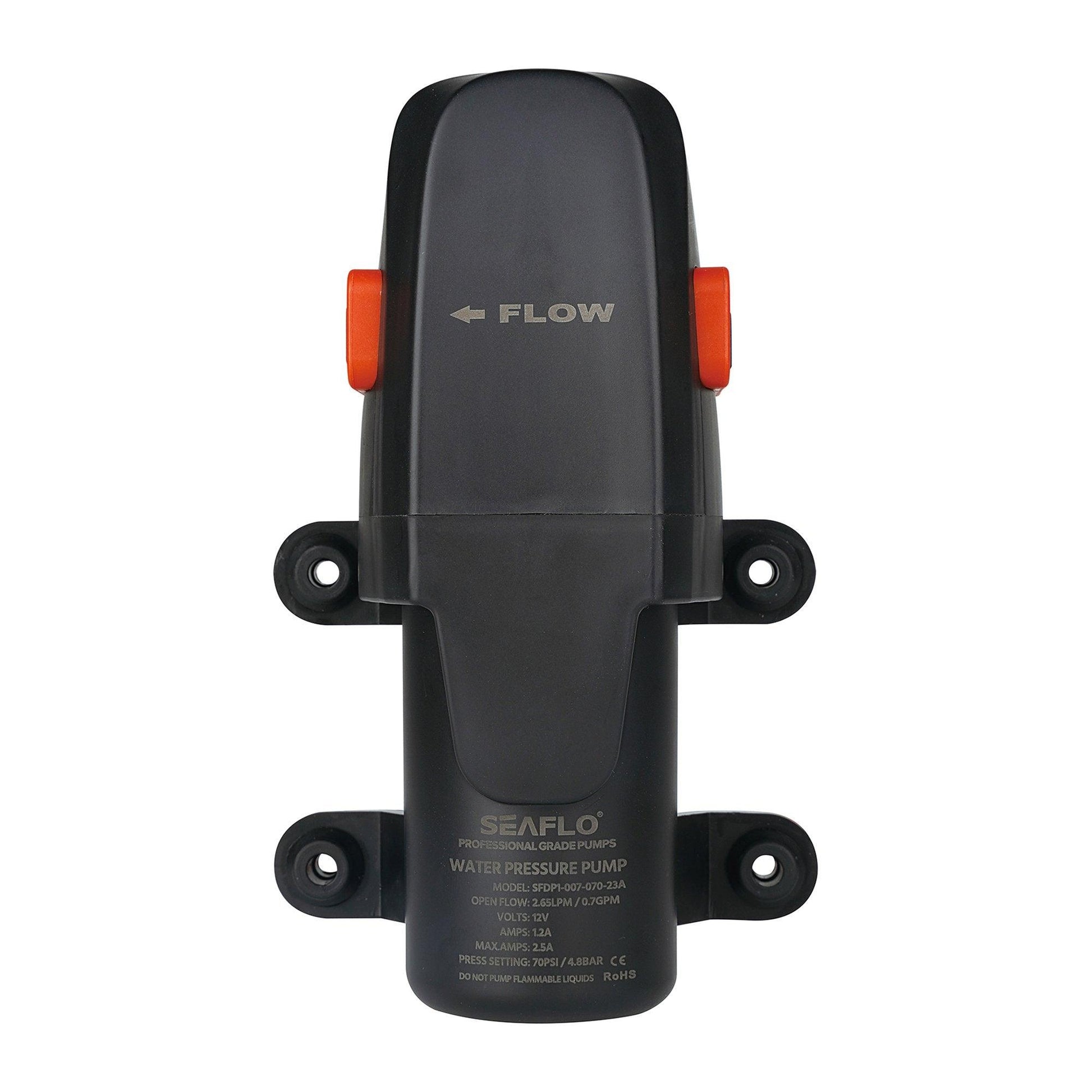

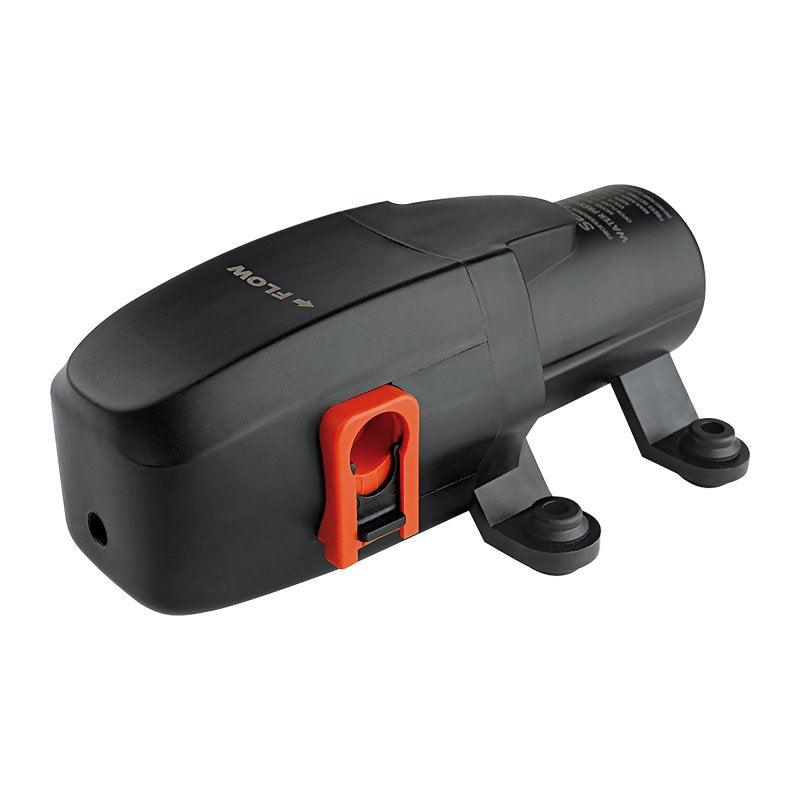

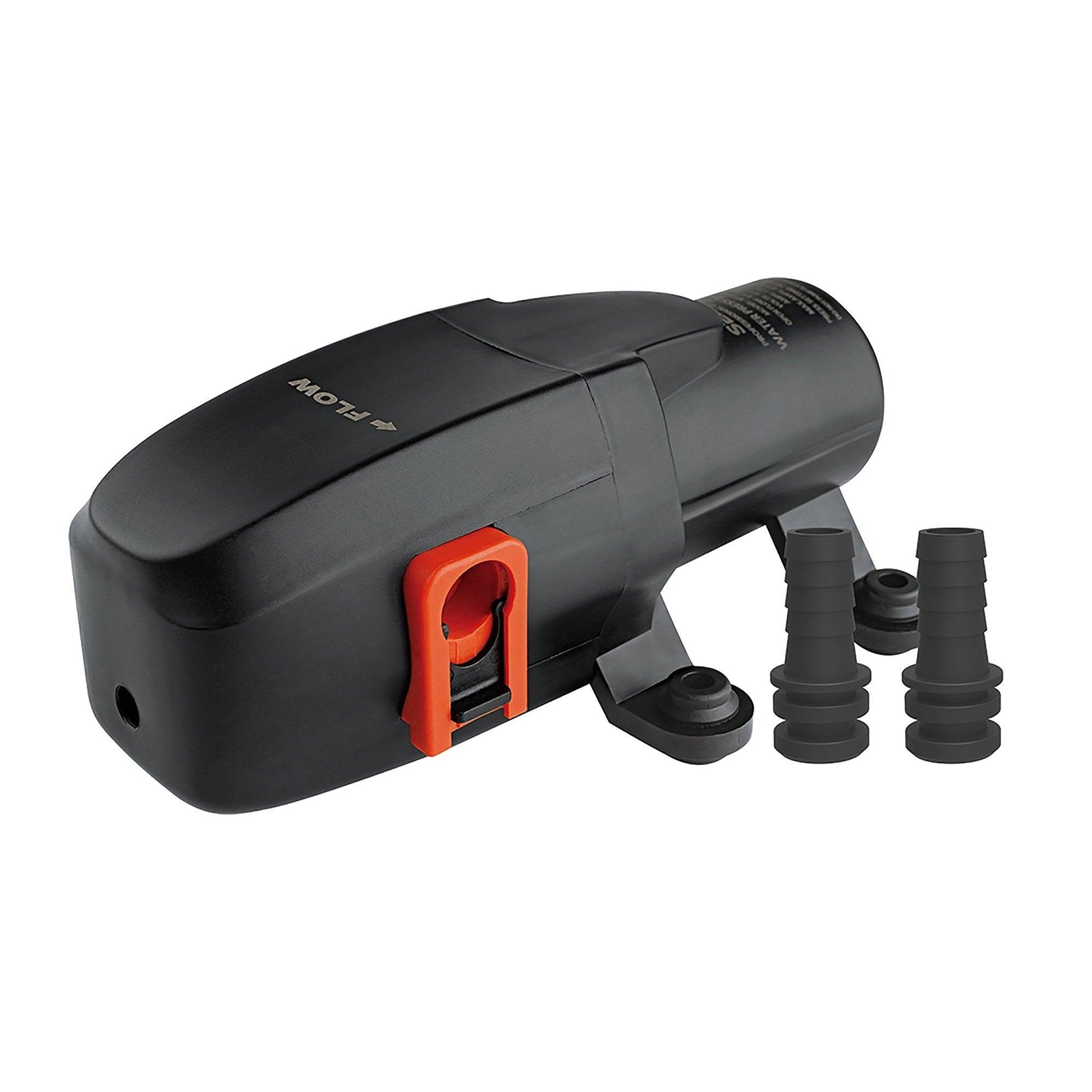

SEAFLO Pressure 23A Series 24V automatic diaphragm pump delivering 2.6 L/min (0.7 gpm) and up to 4.8 bar (70 PSI); compact, ignition‑protected and designed for quiet marine use.

• The water pressure pump - 23A series has: a 2‑chamber diaphragm pump, an on‑demand long‑life pressure switch; self‑priming and capable of being run dry.
• Flow 2.6 L/min (0.7 gpm); voltage 24V; max draw 1.2 A; priming 0.6 m (2').
• Shut‑off/restart settings — 35 PSI model: restart 25 PSI ±5 PSI (±0.3 bar); 40 PSI model: restart 30 PSI ±5 PSI (±0.3 bar); 70 PSI model: restart 56 PSI ±5 PSI (±0.3 bar).
• Valves: EPDM; diaphragm: Santoprene; inlet/outlet ports: 5/8" quick connector.
• Bypass technology reduces cycling; industry‑standard mount pattern; marine‑grade sealed wiring.
• Waterproof grade IP54 with extra cover; temperature limit 60°C (140°F).
• Ignition protected, quiet running with rubber feet for vibration and noise reduction.
• Approvals CE, RoHS and supplied with a 4‑year warranty.

See technical documentation for installation and spares; suitable for freshwater marine systems and compact installations.
