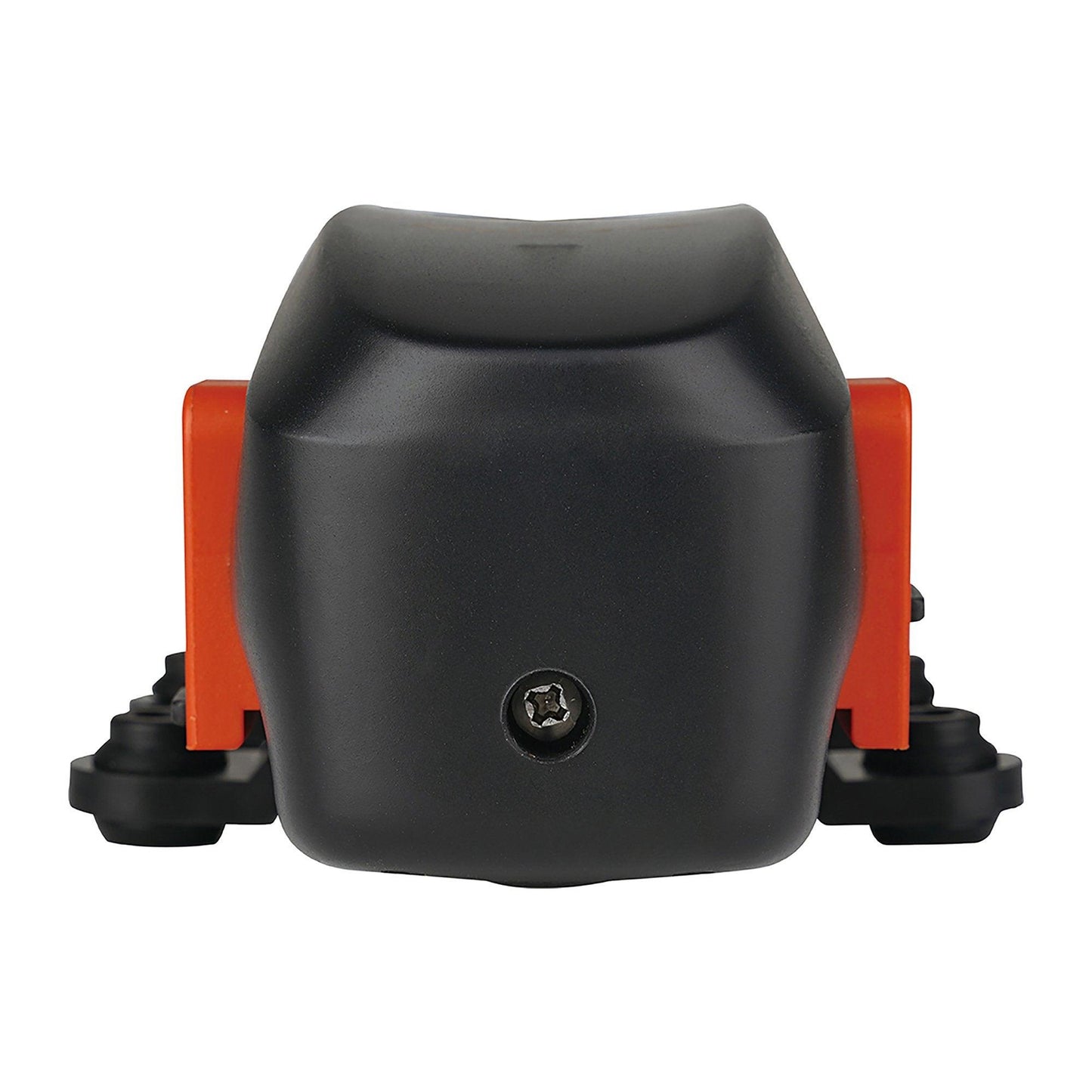

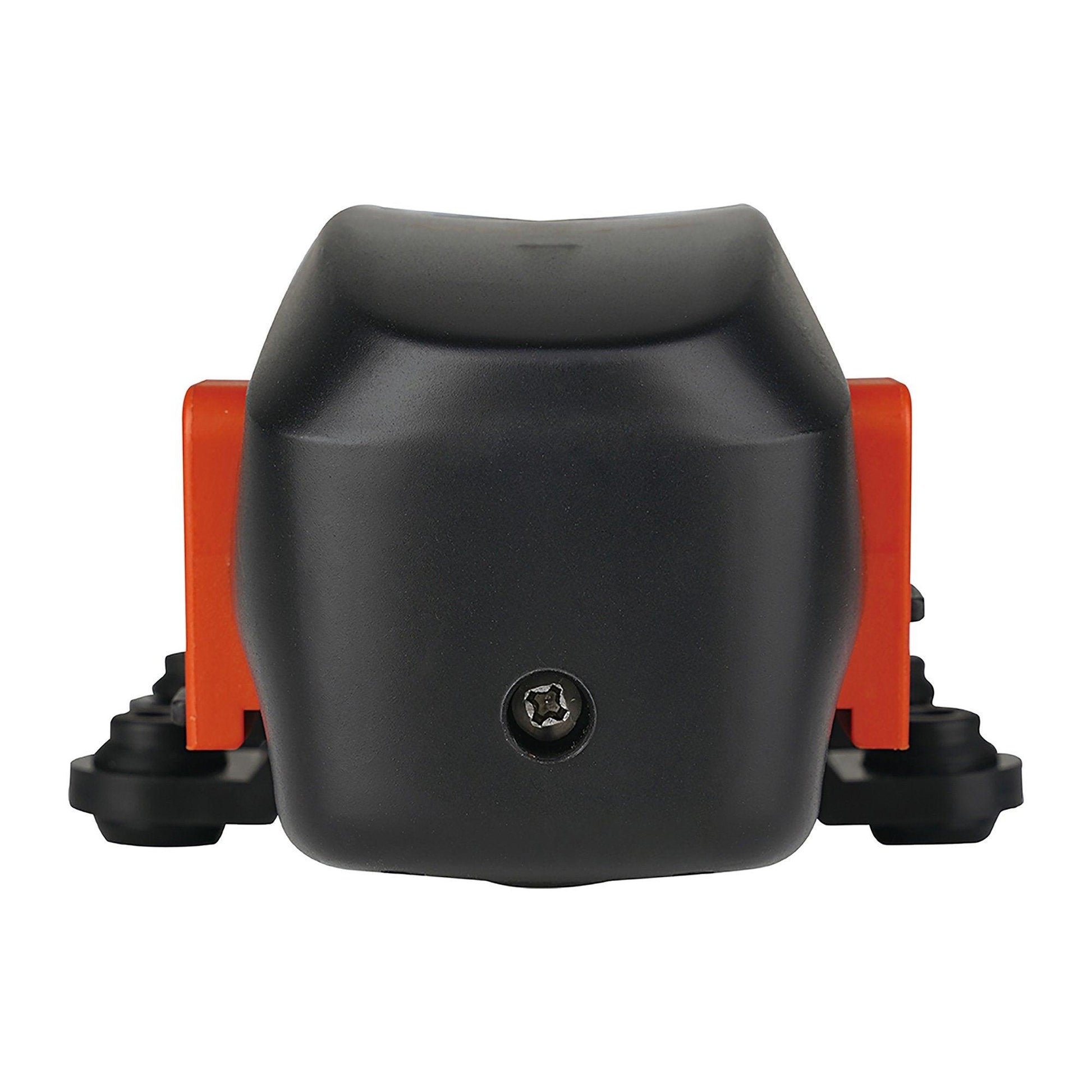

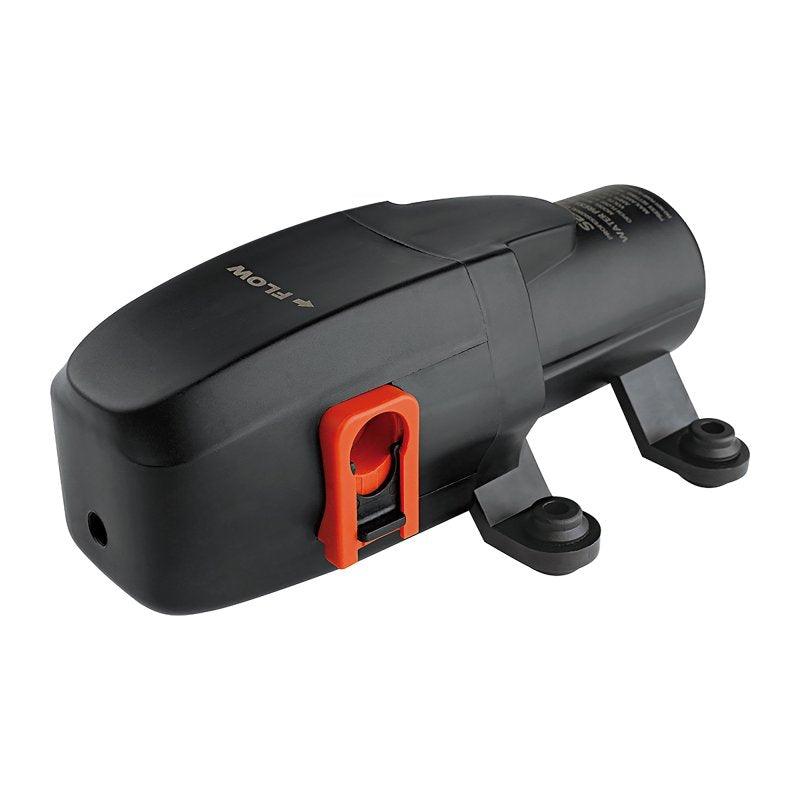

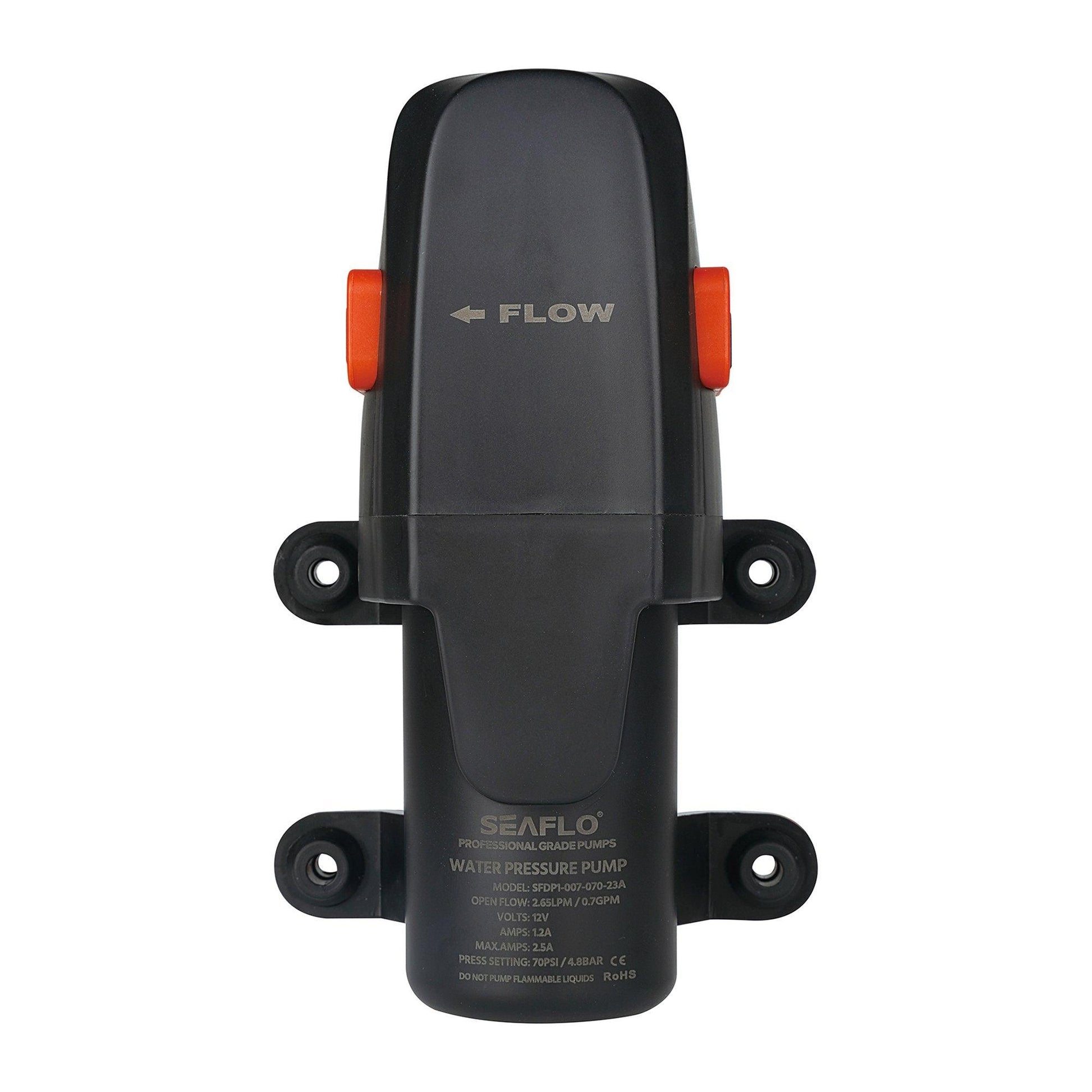

SEAFLO Pressure 23A 24V Pump 1.9 L/min (0.5 GPM) 4.8

Compact automatic demand diaphragm pump for marine and caravan use — 24 V, 1.9 L/min (0.5 GPM), quiet, ignition‑protected and vibration‑damped.

• 24 V DC; flow 1.9 L/min (0.5 GPM); max draw 1.0 A
• The water pressure pump - 23A series has a 2‑chamber diaphragm and an on‑demand long‑life pressure switch; self‑priming and capable of running dry
• Valves: EPDM; Diaphragm: Santoprene; inlet/outlet ports: 5/8" quick‑connect
• Shut‑off pressures: 35 PSI → 25 PSI ±5 PSI (±0.3 bar); 40 PSI → 30 PSI ±5 PSI (±0.3 bar); 70 PSI → 56 PSI ±5 PSI (±0.3 bar)
• Priming capability 0.6 m (2'); waterproof rating IP54 with extra cover; 60°C (140°F) temperature limit
• Bypass technology reduces cycling; switch & bypass control; industry‑standard mount pattern and marine‑grade blocked wiring

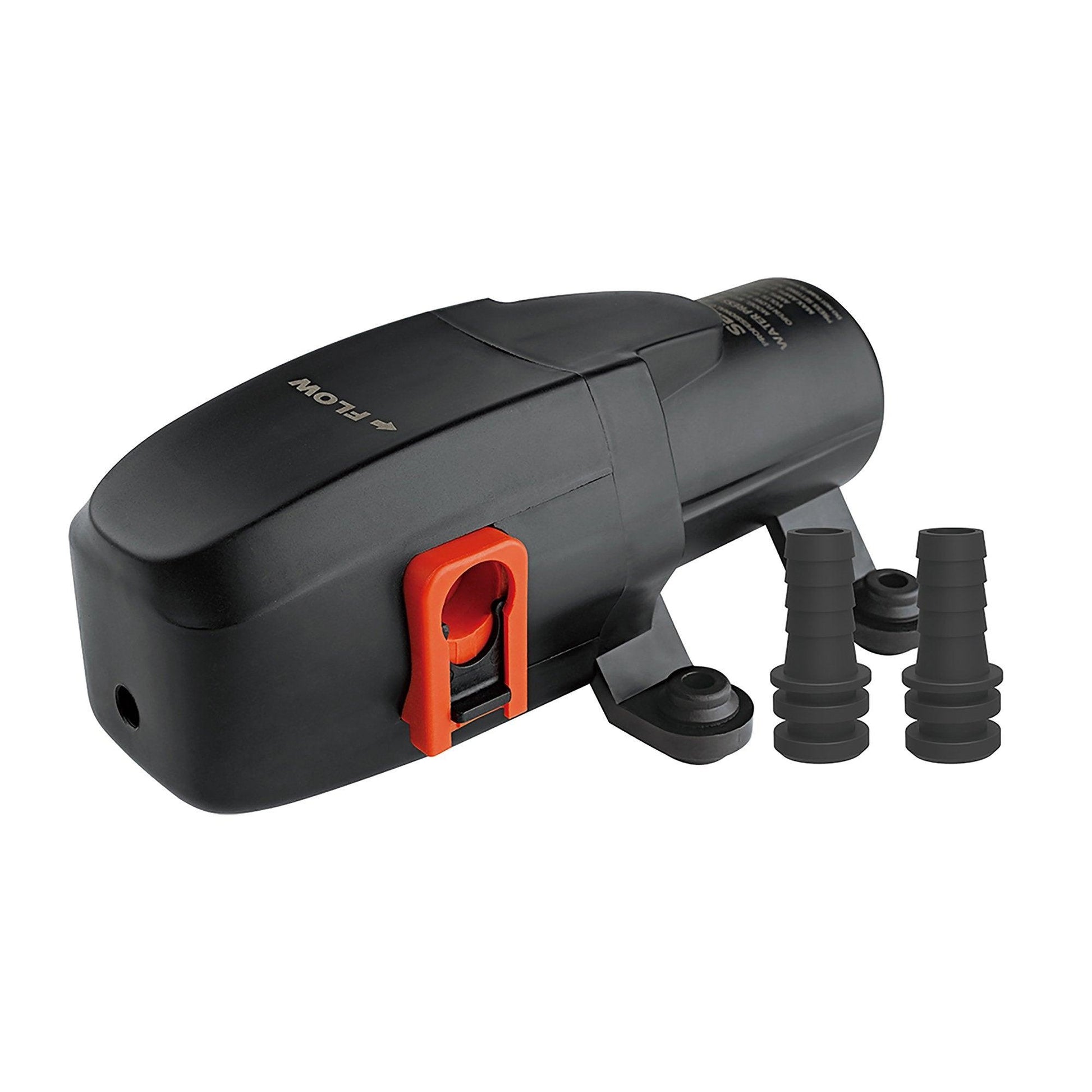

• Multiple connector options; quiet running with rubber feet for vibration and noise reduction; 4‑year warranty
