SEAFLO Pressure 23A Pressure Pump 24V 3.8 L/min (1.0 | 4Boats

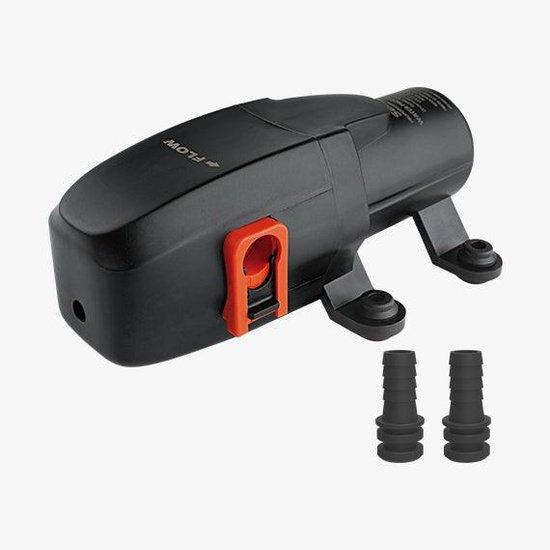

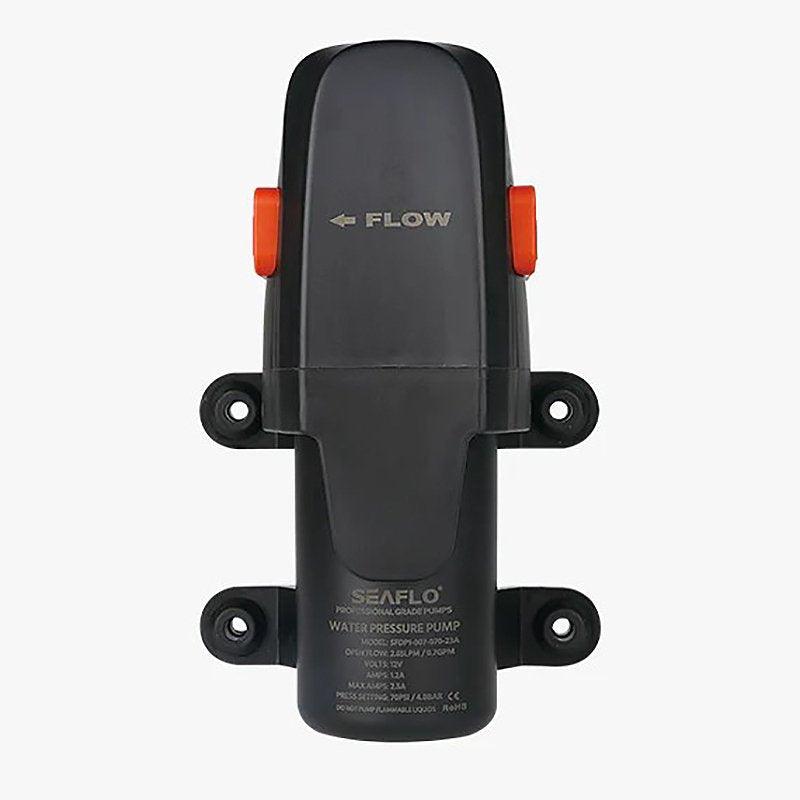

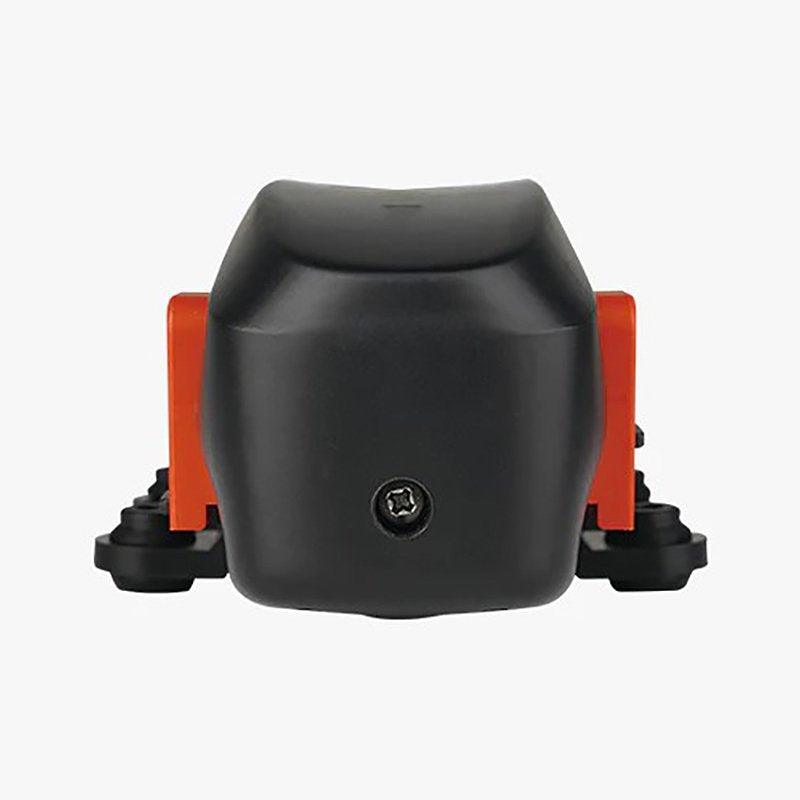

Compact SEAFLO Pressure 23A Series automatic demand diaphragm pump — 24V unit delivering 3.8 L/min (1.0 GPM) at 40 PSI (2.8 bar) for onboard water systems.

• Model: 23A Series automatic demand diaphragm pump
• Voltage: 24V DC
• Flow: 3.8 L/min (1.0 GPM)
• Shut‑off pressure: 2.8 bar (40 PSI)
• Priming: 1.5 m suction lift (5 ft)
• Max recommended temperature: 60°C (140°F)
• Materials: EPDM valves / Santoprene diaphragm
• Ports: 5/8 in quick‑attach

Suitable for marine, RV, caravan and light industrial water transfer, pressurisation and circulation; compact, customisable and easy to install.
