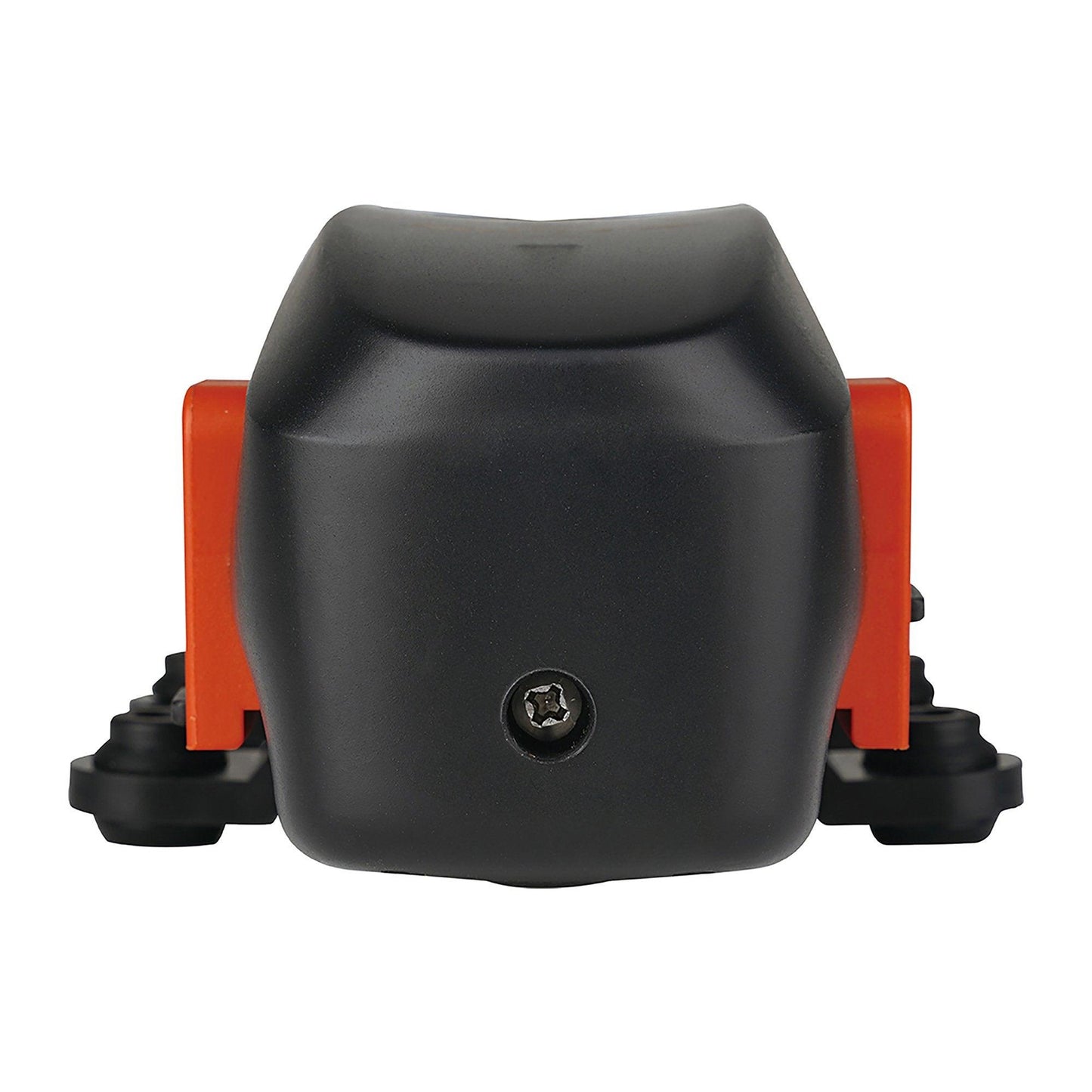

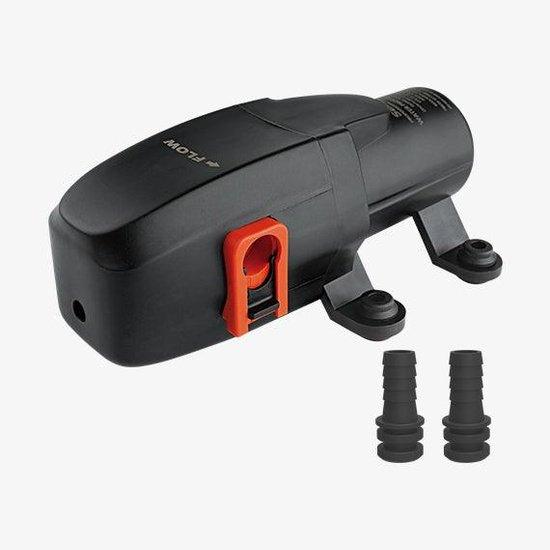

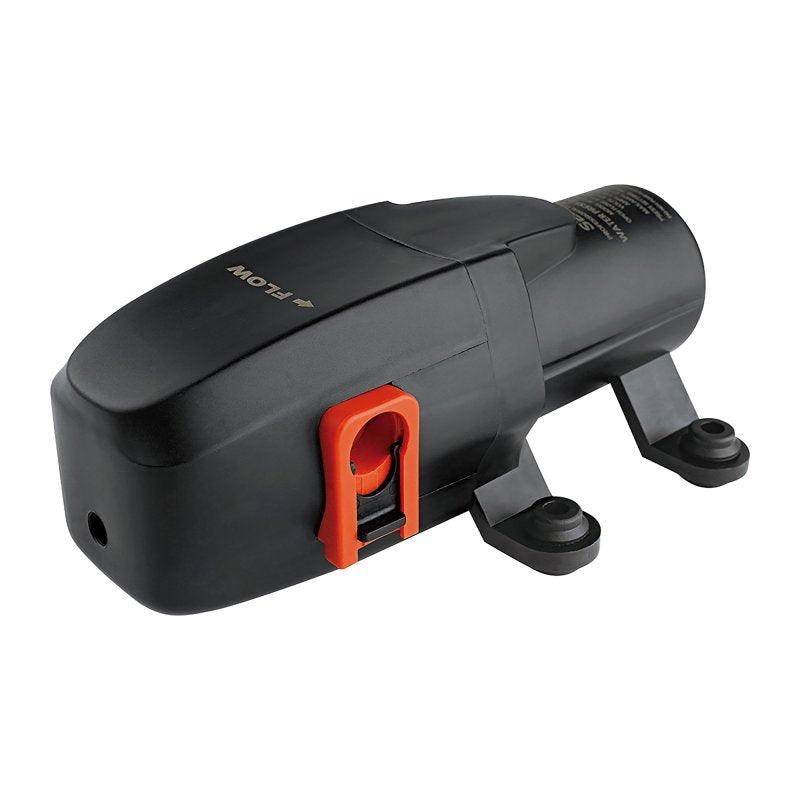

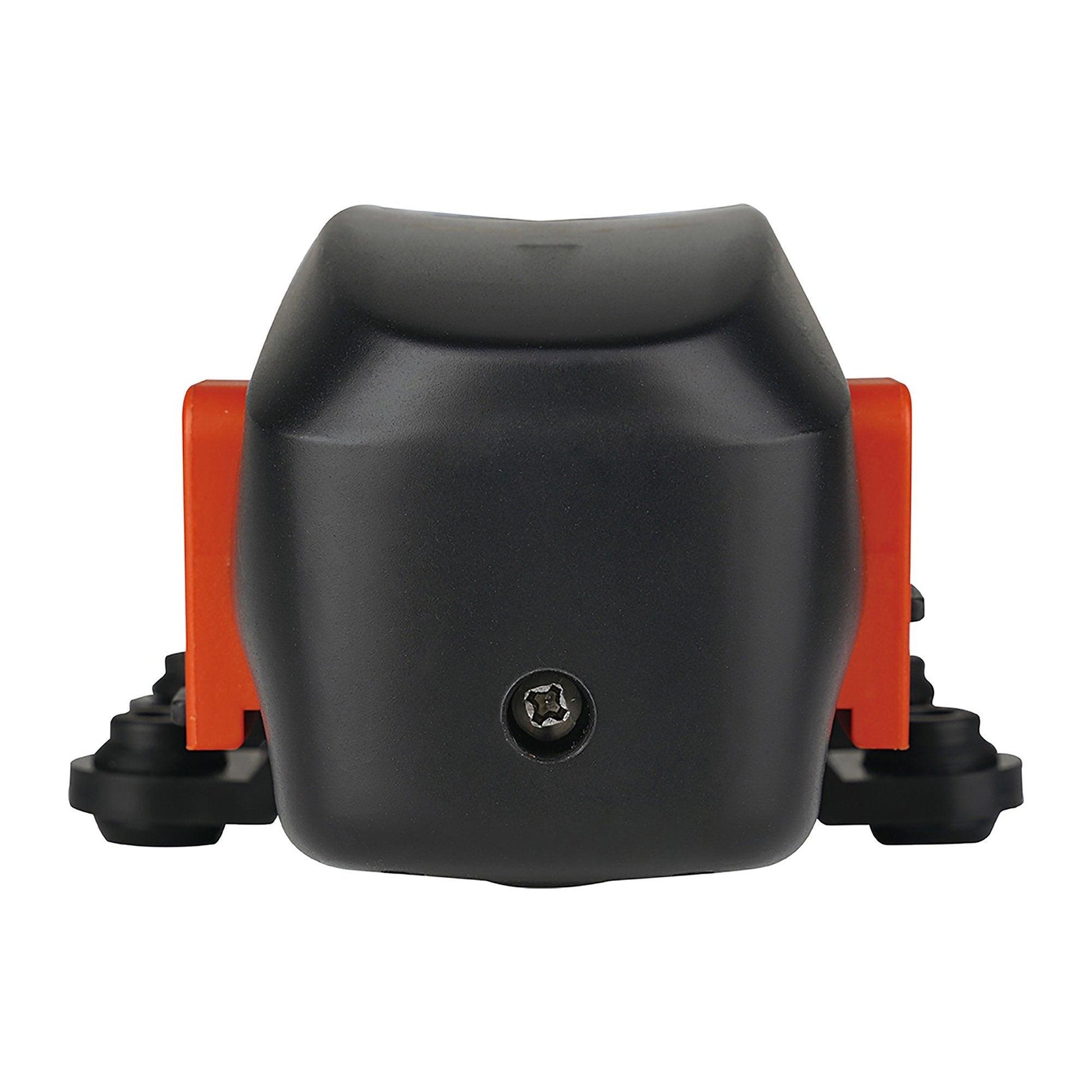

SEAFLO Pressure 23A Pump 24V — 4.3 LPM (1.2 GPM) 40

Compact 23A series automatic-demand diaphragm pump, 24 V, delivering 4.3 LPM (1.2 GPM) at 40 psi (2.8 bar) for marine, caravan and RV water systems.

• Voltage: 24 V
• Typical flow: 4.3 LPM (1.2 GPM)
• Open flow up to 5.6 LPM (1.5 GPM)
• Shut‑off pressure: 2.8–4.8 bar (40–70 psi)
• Priming: 1.5 m suction lift
• Maximum temperature: 60°C (140°F)
• Materials: EPDM valves, Santoprene diaphragm
• Ports: 5/8" quick‑connect
• Dry‑run capable; control options include demand, bypass, manual or no‑switch

Suitable for potable water, chemical and food‑grade applications; compact, customisable and designed for reliable onboard pressurisation.
