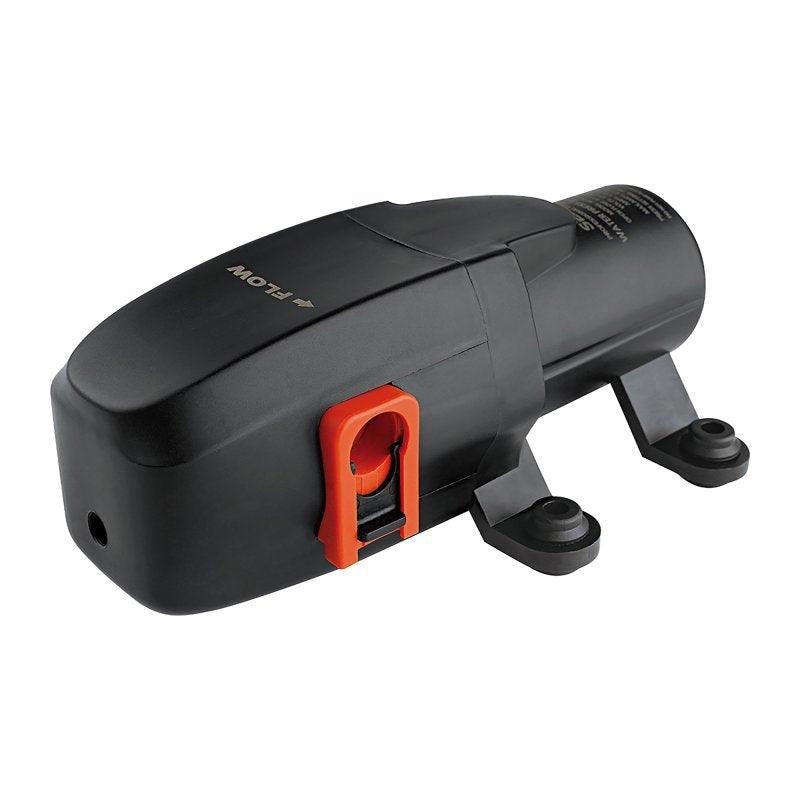

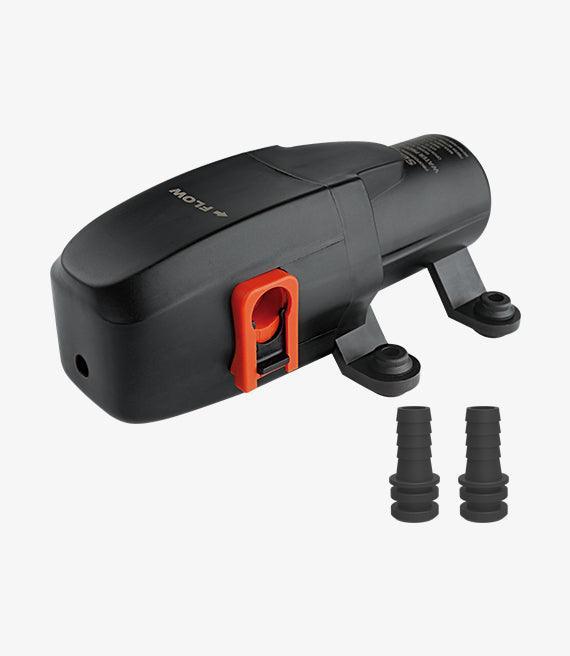

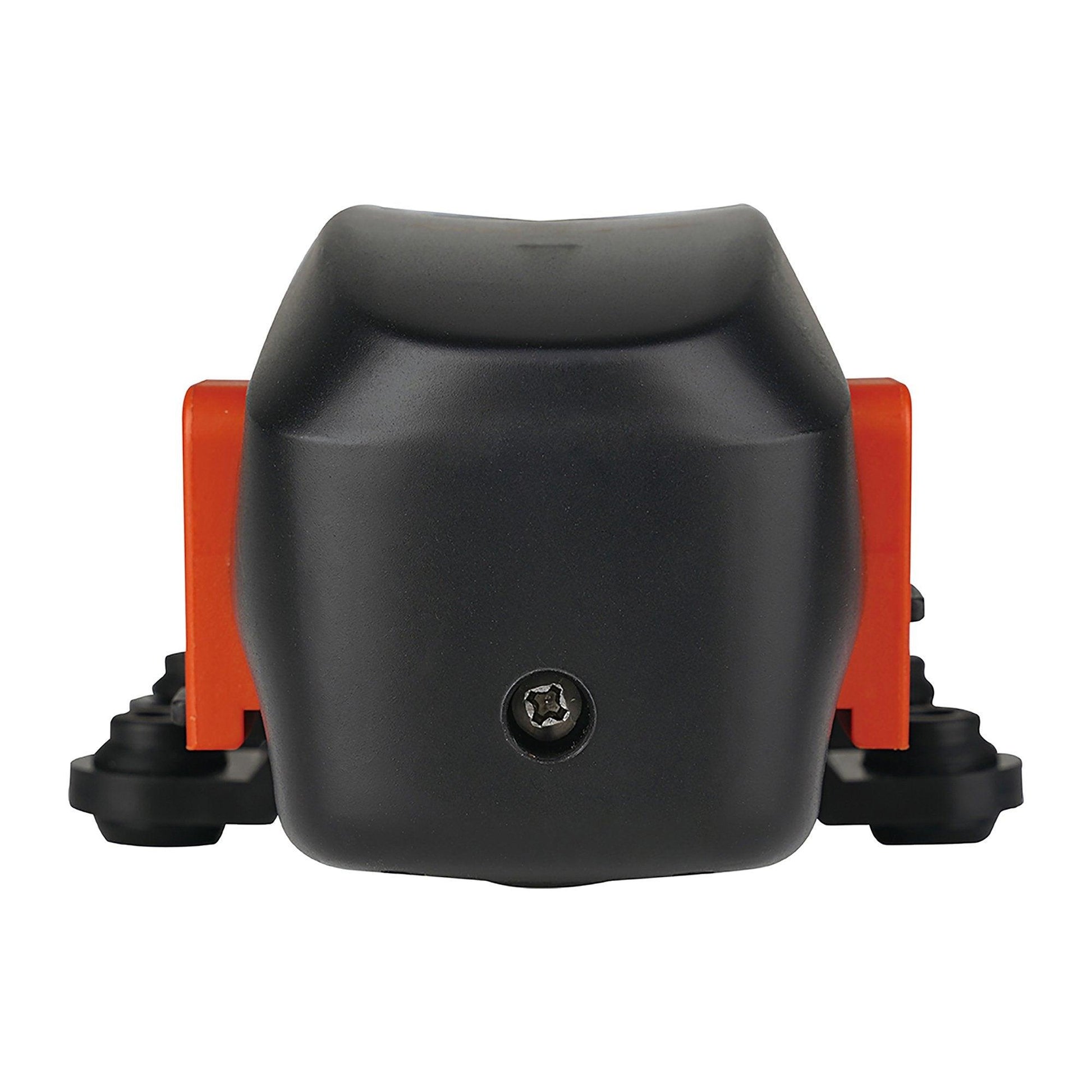

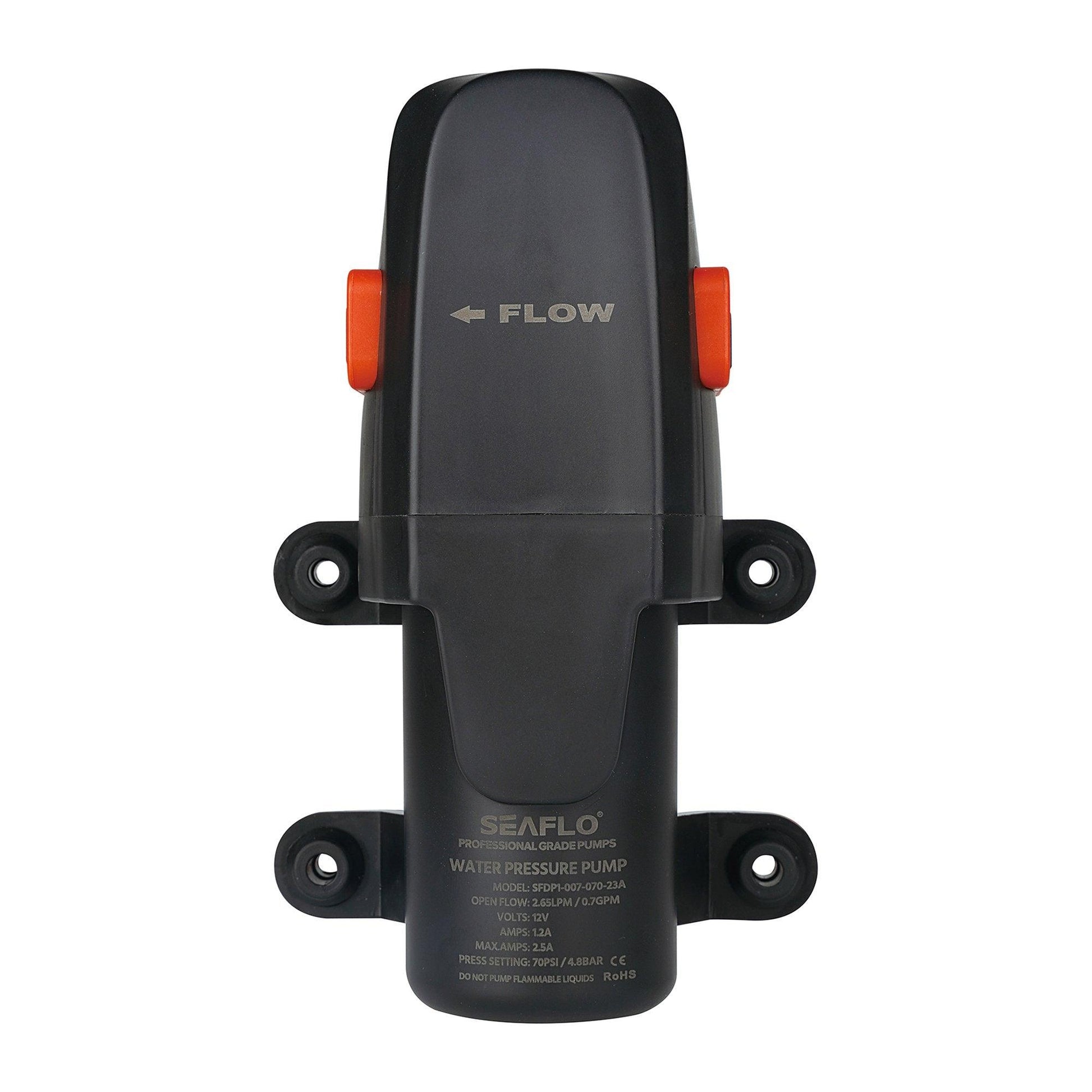

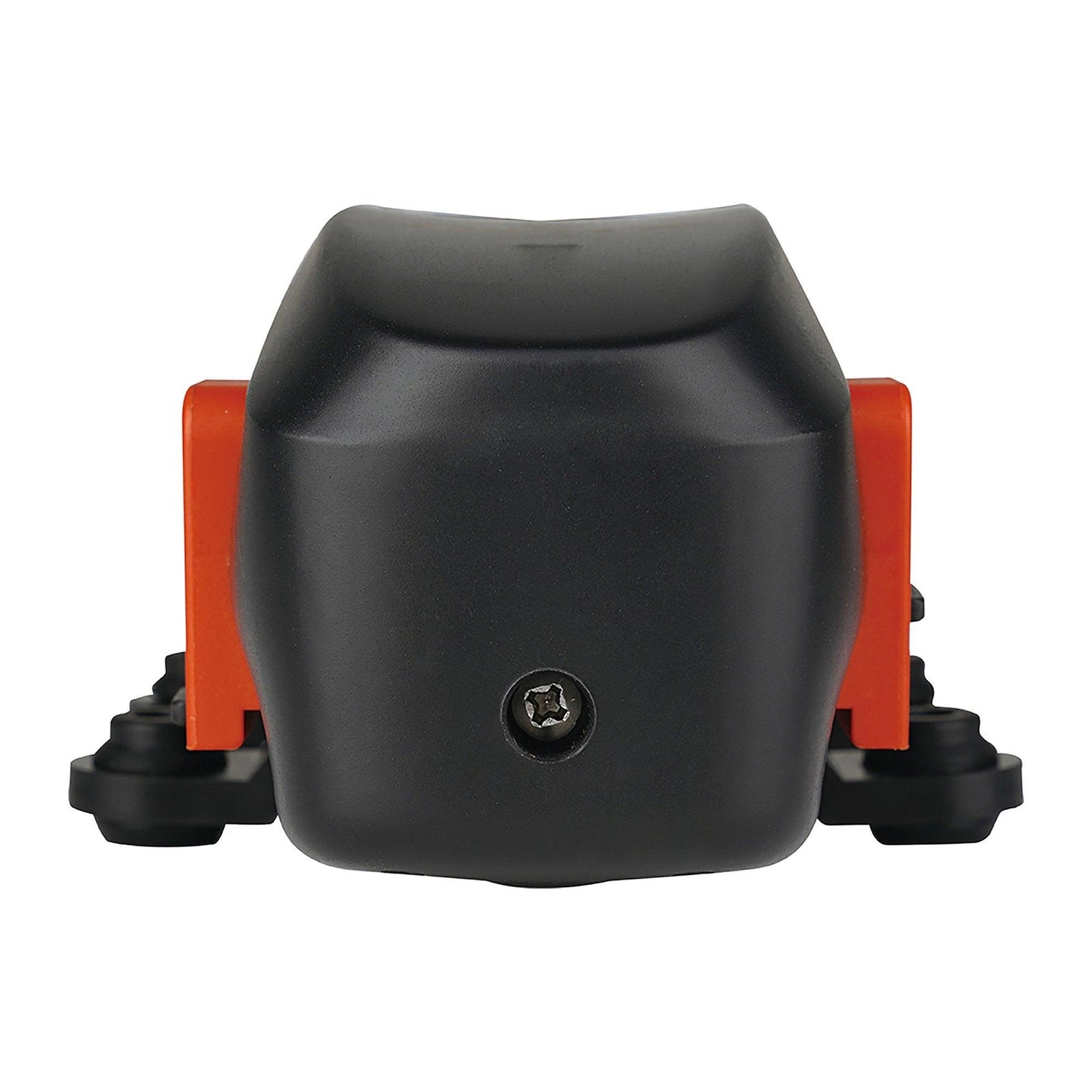

SEAFLO Pressure 23A Series 24V automatic demand diaphragm pump — compact, quiet and designed for marine and RV freshwater systems.

• The water pressure pump features a 2-chamber diaphragm design with an on-demand long-life pressure switch; it is self-priming.
• Flow: 5.6 L/min (1.5 gpm) open flow.
• Voltage & draw: 24 V DC, max draw 2.5 A.
• Available pressure variants: Cut-in 25 ±5 psi for 35 psi shut-off; Cut-in 30 ±5 psi for 40 psi shut-off; Cut-in 56 ±5 psi for 70 psi shut-off. Typical shut-off: 40 psi (≈2.8 bar).
• Valves: EPDM; Diaphragm: Santoprene; Inlet/Outlet Ports: 5 mm hose barb.
• Max self-priming: 1.5 m (5 ft); capable of dry running.
• IP54 rated (splash resistant), ignition protected, industry-standard mount pattern; CE and RoHS certified; 4-year warranty.
• Suitable for boats, caravans and mobile freshwater systems; sealed wiring and standard connector options for reliable installation.
