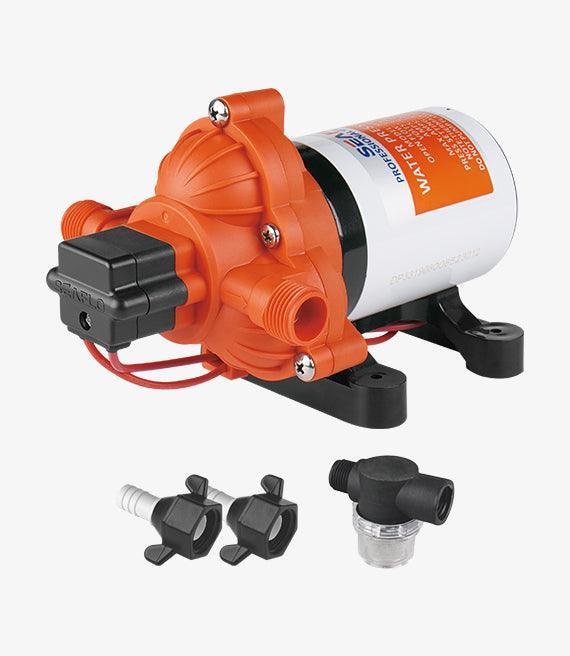

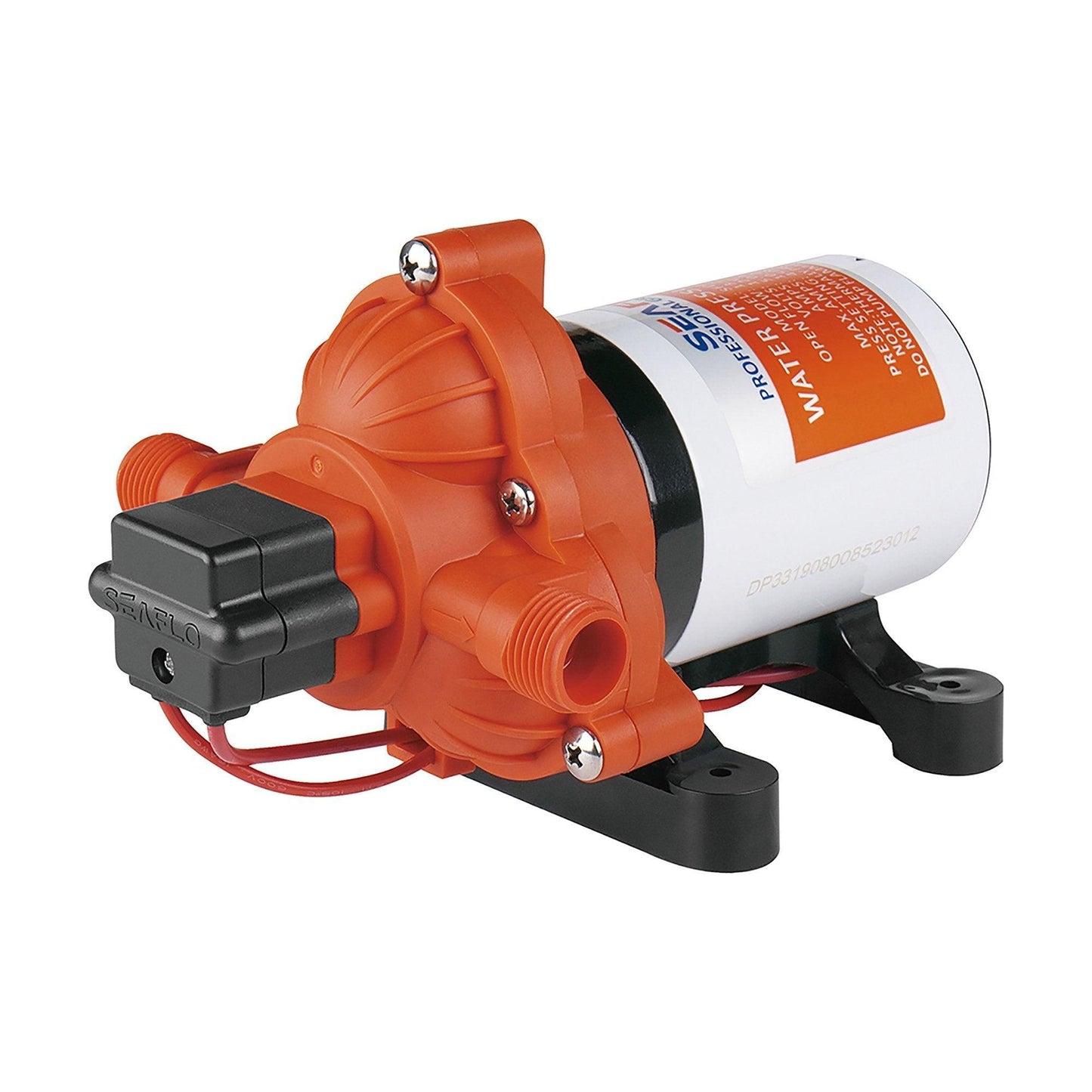

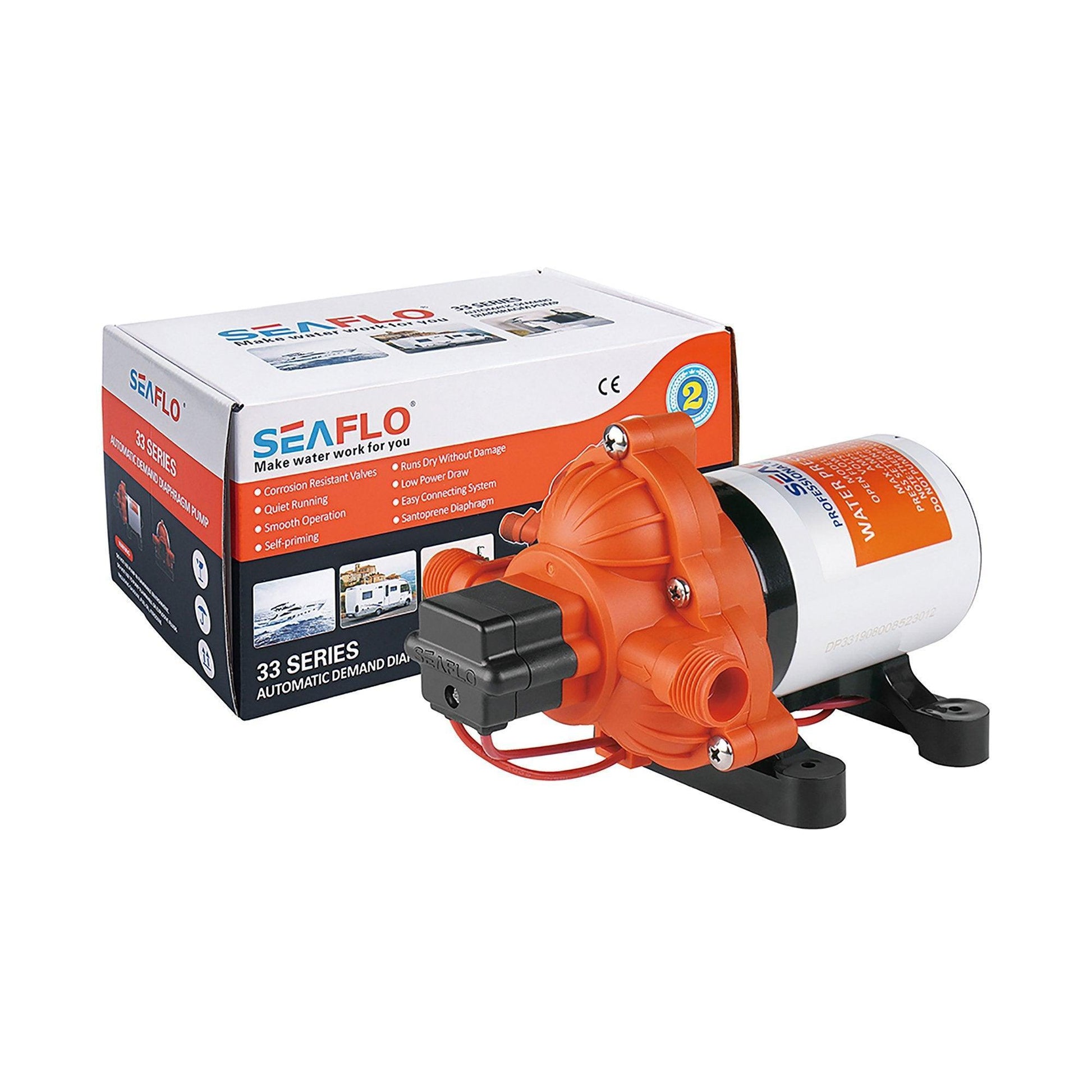

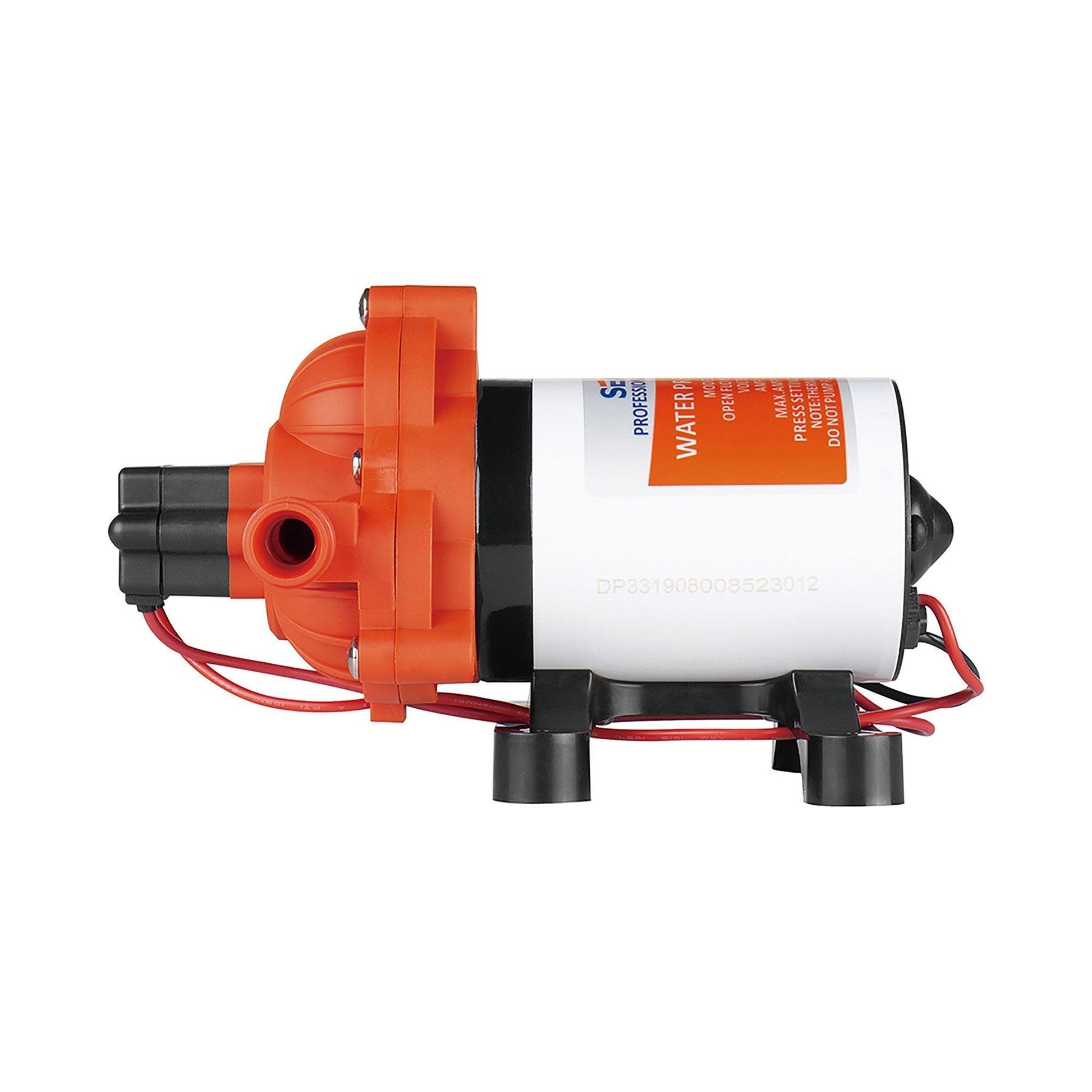

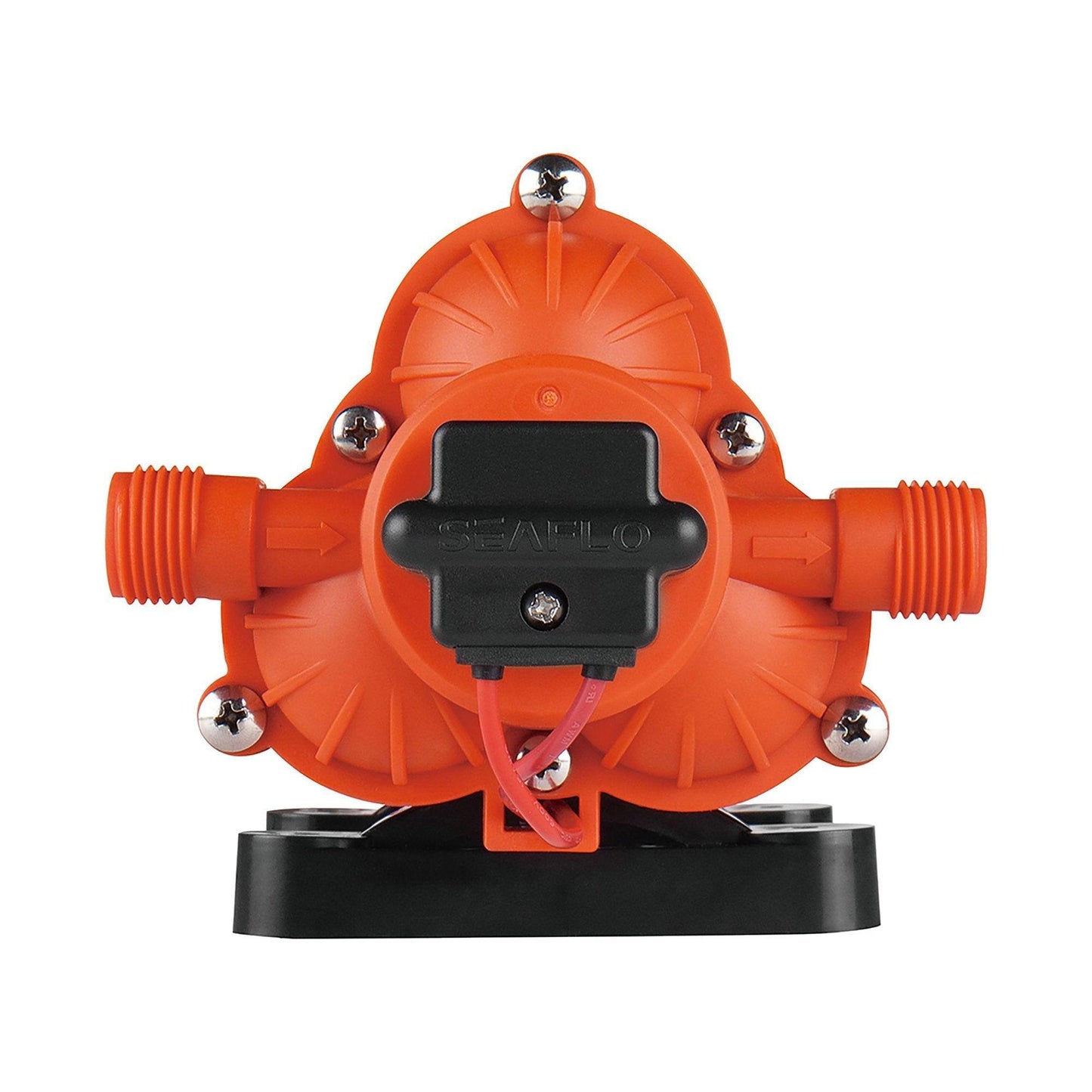

Compact 12 V diaphragm pump supplying up to 10.6 L/min (2.8 gpm) with a 3.1 bar (45 psi) shut‑off for boat and RV fresh water systems.
- Voltage: 12 V
- Flow: 10.6–11.3 L/min (2.8–3.0 gpm)
- Shut‑off pressure: 3.1 bar (45 psi)
- Self‑priming to 1.8 m (6 ft) suction lift
- Max temperature: 60°C (140°F)
- Materials: EPDM valves, Santoprene diaphragm

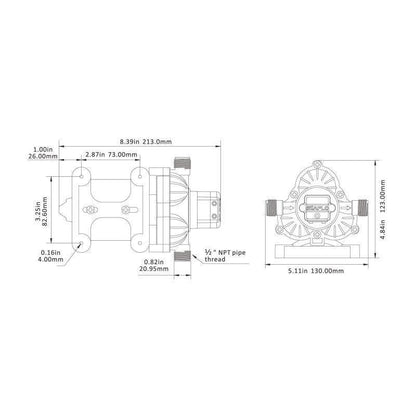

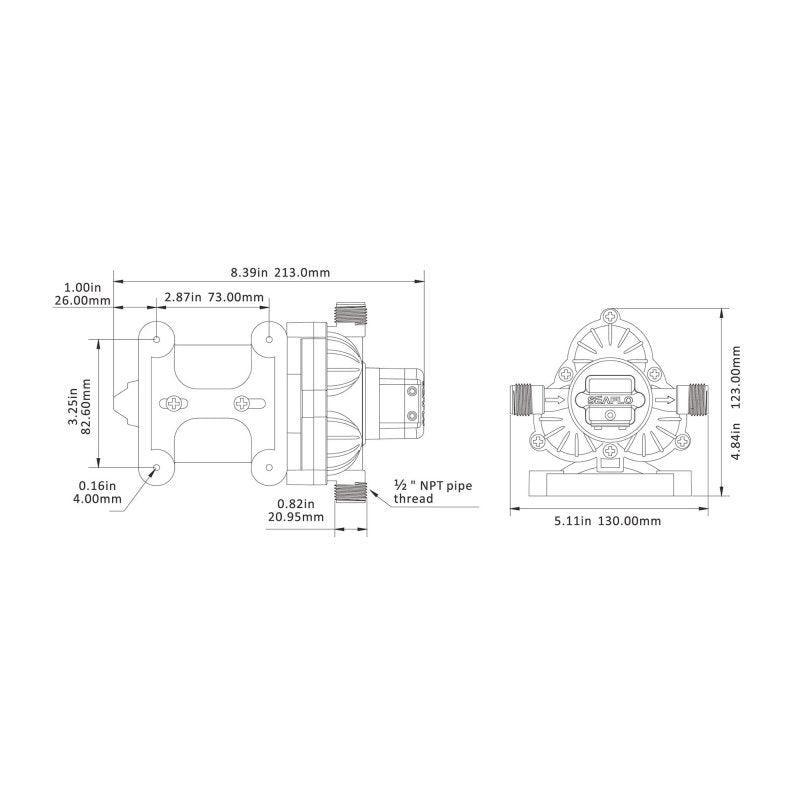

- Ports: 1/2"-14 MNPT
- 16 AWG leads, 11.4 cm (4.5 in) long
Built‑in pressure switch for on‑demand operation; serves 2–3 fixtures, is run‑dry safe and continuous‑duty. Easy to install, service and winterise.
