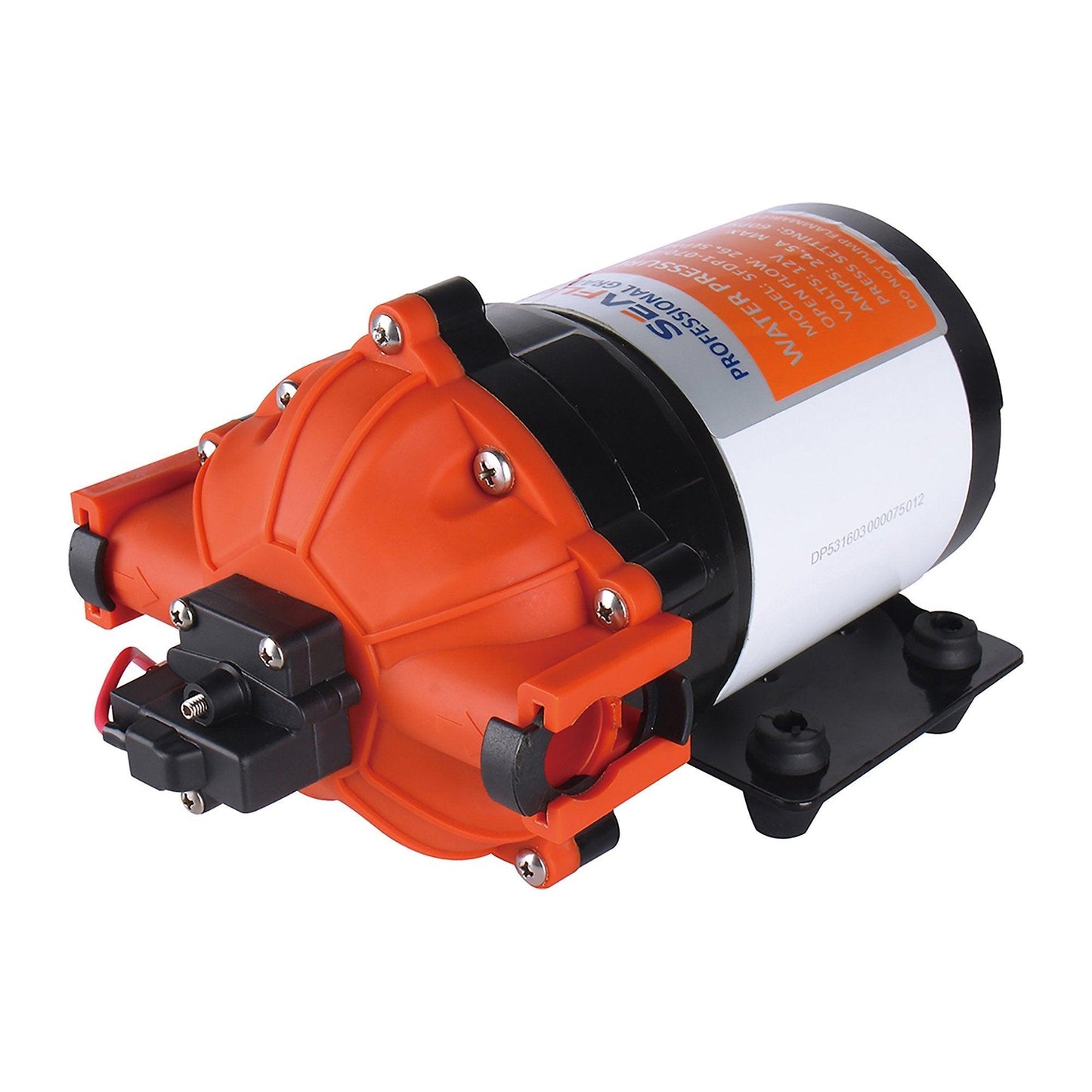

SEAFLO Pressure 53 Series 24V 26.5 L/min (7.0 GPM) 6

High-capacity SEAFLO Pressure 53-Series 24V diaphragm pump, self-priming and designed to supply multiple fixtures with quiet, heavy-duty operation.

• Flow: 26.5 L/min (7.0 GPM)
• Voltage: 24 V (also available 12 V)
• Shut-off pressure: 60 PSI (4.1 bar); typical cut-in ~48 PSI ±5 PSI (±0.3 bar)
• Priming: self-priming to 1.8 m (6 ft) suction lift
• Temperature limit: 60°C (140°F)
• Materials & ports: EPDM valves, Santoprene diaphragm; quick-attach inlet/outlet
• Supply & design: feeds up to 6 fixtures; five-chamber heavy-duty diaphragm with on-demand adjustable pressure switch
• Electrical & docs: 16 AWG, 22.8 cm (9") leads; Manual Download
