SEAFLO Pressure Luxury Pump Accumulator 24V | 4Boats

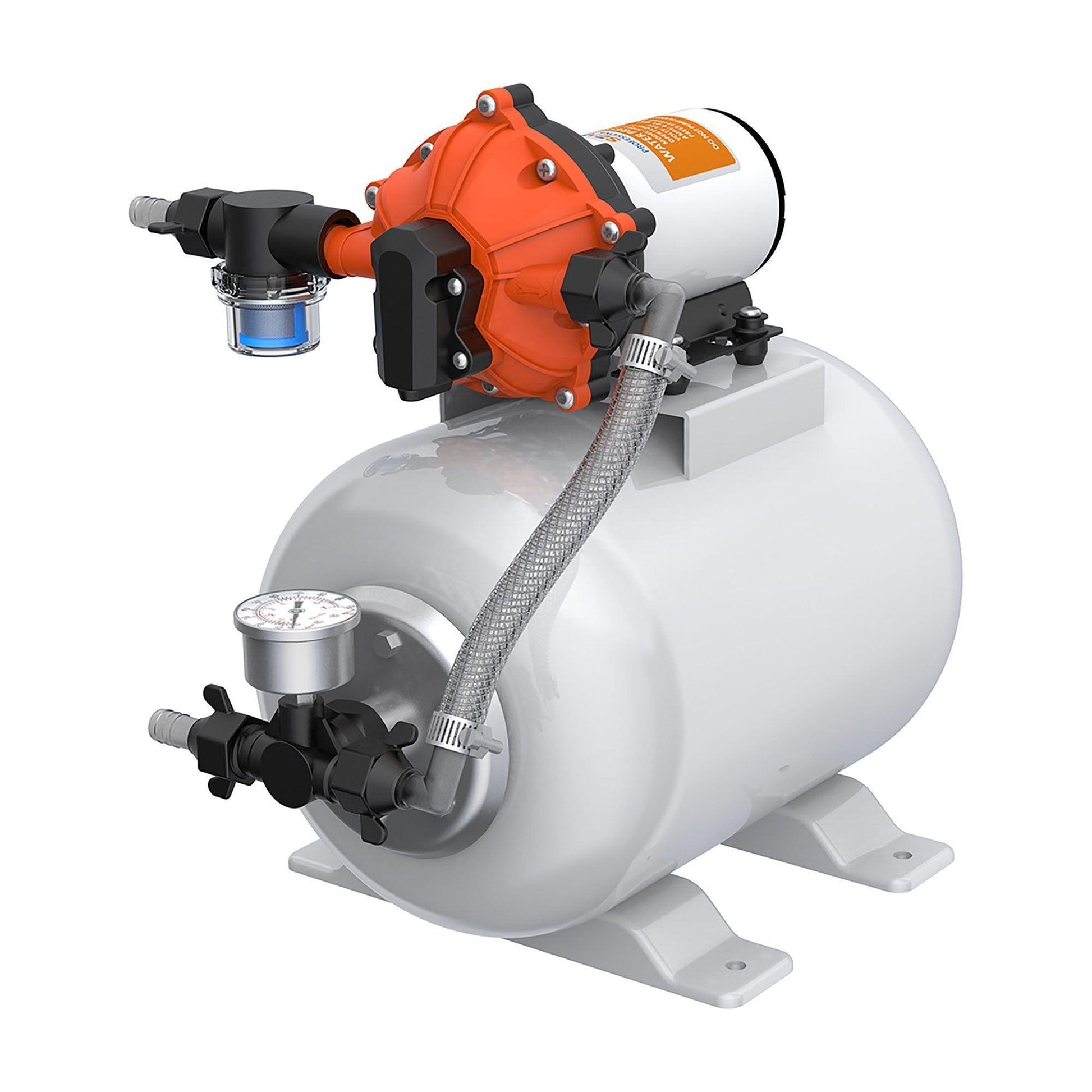

SEAFLO Pressure luxury accumulator boost system with an 8 L pre-pressurised tank and integrated five-chamber diaphragm pump for smooth, quiet water pressure across multiple outlets.

• Boost system: 8 L pre-pressurised accumulator, 24 V (also compatible with 12 V)
• System type: Accumulator Pressure Boost System / Water Booster Pump
• Flow: 11.3–18.9 L/min (3.0–5.0 gpm)
• Pressure off/on: 4.2 bar / 2.8 bar (60 psi / 40 psi)
• Tank volume: 8 L (1.7 US gal)
• Inlet/outlet size: 13 mm (1/2 in) barb

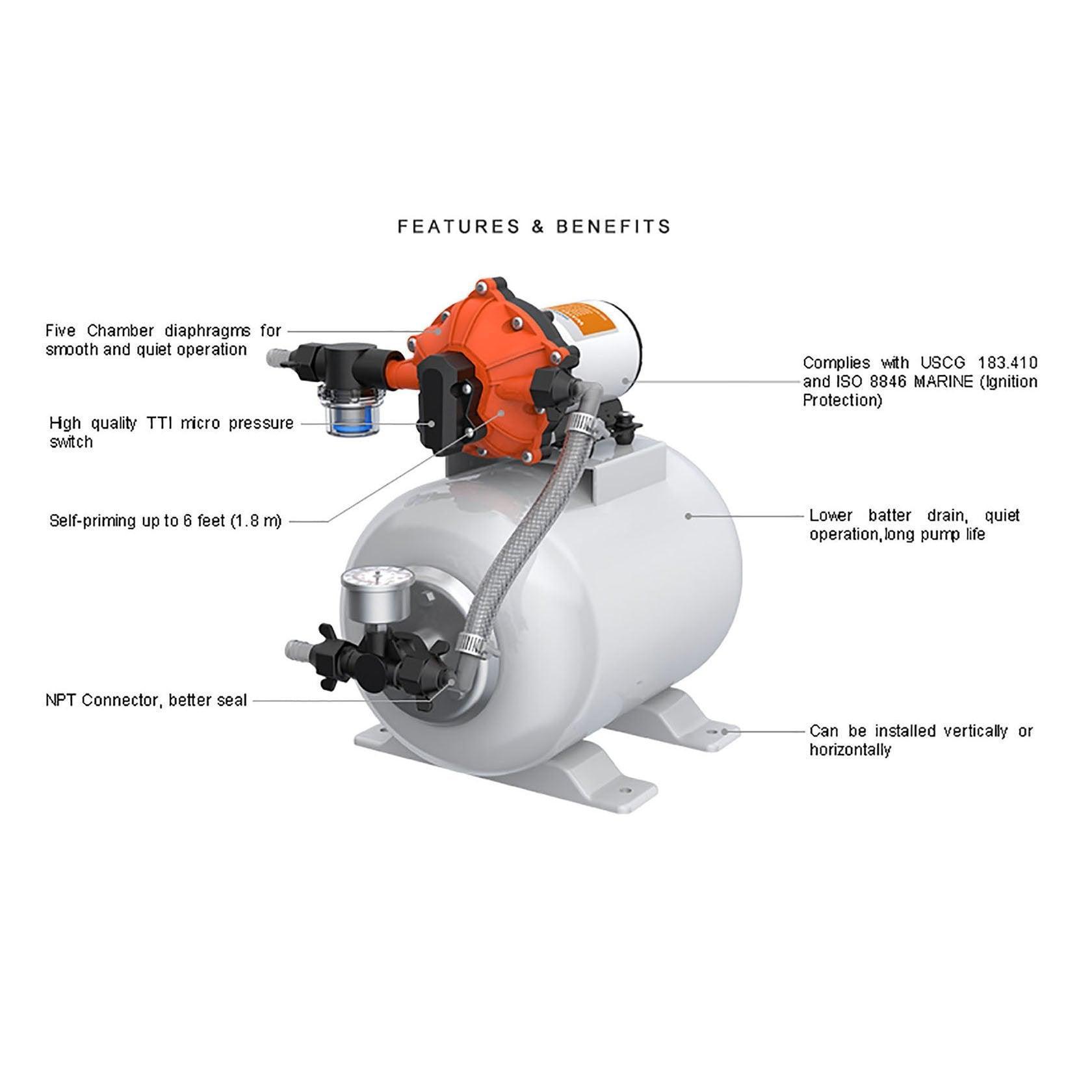

• Materials: valves EPDM; diaphragm Santoprene; five-chamber diaphragm pump
• Self-priming up to 1.8 m; serves 3+ 13 mm outlets; can be mounted vertically or horizontally
• Pre-wired on rubber board with quick-connects; potable, maintenance-free tank; ISO 8846 / USCG 183.410 ignition protection

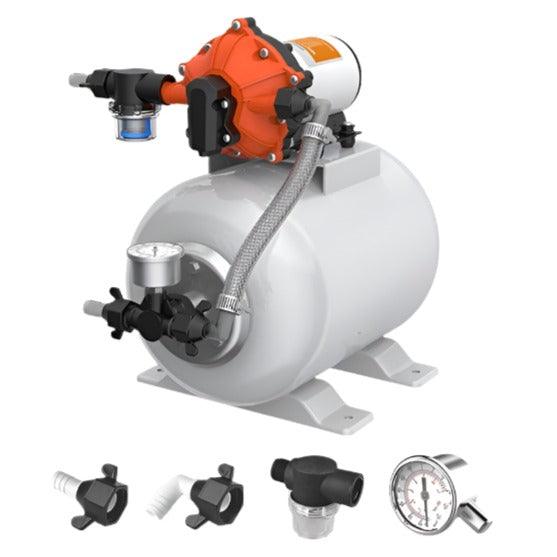

Fully assembled kit for straightforward installation; click below to download the manual: Manual Download.
