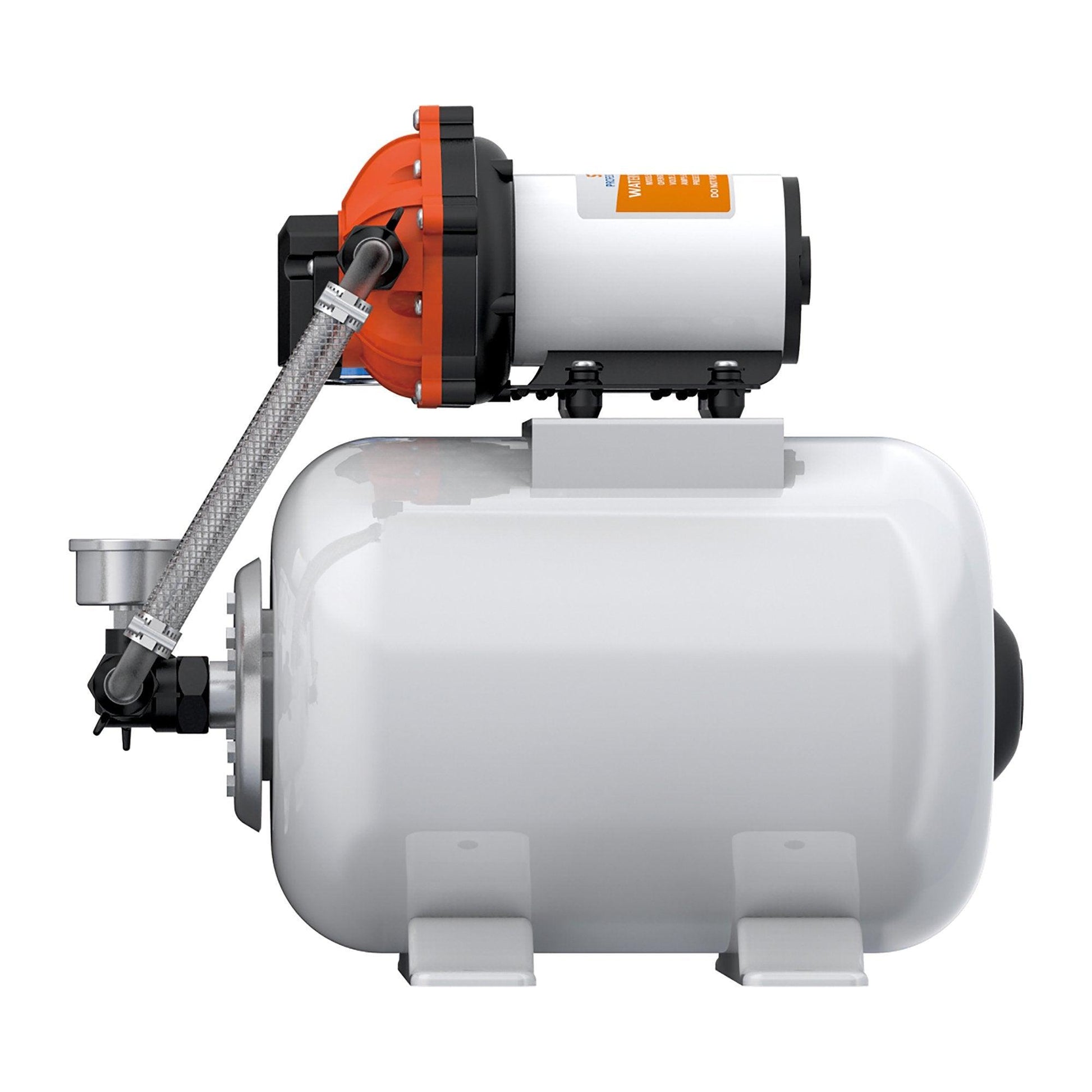

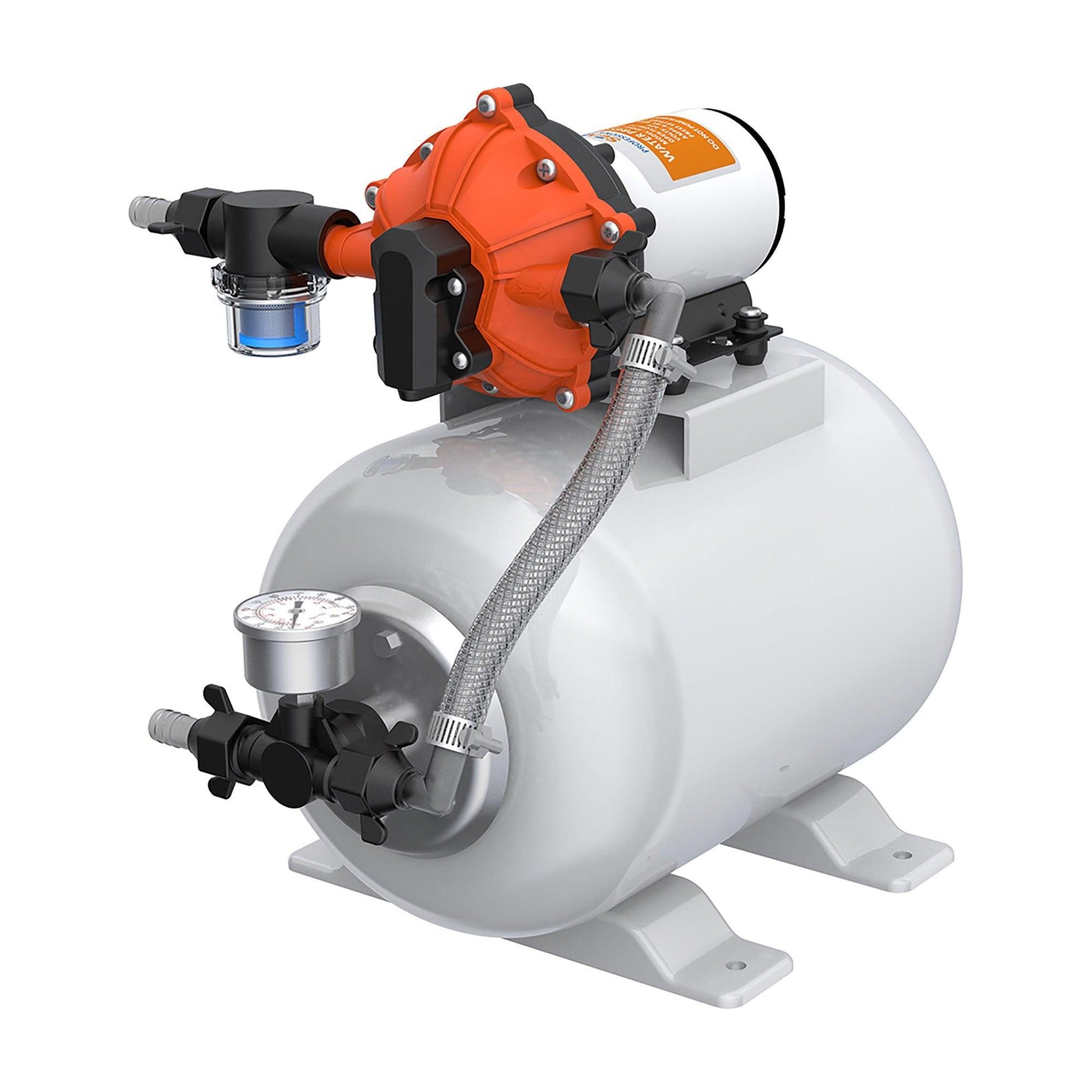

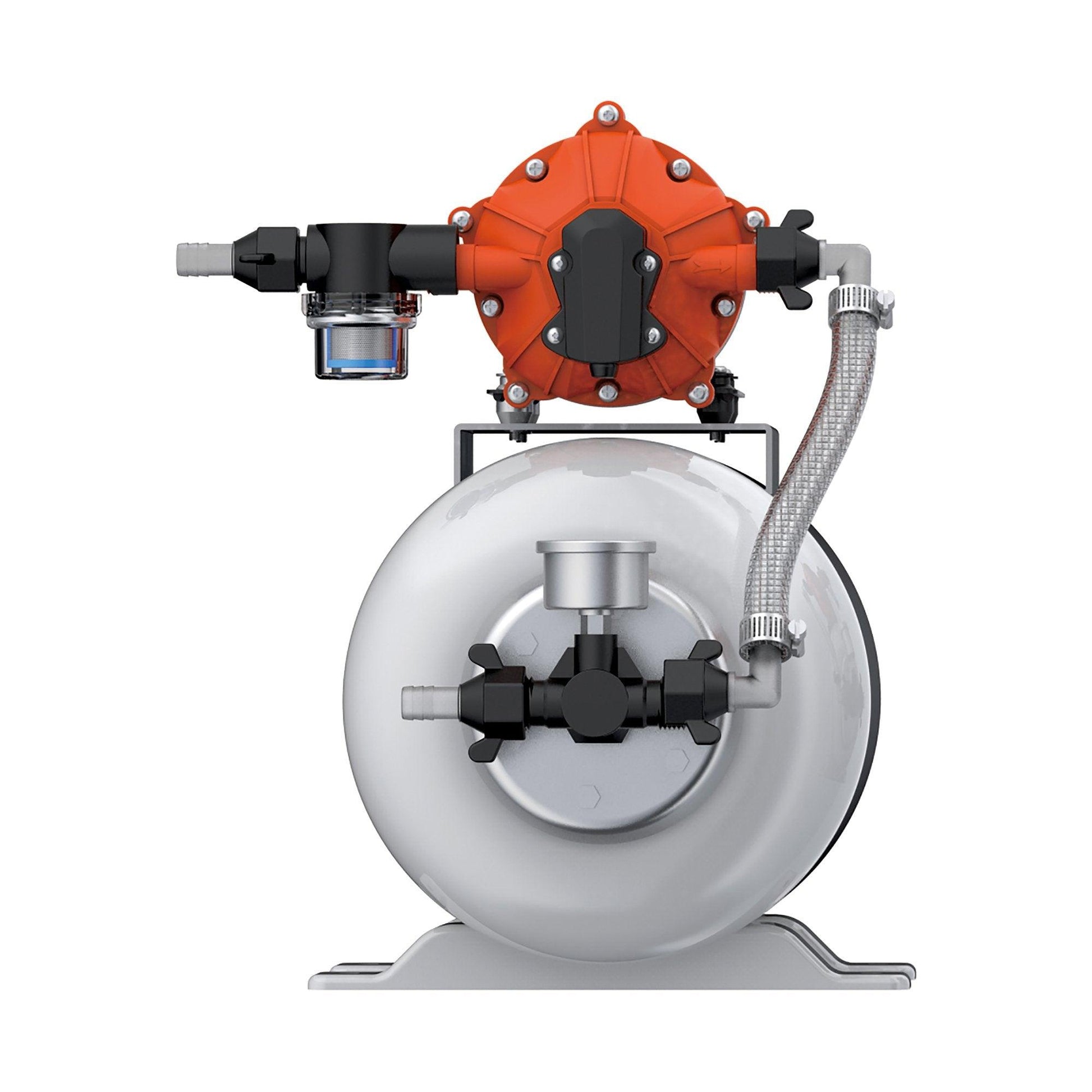

SEAFLO Pressure Pump + Accumulator Kit 24V | 4Boats

Seaflo Pressure Pump + Accumulator Kit — pre-pressurised 8 L tank and five‑chamber diaphragm pump for smooth, quiet water delivery in marine and caravan systems.

• Voltage: 24V
• Flow: 11.3 L/min (3.0 GPM)
• Tank volume: 8 L (1.7 US gal)
• Pressure off/on: 4.2 bar (60 PSI) / 2.8 bar (40 PSI)
• Inlet/outlet: 1/2" (13 mm) barb
• Materials: EPDM valves, Santoprene diaphragm
• Self-priming to 1.8 m (6 ft)

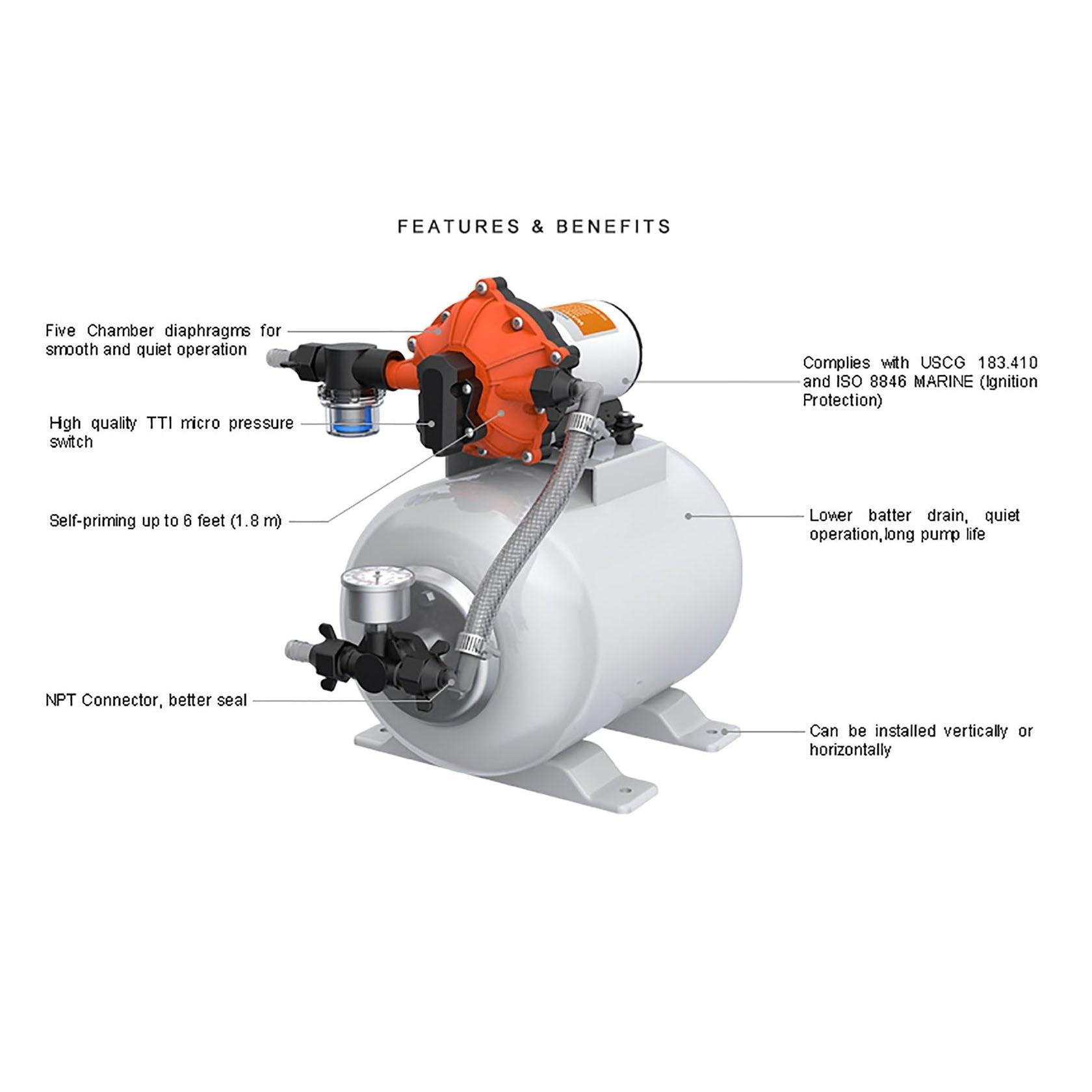

• Five‑chamber diaphragm
• Can be mounted vertically or horizontally
• Maintenance‑free potable tank
• USCG 183.410 & ISO 8846 MARINE ignition protection; 16 AWG, 115 mm (4.5 in) leads
• click below: Manual Download

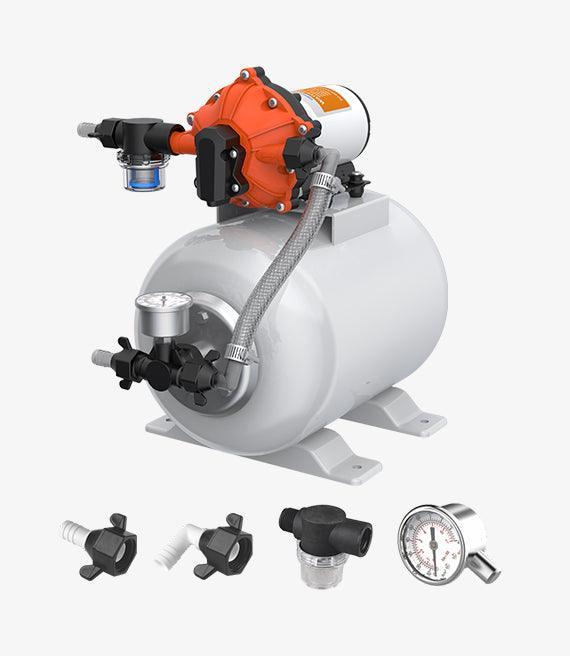

Fully assembled on a rubber-mounted board with strainer, quick‑connect electricals and pre‑pressurised accumulator — serves three or more 1/2" (13 mm) outlets for quieter flow and longer pump life.
