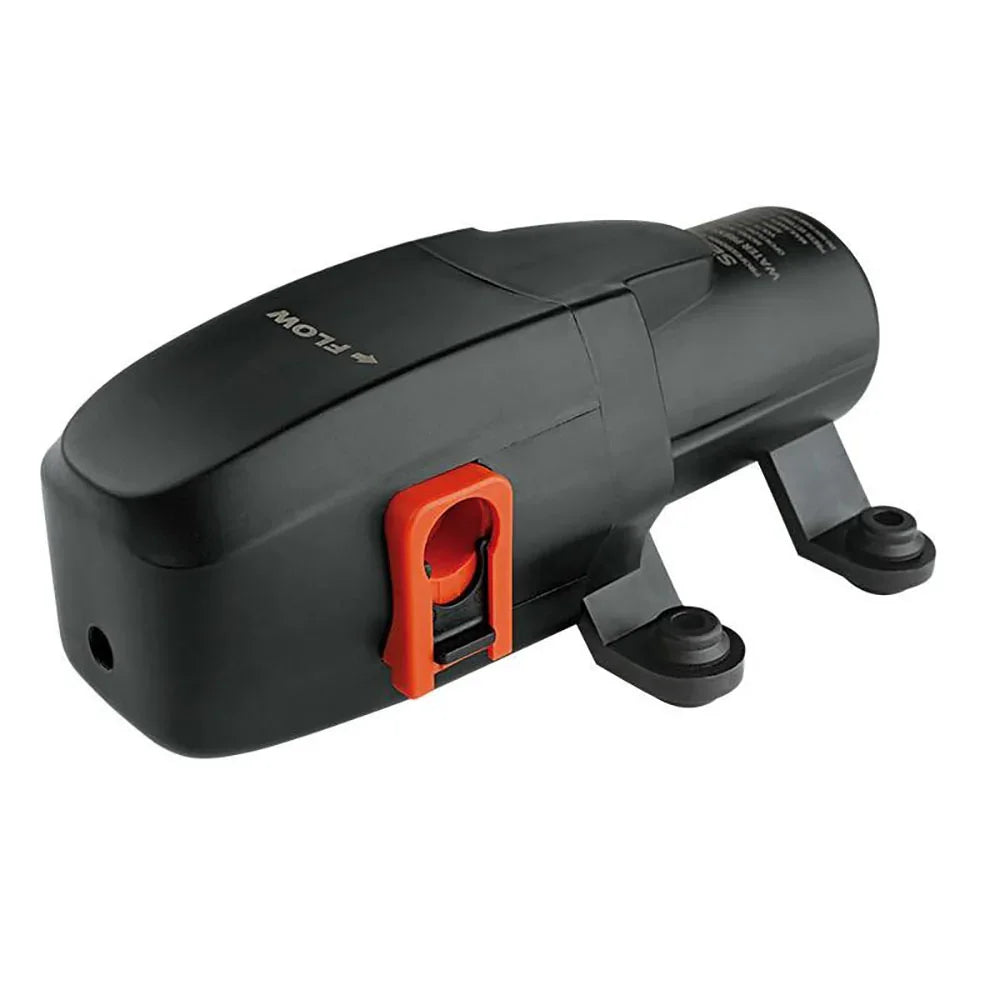

Seaflo Water 23A Pressure Pump 12V — 3.8 L/min (1 | 4Boats

Compact 12V pressure pump for marine use — the 23A series delivers 3.8 L/min (1.0 GPM) with on‑demand pressure control, self‑priming capability and dry‑run tolerance.

• 2‑chamber diaphragm with on‑demand long‑life pressure switch; self‑priming and dry‑run capable
• Flow: 3.8 L/min (1.0 GPM) at 12V
• Bypass technology reduces cycling
• IP54 dust and water‑resistant with extra cover; 60°C (140°F) temperature limit
• Shut‑off settings: 25 PSI ±5 PSI (1.7 bar ±0.3 bar); 30 PSI ±5 PSI (2.1 bar ±0.3 bar); 56 PSI ±5 PSI (3.9 bar ±0.3 bar)
• Valves: EPDM; Diaphragm: Santoprene; Inlet/Outlet Ports: 5/8" quick connector
• Multiple connector options; industry‑standard mount pattern; sealed, tinned marine‑grade wiring harness
• Compact, ignition‑protected, quiet running with rubber feet; CE, RoHS certified; 4‑year warranty

Compact 12V pressure pump for marine use — the 23A series delivers 3.8 L/min (1.0 GPM) with on‑demand pressure control, self‑priming capability and dry‑run tolerance.

• 2‑chamber diaphragm with on‑demand long‑life pressure switch; self‑priming and dry‑run capable
• Flow: 3.8 L/min (1.0 GPM) at 12V
• Bypass technology reduces cycling
• IP54 dust and water‑resistant with extra cover; 60°C (140°F) temperature limit
• Shut‑off settings: 25 PSI ±5 PSI (1.7 bar ±0.3 bar); 30 PSI ±5 PSI (2.1 bar ±0.3 bar); 56 PSI ±5 PSI (3.9 bar ±0.3 bar)
• Valves: EPDM; Diaphragm: Santoprene; Inlet/Outlet Ports: 5/8" quick connector
• Multiple connector options; industry‑standard mount pattern; sealed, tinned marine‑grade wiring harness
• Compact, ignition‑protected, quiet running with rubber feet; CE, RoHS certified; 4‑year warranty
