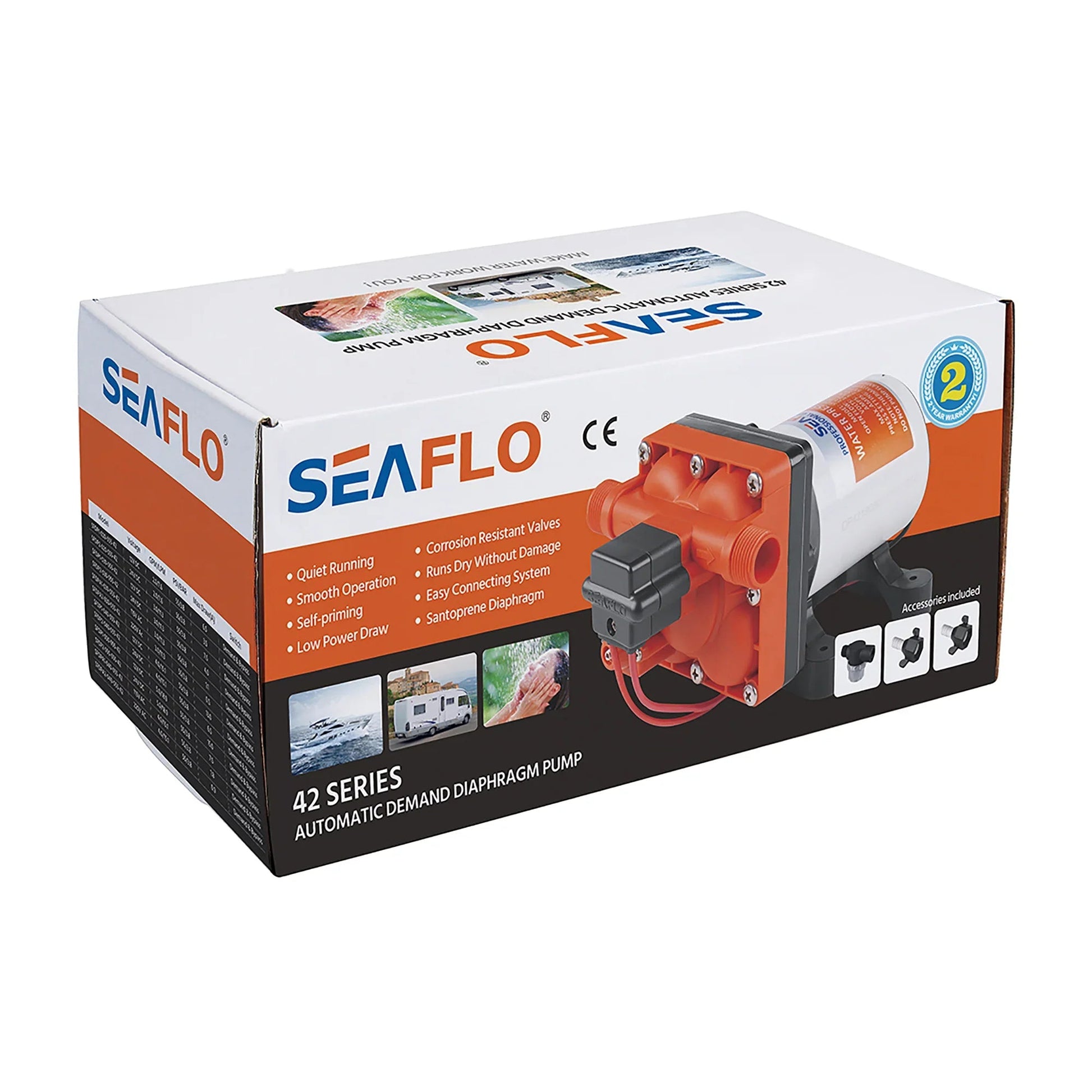

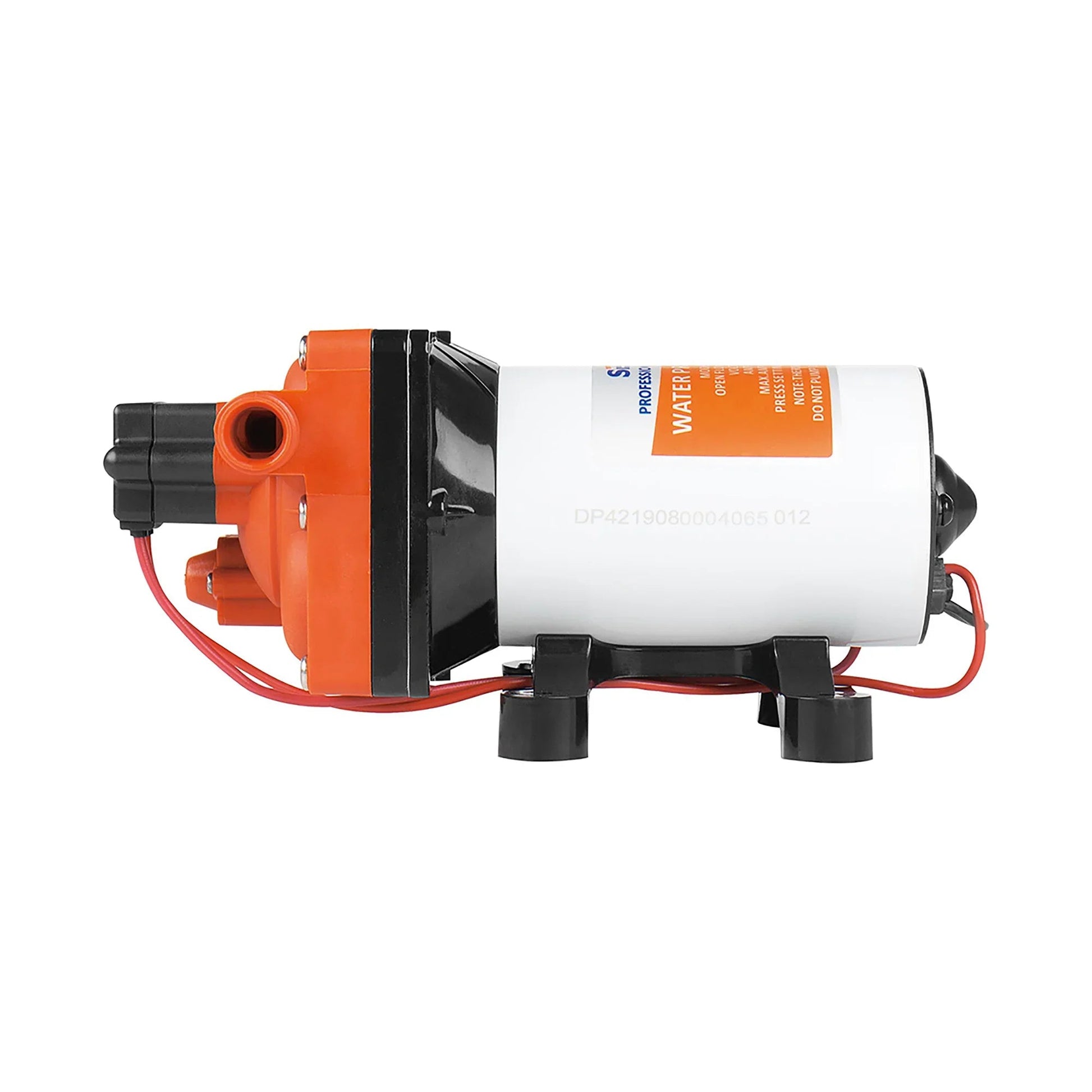

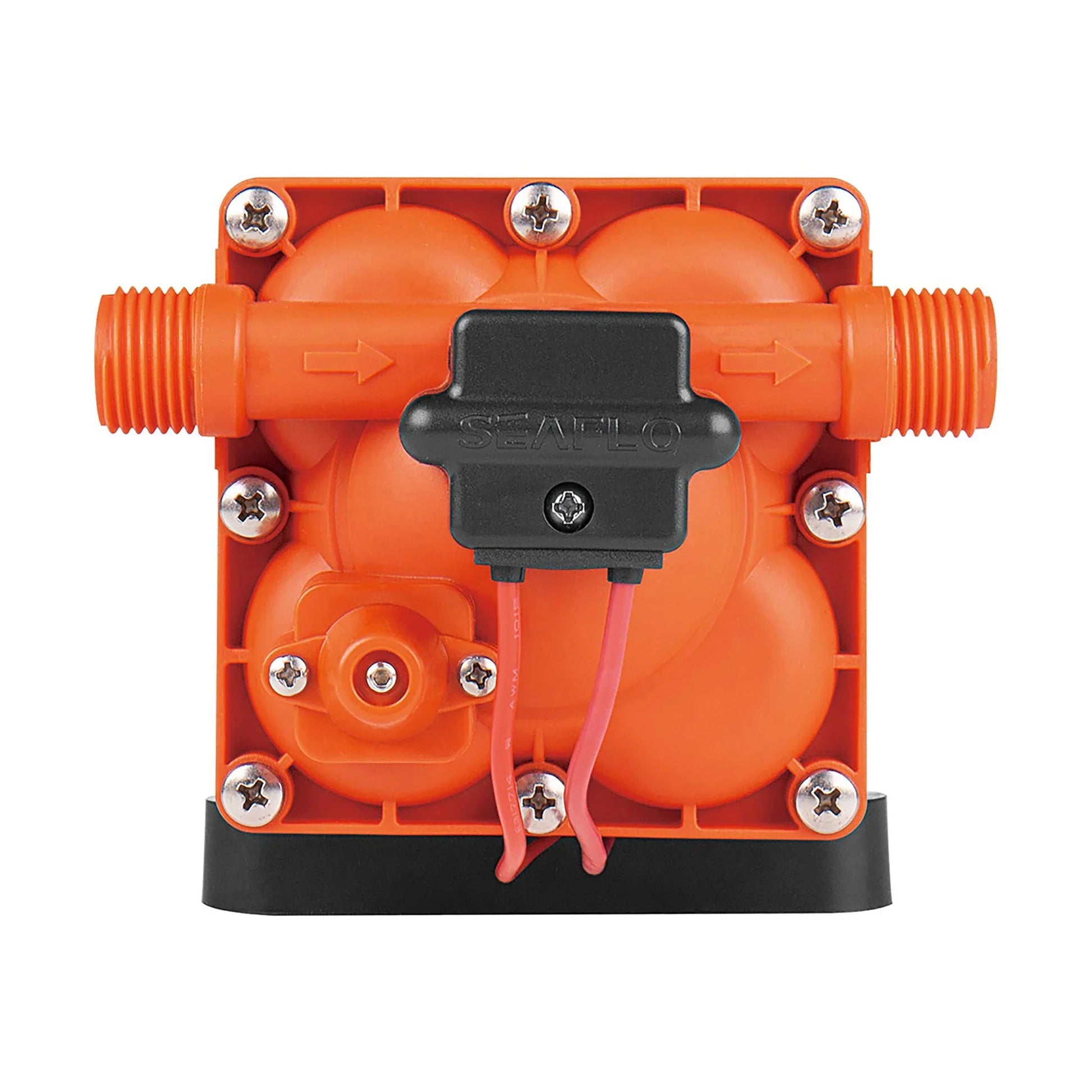

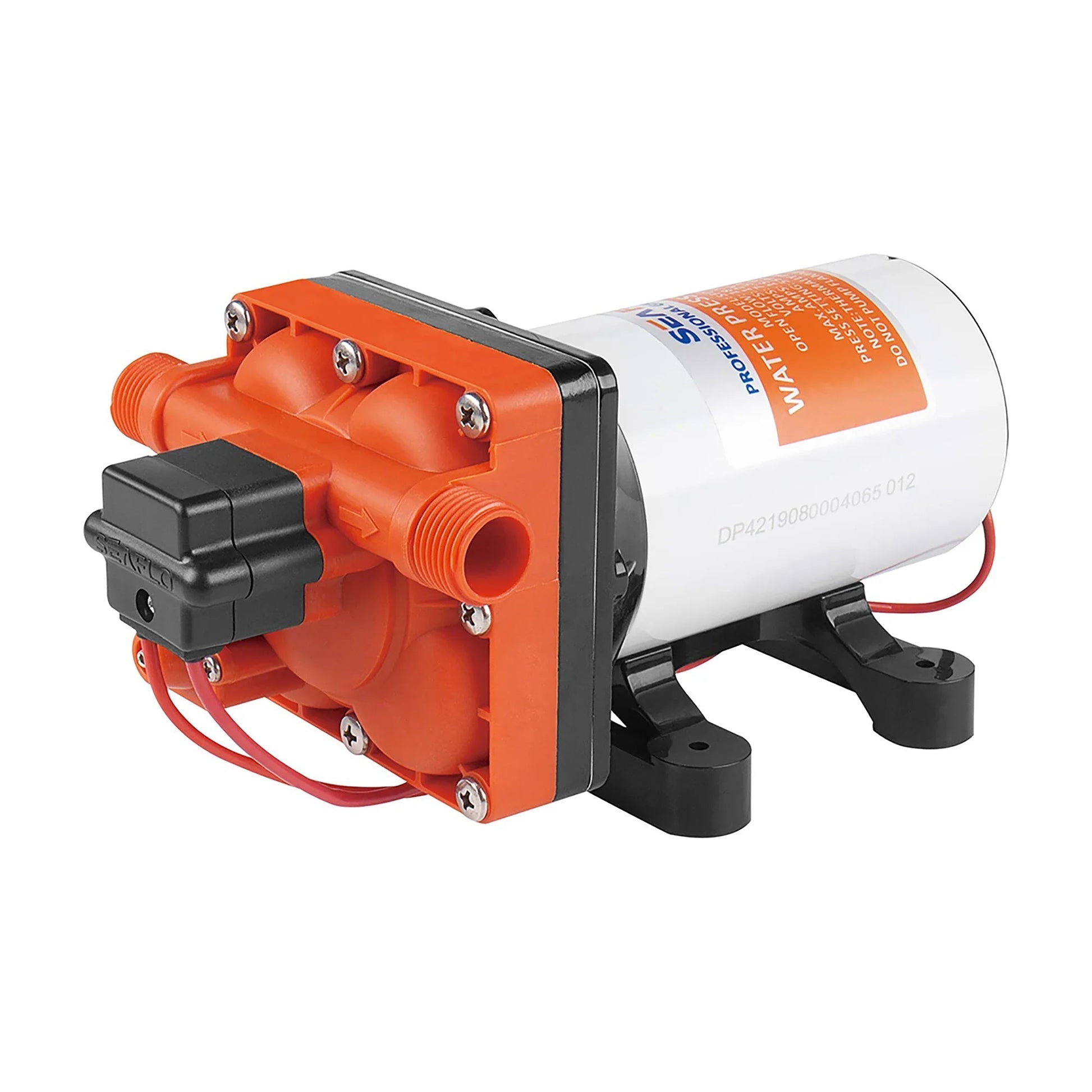

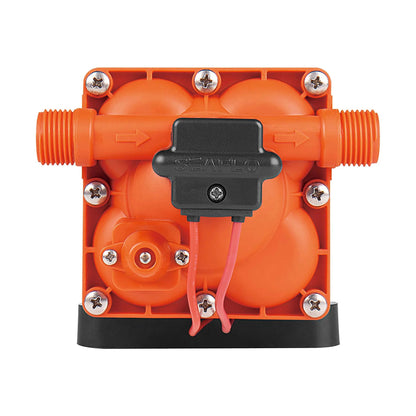

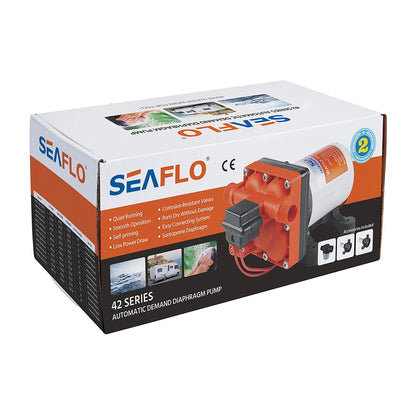

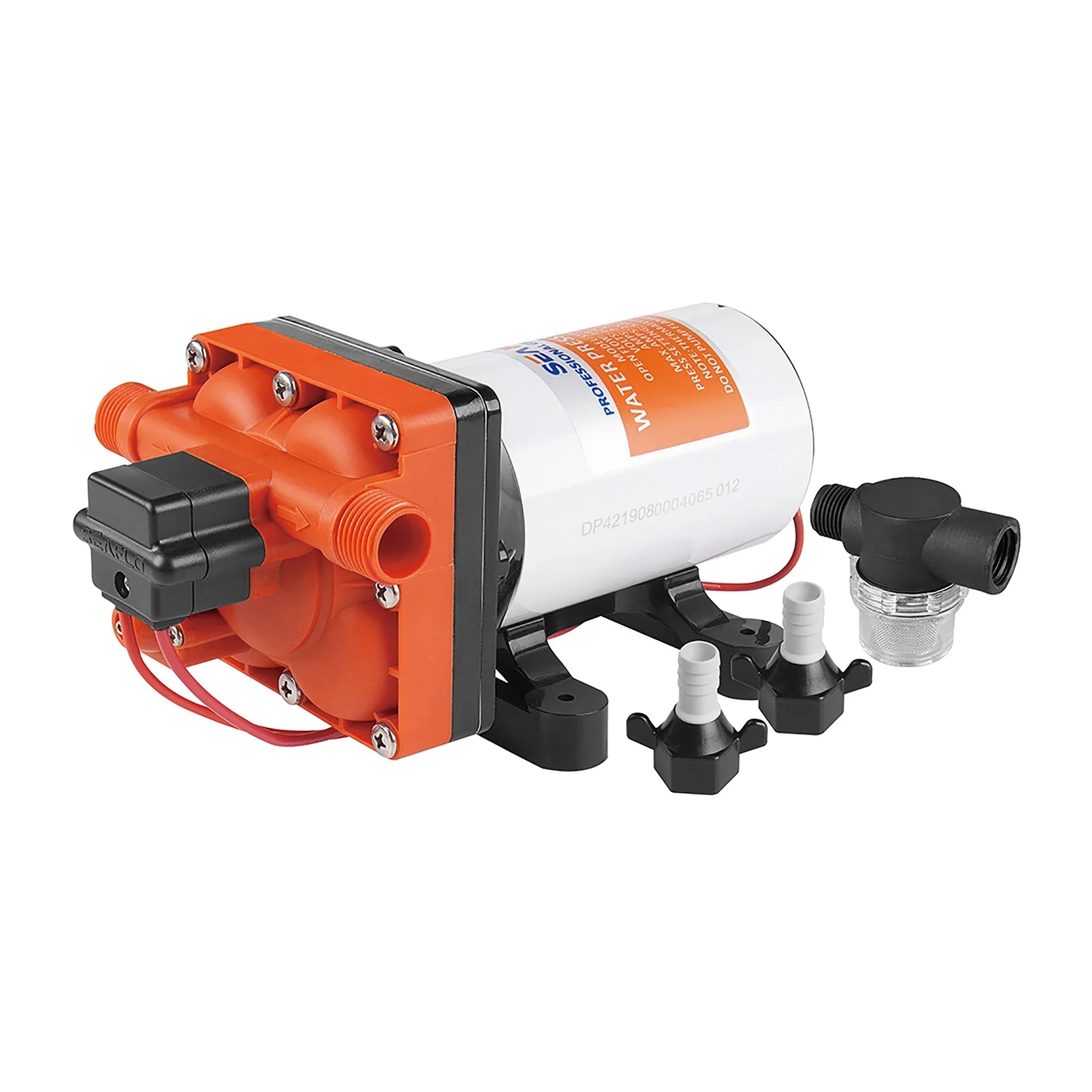

Seaflo Water 42 Series Pump 24V 5.0 LPM | 4Boats

Seaflo Water 42 Series 24V water pressure pump — self-priming, run-dry safe and thermally protected for marine use.

• The water pressure pump - 42 Series has: a 4-chamber diaphragm pump and an on-demand, long-life, adjustable pressure switch
• Flow: 5.0 LPM (1.32 GPM)
• Shut-off pressure: 55 PSI; Cut-in pressure: 41 PSI ±5 PSI (0.3 bar)
• Temperature limit: 60°C (140°F)
• Valves: EPDM; Diaphragm: Santoprene; Inlet/Outlet Ports: 1/2"-14 MNPT
• Internal bypass technology reduces cycling; industry-standard mounting pattern
• Quiet operation with rubber mounting base; marine-grade sealed wiring harness and thermal overload protection
• Meets RoHS, SGS and ISO standards; 4-year warranty

Compact, reliable and suited to onboard freshwater systems — galley, head and general water supply — where quiet, low-maintenance performance is required.
