Description
Description

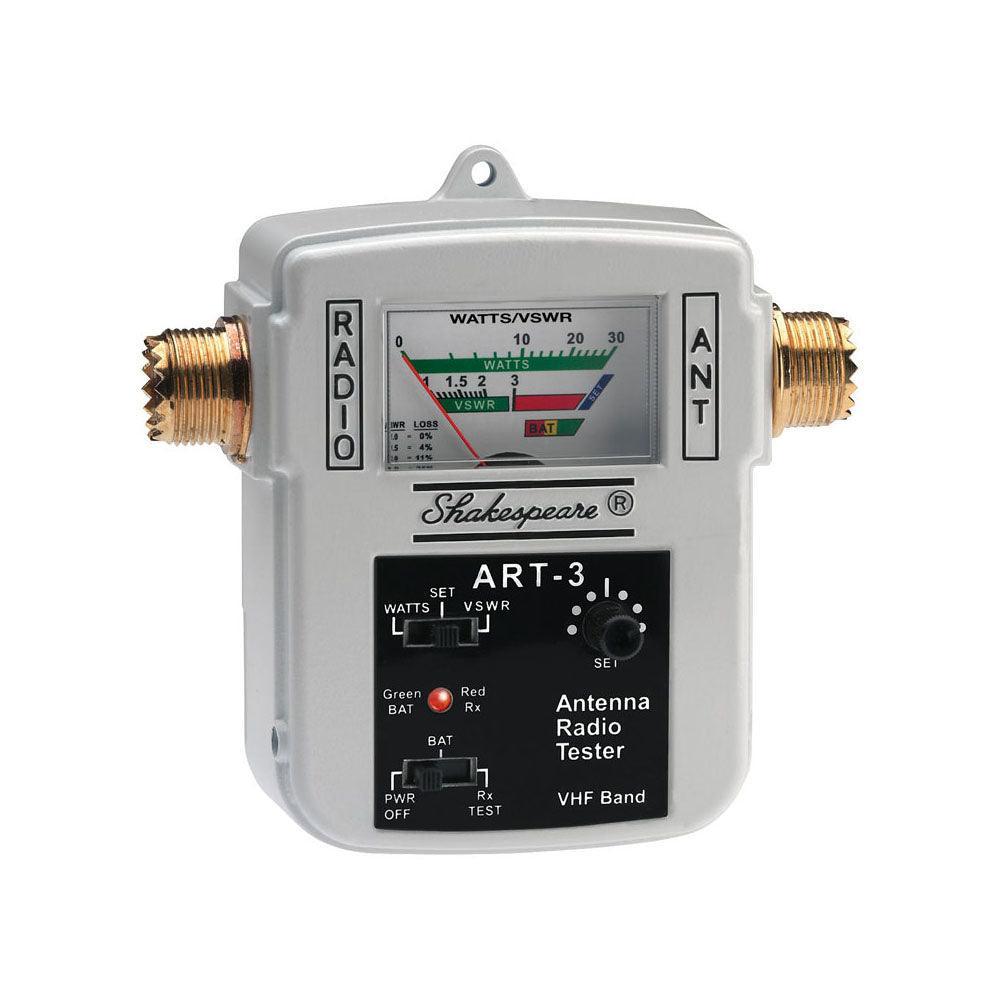

The Shakespeare ART-3 provides a quick and easy way to check VHF antenna installations and test VHF radio receivers aboard your vessel.
- Frequency range: 155-158 MHz
- RF power scale: 0-30 watts
- Impedance: 50 ohms
- Accuracy: ±10%
- Connectors: SO-239
- Signal generator: 3 kHz deviation; tone 1,000 Hz
- RF level: approx. -115 dBm
- Power: internal battery or ship's 12 VDC (supplied cable); Style 4079 1 m cable available (sold separately)
Connect the ART-3 in‑line with the antenna, calibrate the meter and read VSWR; use Channel 72 tone to verify the receiver and check battery level with the flip switch.
