Steca Solarix PA Link1 parallel switch box for 4 inverters | 4Boats

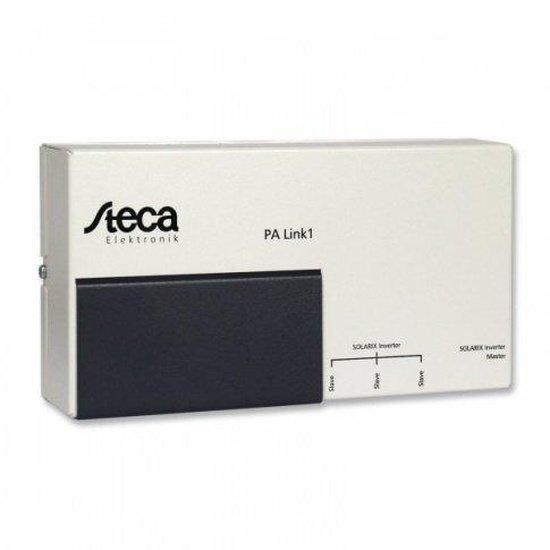

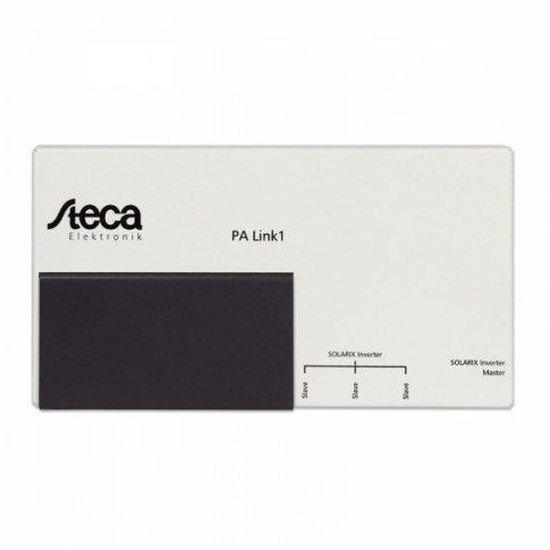

PA Link1 (PALINK1) parallel switch box to combine the AC output of up to four Steca Solarix PI inverters for greater total power and improved system efficiency.

• Connect up to four identical Steca Solarix PI inverters in parallel (one master + up to three slaves) to combine maximum AC output.
• Maximum system efficiency: intelligent functions minimise power consumption by engaging only the master inverter for low loads and activating slaves as required.
• Compatibility: designed for use with up to four Steca Solarix PI inverters (e.g. PI 500‑12, PI 1100‑24, PI 1500‑48); ensure identical inverter models are connected to the same switch box.
• Connections: 4 data inputs (RJ45) for Steca Solarix PI inverters. Input: 230 V AC or 115 V AC. Output: 230 V AC or 115 V AC.
• Additional items: includes 2 x 0.5 m cables for connection to the master inverter and other units.
• Operating temperature: 0 °C to +50 °C. Enclosure: IP20. Size: 196 x 106 x 52 mm (7.72 x 4.17 x 2.Ø 5 in). Weight: 0.8 kg (1.76 lb).
• This product is covered by a 5 year warranty and the following document is available to download: User Manual for Steca Solarix PALINK1 parallel switch box.
• Easy power upgrades: add additional inverters rather than replacing the existing inverter to increase system output.

Ideal for off‑grid and marine installations. For safe and reliable operation, install identical Steca Solarix PI inverter models and follow the PALINK1 user manual and local electrical regulations.
