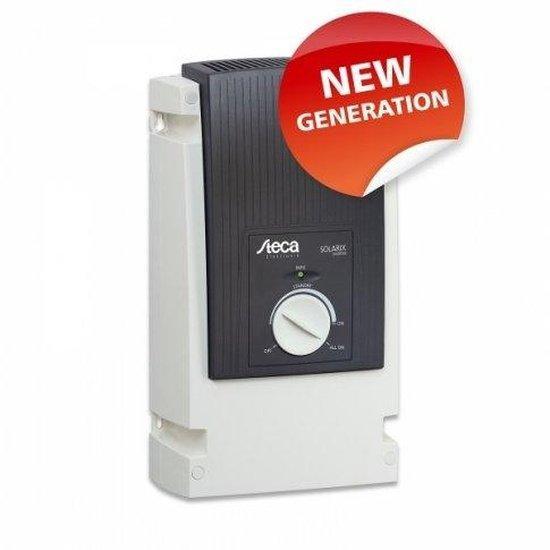

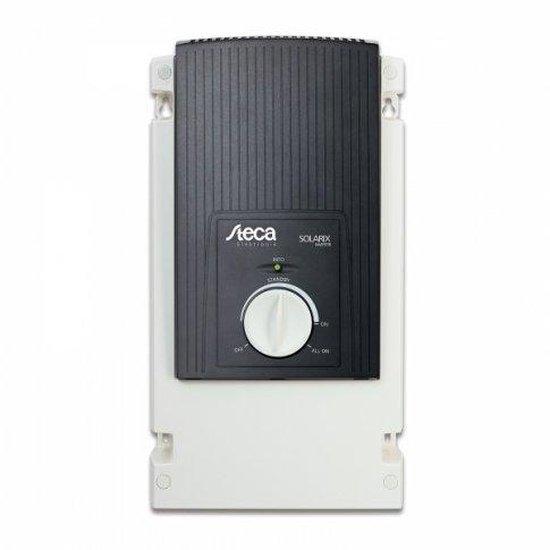

Steca Solarix PI500-48 900VA 48V sine wave inverter 230V | 4Boats

Steca Solarix PI500‑48 900 VA 48 V pure sine wave inverter delivering reliable 230 V AC power for off‑grid, marine and mobile systems with German engineering and a 5‑year warranty.

• Please refer to the following table: Table of typical power consumption of domestic appliances — Click on the Details.
• Inverter specifications: Continuous power: 900 VA; Surge power: 1500 VA (30 mins) / 2800 VA (5 s).
• Input voltage: 42–64 V DC; Output: 230 V AC; Output frequency: 50 Hz; Output waveform: pure sine wave.
• Peak efficiency: 94%; Self‑consumption: 0.7 W (standby), 10 W (in use); Operating temperature: 0 °C - 40 °C.
• Parallel connection: AC‑side parallelable up to four units using the Steca PA Link parallel switch box (sold separately) — expand nominal power 900 VA → 1800 VA → 2700 VA → 3600 VA.
• Protections: over‑discharge, overload, short‑circuit, over‑temperature and reverse polarity; multi‑coloured LED status indicator and automatic fan for quiet cooling.
• Physical / installation: Cable lengths 1.5 m (4.9 ft) for battery and AC cables; Enclosure IP20; Size 212 x 395 x 130 mm (8.35 x 15.55 x 5.12 in); Weight: see Product Datasheet.
• Manufactured in Germany and supported by a 5‑year warranty; sleep‑mode personalisation minimises energy loss for long‑term efficiency.

Compatible with 48 V battery banks and can be used alongside other 48 V solar charging systems; download the Product Datasheet for Steca Solarix PI500‑48 900 VA 48 V pure sine wave power inverter for more technical details and installation guidance.
