Steca Tarom 60A M-Type Dual MPPT Solar Controller (12/24/48V) | 4Boats

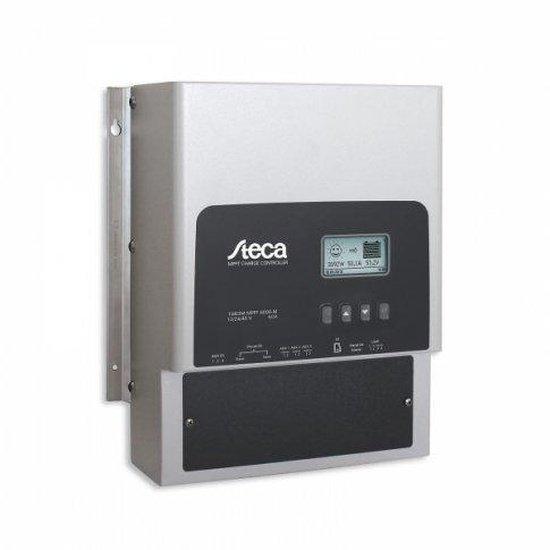

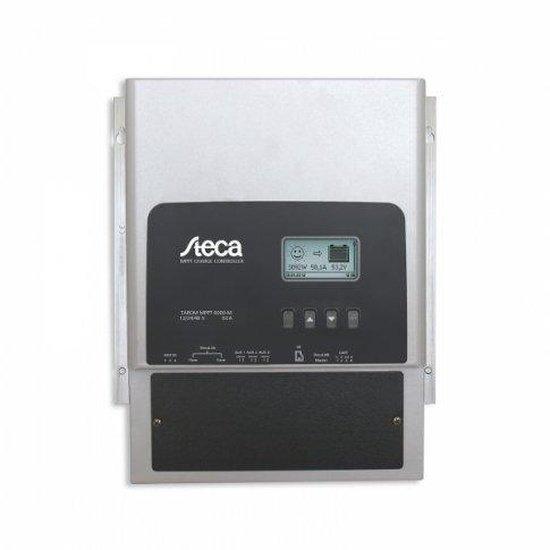

Steca Tarom 60 A M-Type MPPT charge controller with two independent MPP trackers, engineered for reliable off-grid battery charging and scalable system expansion.

• Two independent MPP trackers and two solar inputs — can manage two different module arrays.
• Includes protection against: overload, short circuit, high voltage, reverse polarity, high temperature and lightning (surge) protection.
• Controller specifications: Nominal battery voltage: 12/24/48 V; Rated charging current: 60 A; dual MPPT solar input.
• Max. DC-DC efficiency: 99.4% (Ubatt = 48 V); MPP efficiency: 99.9% (static), 99.8% (dynamic).
• Minimum voltage to operate: 9.5 V; Self-consumption: not specified in source — see datasheet for exact value. Compatible with lead-acid, lithium-ion and NiCd batteries with programmable charging profiles.
• Extremely high reliability with an integrated self-test function and a long 5 year warranty; intelligent synchronisation maintains stable voltage regardless of varying cable lengths.
• Working temperature: -25°C to +50°C; Enclosure: IP31 (indoor); Size: 294 x 335 x 130 mm; Weight: 6 kg (13.2 lb).
• Graphical LCD display and automatic data logging for 20 years with MicroSD slot. Downloadable documents: Data sheet for Steca Tarom 60 A MPPT solar controller (M-Type) and Instruction manual available.

Suitable for off-grid boats and remote installations; mount indoors and follow the instruction manual for correct installation, earthing and cable sizing.
