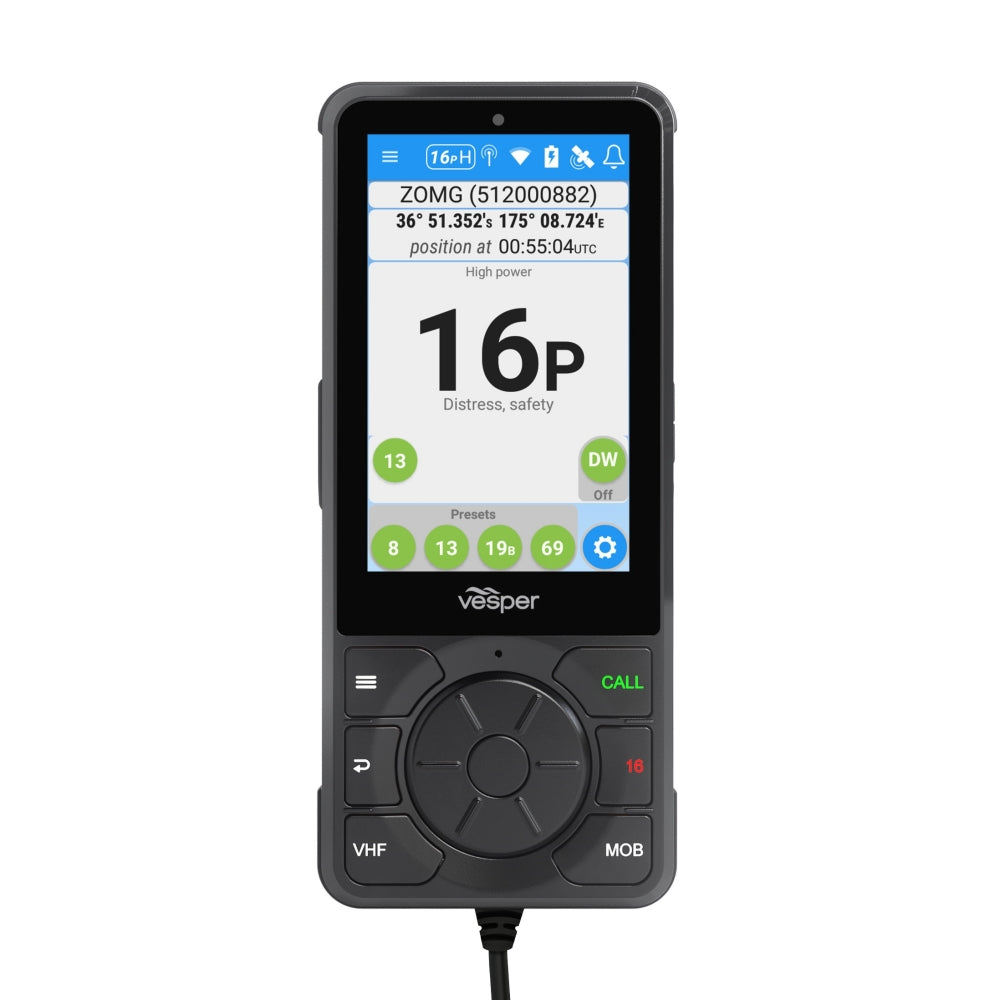

H1 wired handset for Cortex V1 and VHF‑ready Cortex M1 hubs, featuring a 10 cm (4″) touchscreen, bulkhead connector and rugged wet‑marine construction. See the Cortex Accessories collection or the hub product pages: Cortex V1 hub and Cortex M1 (VHF‑ready) hub.

• Add additional H1 handsets to a Cortex V1 or VHF‑ready Cortex M1 hub

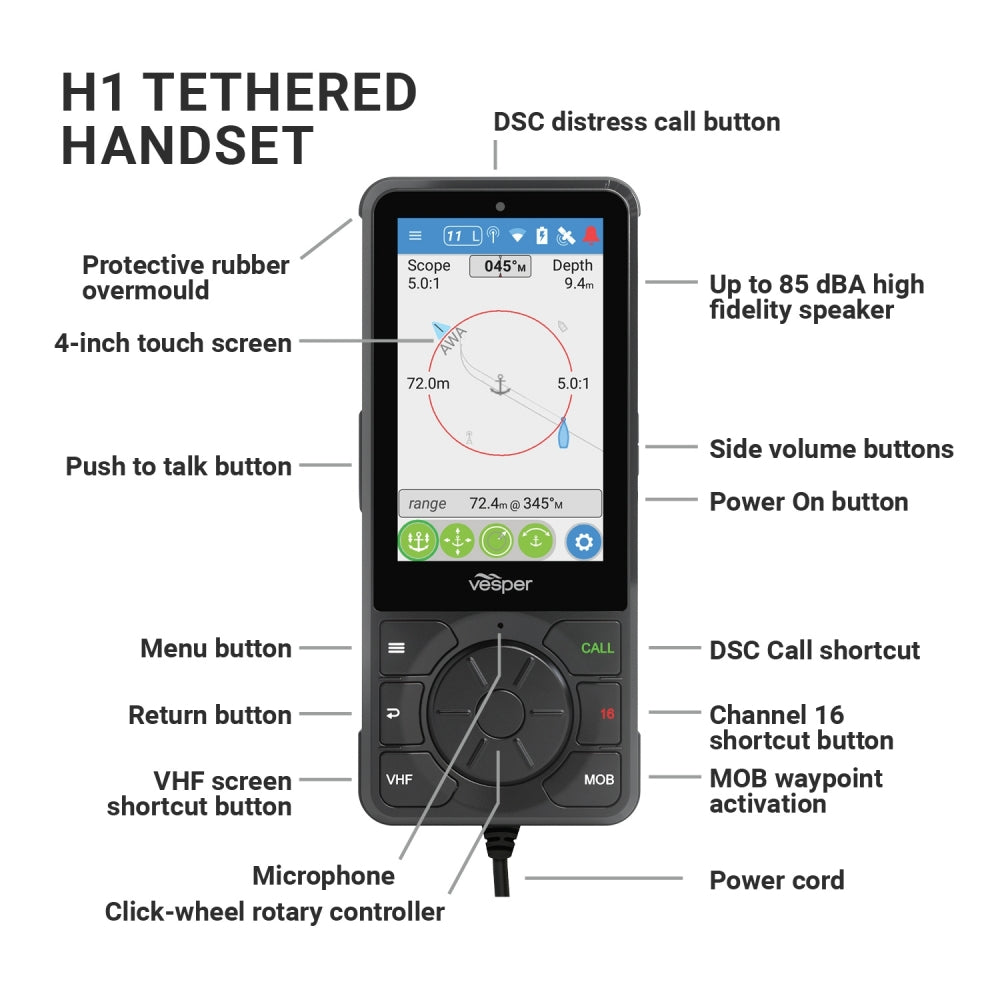

• 10 cm (4″) touchscreen with click‑wheel and dedicated select keys for one‑hand operation
• High‑fidelity speaker delivering up to 85 dBA for clear VHF communication
• Tap the AIS boat symbol to initiate DSC direct calls quickly (DSC/AIS compatible)
• Wired connection to the hub via a waterproof bulkhead connector for secure installation
• Rugged, wet‑marine case designed for exposed installations
• Cable: 2 m (6.6 ft) bulkhead cable with integrated strain relief; custom lengths available
• Ingress protection: IP66 (splash and hose‑resistant) for exposed deck installations
• Connector: waterproof multi‑pin bulkhead connector with mounting gasket (bulkhead mount hardware included)
• Operating temperature: -20°C to +60°C (-4°F to +140°F)
• Dimensions: approx. 120 × 70 × 35 mm (4.7″ × 2.8″ × 1.4″); Weight: ~220 g (0.49 lb)
• Power: powered from Cortex hub (low standby draw; transmit current depends on hub configuration)
• Part number: H1‑HANDSET; limited 2‑year warranty
