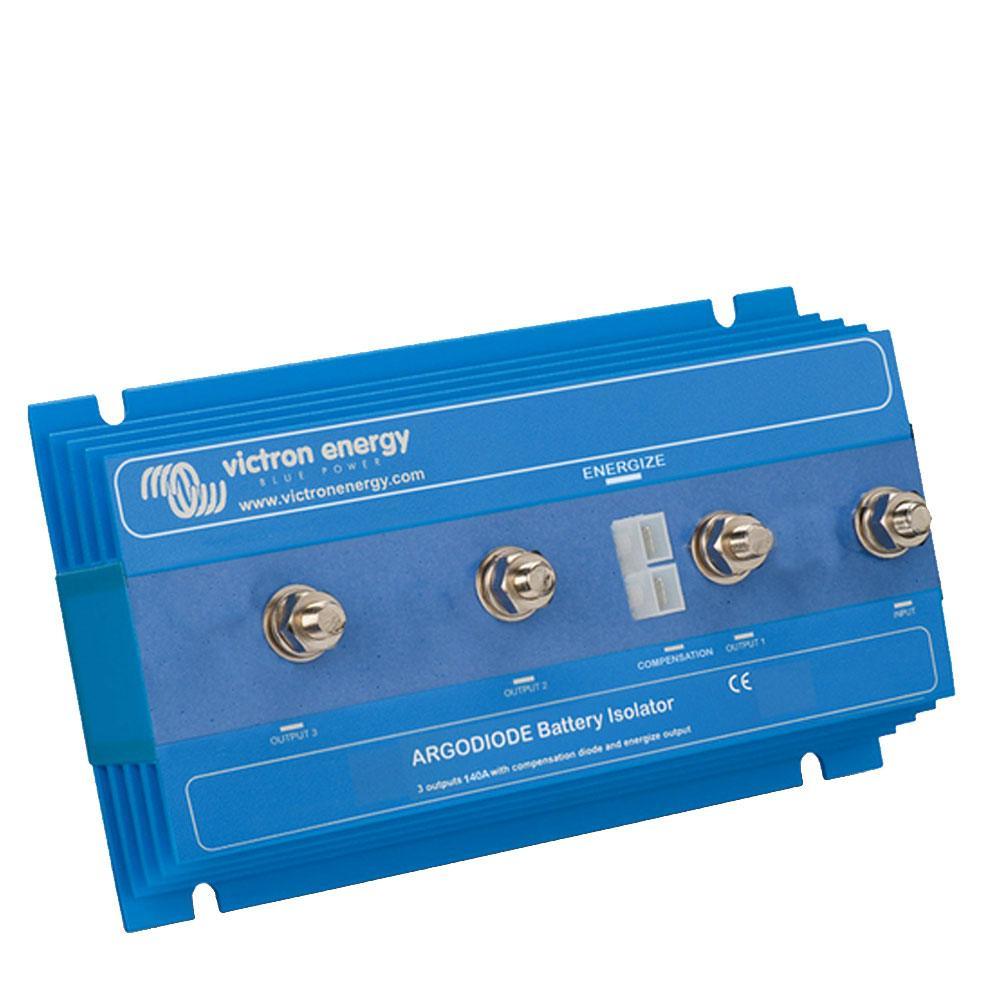

Victron Argo Diode 140-3AC provides reliable three-battery splitting with low voltage drop and a dedicated alternator energize input for marine installations.

• Maximum charge current: 140 A
• Maximum alternator current: 140 A
• Number of batteries: 3
• Connections: M8 studs; energize connection: 6.3 mm Faston
• Low voltage drop (Schottky diodes): ~0.3 V at low current; ~0.45 V at rated output
• Compensation diode offsets diode voltage drop
• Alternator energize input: current-limited DC to B+ to assist alternator start with run/stop switches
• Dimensions: H60 x W120 x D150 mm (2.36 × 4.72 × 5.91 in)
• Weight: 1.1 kg (2.4 lb)
• Warranty: 5 years

Installing an isolator can slightly reduce charge voltage; follow Victron installation guidance or seek specialist advice to avoid undercharging. Check alternator compatibility and wiring during installation.
