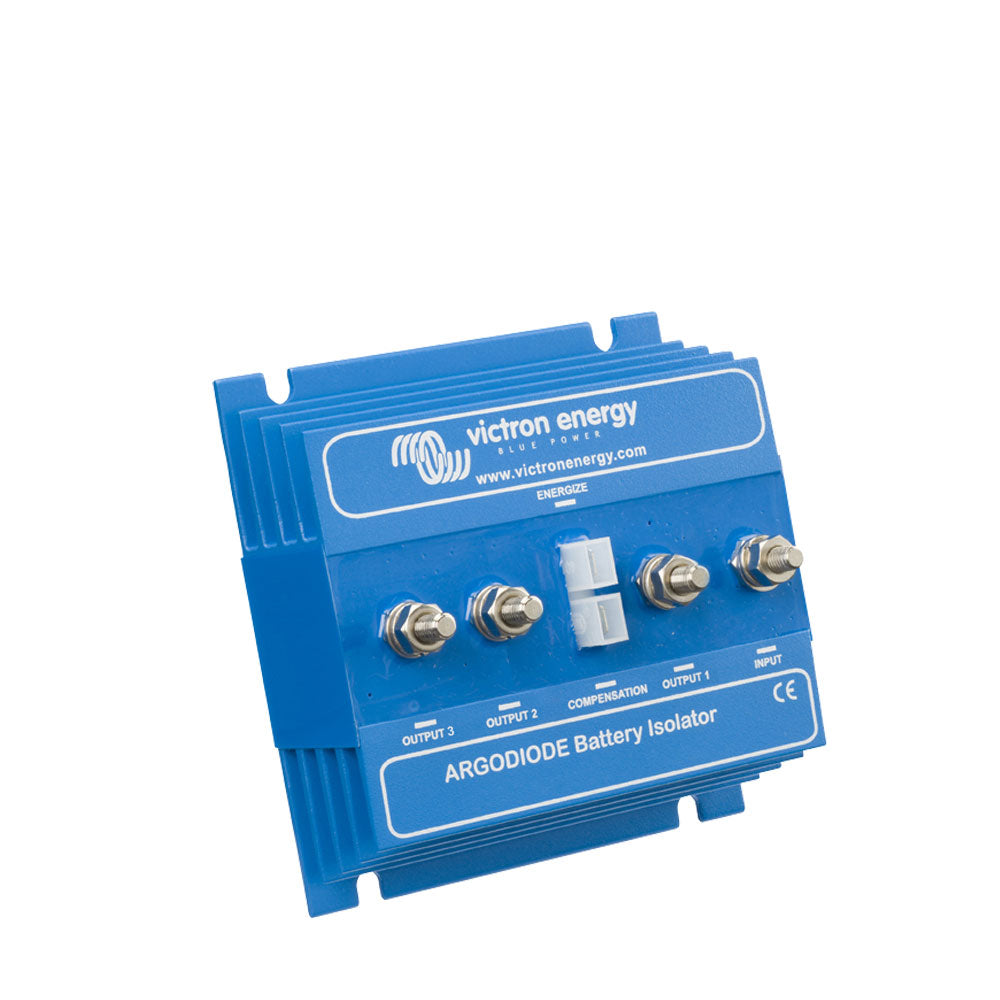

Victron Argodiode Argodiode Argodiode 100 | 3AC 3 | battery i | 4Boats

Victron Argodiode 100-3AC diode isolator for three-battery systems, offering reliable charging separation with low voltage drop.

• Maximum Charge Current: 100 A; Maximum Alternator Current: 100 A; Number of batteries: 3
• Alternator energize input: Yes (current-limited energise input for AC models)
• Connection: M6 studs; compensation diode & energize connection: 6.3 mm Faston
• Schottky diode voltage drop: ≈0.3 V at low current, ≈0.45 V at rated output; compensation diode raises alternator output
• Dimensions: H60 × W120 × D115 mm (H2.36 × W4.72 × D4.53 in); Weight: 0.8 kg (1.76 lb)
• Warranty: 5 years
• Layout/CSS attributes: justify-content: flex-start; display: flex; flex-direction: column; background-position: left top; background-size: cover; background-repeat: no-repeat; background-attachment: scroll; border-style: none; border-width: 1px; border-radius: 0px; margin: 0px 0px 10px; padding: 10px; margin: 0px; padding: 0px

Please consult Victron Energy's Energy Unlimited documentation or a specialist before installation: diode isolators reduce charge voltage and some alternators require an energise input to start charging.

Victron Argodiode 100-3AC diode isolator for three-battery systems, offering reliable charging separation with low voltage drop.

• Maximum Charge Current: 100 A; Maximum Alternator Current: 100 A; Number of batteries: 3
• Alternator energize input: Yes (current-limited energise input for AC models)
• Connection: M6 studs; compensation diode & energize connection: 6.3 mm Faston
• Schottky diode voltage drop: ≈0.3 V at low current, ≈0.45 V at rated output; compensation diode raises alternator output
• Dimensions: H60 × W120 × D115 mm (H2.36 × W4.72 × D4.53 in); Weight: 0.8 kg (1.76 lb)
• Warranty: 5 years
• Layout/CSS attributes: justify-content: flex-start; display: flex; flex-direction: column; background-position: left top; background-size: cover; background-repeat: no-repeat; background-attachment: scroll; border-style: none; border-width: 1px; border-radius: 0px; margin: 0px 0px 10px; padding: 10px; margin: 0px; padding: 0px

Please consult Victron Energy's Energy Unlimited documentation or a specialist before installation: diode isolators reduce charge voltage and some alternators require an energise input to start charging.
