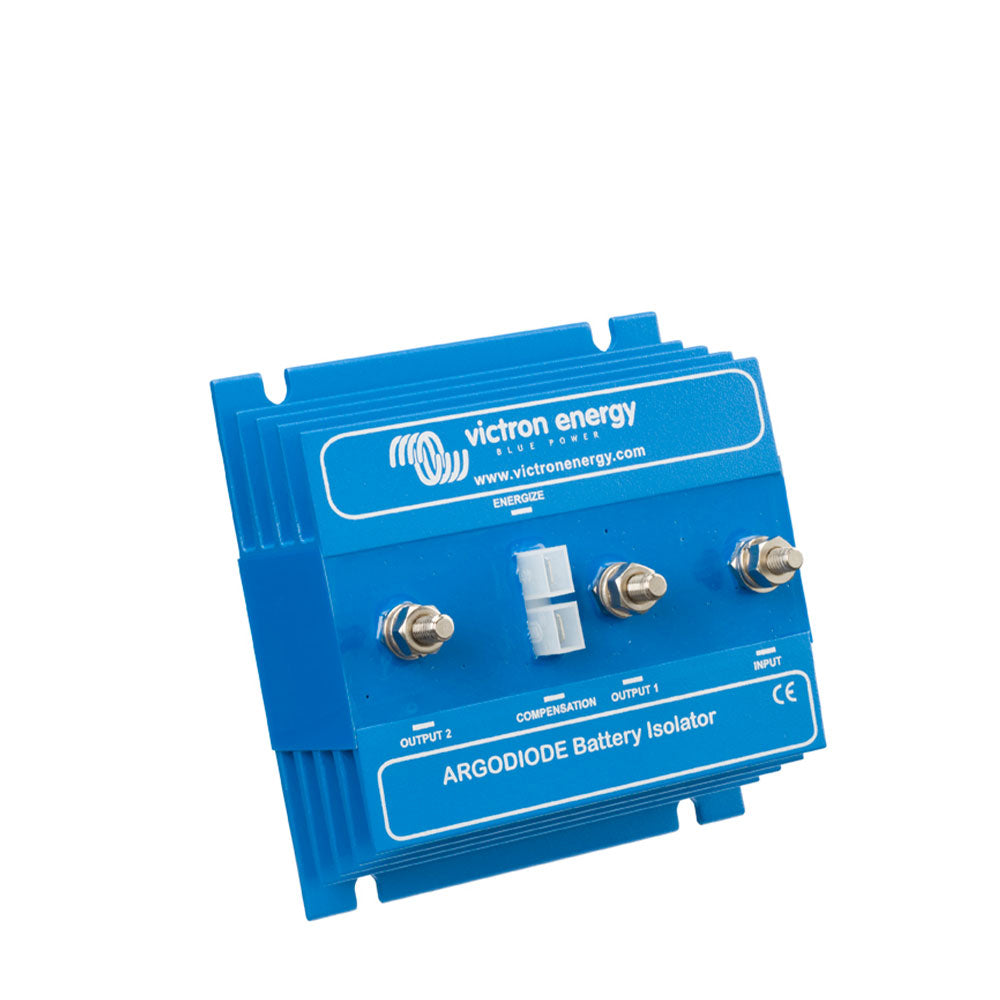

Victron Argodiode Argodiode Argodiode 80 | 2AC 80A Dual | Bat | 4Boats

Argodiode 80-2AC 80A diode isolator for two batteries, featuring Schottky diodes for low voltage drop and an alternator energize input for alternators that require DC to start.

• Maximum charge current: 80 A
• Maximum alternator current: 80 A
• Number of batteries: 2
• Alternator energize input: Yes
• Connections: M6 studs; compensation diode & energize connection: 6.3 mm Faston
• Voltage drop (Schottky): approx. 0.3 V (low current), approx. 0.45 V (rated)
• Dimensions: H 60 × W 120 × D 90 mm
• Weight: 0.6 kg
• Warranty: 5 years

Alternator energize input powers B+ for alternators that require DC to start; this may slightly reduce the measured charge voltage - consult your alternator or the product manufacturer for guidance.
