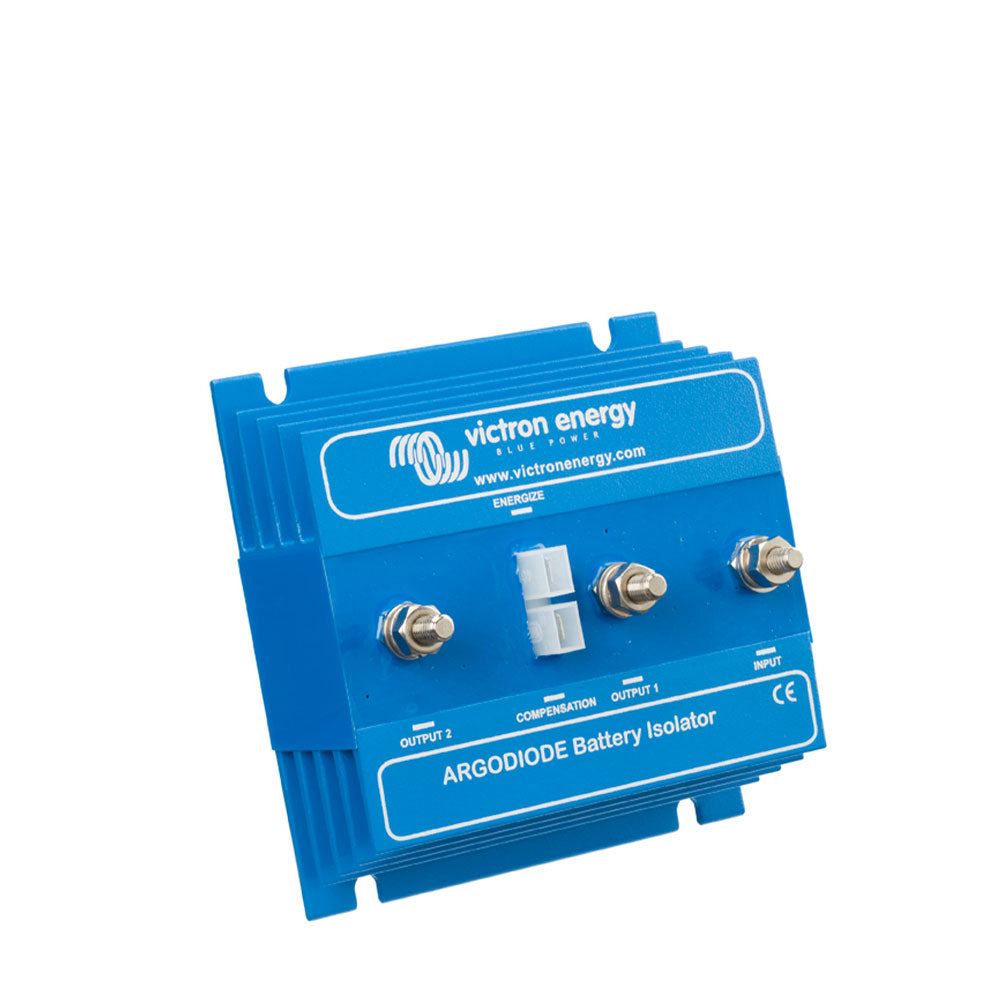

Victron Argodiode Argodiode Argodiode 80 | 2SC 80A 2 | Batter | 4Boats

Victron Argodiode 80-2SC is an 80 A 2-battery diode isolator that splits alternator output between two battery banks, preventing backfeeding while enabling simultaneous charging. Also described as a split-charge or alternator battery isolator.

• Maximum charge current: 80 A; maximum alternator current: 80 A
• Batteries supported: 2; alternator energize input: No
• Connections: M6 studs; compensation diode and energize connection: 6.3 mm Faston
• Dimensions: H 60 x W 120 x D 75 mm (2.36 × 4.72 × 2.95 in)
• Weight: 0.5 kg (1.10 lb); warranty: 5 years
• Low voltage drop (Schottky diodes): approx. 0.3 V at low current; approx. 0.45 V at rated output

Installing an isolator will slightly reduce charge voltage; consult Victron Energy’s 'Energy Unlimited' guide or a qualified installer to ensure batteries reach full charge.

Victron Argodiode 80-2SC is an 80 A 2-battery diode isolator that splits alternator output between two battery banks, preventing backfeeding while enabling simultaneous charging. Also described as a split-charge or alternator battery isolator.

• Maximum charge current: 80 A; maximum alternator current: 80 A
• Batteries supported: 2; alternator energize input: No
• Connections: M6 studs; compensation diode and energize connection: 6.3 mm Faston
• Dimensions: H 60 x W 120 x D 75 mm (2.36 × 4.72 × 2.95 in)
• Weight: 0.5 kg (1.10 lb); warranty: 5 years
• Low voltage drop (Schottky diodes): approx. 0.3 V at low current; approx. 0.45 V at rated output

Installing an isolator will slightly reduce charge voltage; consult Victron Energy’s 'Energy Unlimited' guide or a qualified installer to ensure batteries reach full charge.
