Victron Battery Battery Battery BMV | 712 Smart Battery Monit | 4Boats

Victron Battery Battery Battery BMV | 712 Smart Battery Monit | 4Boats

4Boats

£185.44
£185.44
Sale Sold out
Shipping calculated at checkout.

Description

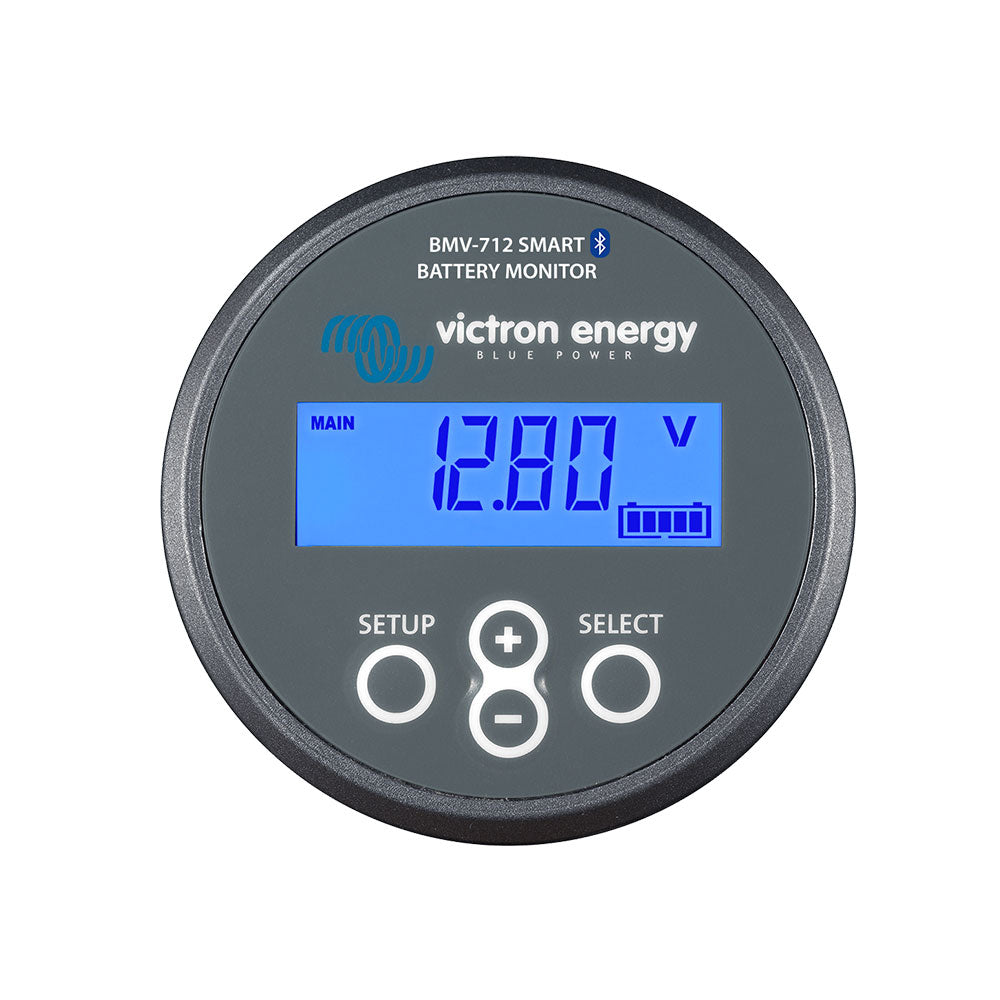

The BMV-712 Smart battery monitor provides precise state-of-charge, voltage, current and time-to-go data and features integrated Bluetooth for wireless monitoring and configuration.

  • Supply voltage: 6.5-70 VDC
  • Battery capacity: 1-9,999 Ah
  • Temperature sensor: optional
  • Communication port: VE.Direct
  • Protection: IP55
  • Front bezel: 69 × 69 mm (2.72 × 2.72 in)
  • Body diameter × depth: 52 × 31 mm (2.05 × 1.22 in)
  • Warranty: 5 years
  • Bluetooth inside for app monitoring, configuration and firmware updates
  • Includes shunt connection via standard RJ12 telephone cable; supplied RJ12 cable 10 m (32.8 ft) and battery cable with fuse 2 m (6.6 ft)
  • Very low current draw: 0.7 Ah/month (1 mA) @ 12 V; 0.6 Ah/month (0.8 mA) @ 24 V
  • Easy installation: quick-connect PCB on the shunt, shunt-to-monitor RJ12 link, separate bezels, securing ring and mounting screws included
  • Midpoint voltage monitoring and the optional Battery Balancer help protect series-connected banks

Use the Victron Bluetooth app to monitor data, adjust settings and update firmware.

The BMV-712 Smart battery monitor provides precise state-of-charge, voltage, current and time-to-go data and features integrated Bluetooth for wireless monitoring and configuration.

  • Supply voltage: 6.5-70 VDC
  • Battery capacity: 1-9,999 Ah
  • Temperature sensor: optional
  • Communication port: VE.Direct
  • Protection: IP55
  • Front bezel: 69 × 69 mm (2.72 × 2.72 in)
  • Body diameter × depth: 52 × 31 mm (2.05 × 1.22 in)
  • Warranty: 5 years
  • Bluetooth inside for app monitoring, configuration and firmware updates
  • Includes shunt connection via standard RJ12 telephone cable; supplied RJ12 cable 10 m (32.8 ft) and battery cable with fuse 2 m (6.6 ft)
  • Very low current draw: 0.7 Ah/month (1 mA) @ 12 V; 0.6 Ah/month (0.8 mA) @ 24 V
  • Easy installation: quick-connect PCB on the shunt, shunt-to-monitor RJ12 link, separate bezels, securing ring and mounting screws included
  • Midpoint voltage monitoring and the optional Battery Balancer help protect series-connected banks

Use the Victron Bluetooth app to monitor data, adjust settings and update firmware.

View full details
